Laser Diode Controllers/Drivers

Our laser drivers/controllers are designed for driving laser diodes with high stability, low noise, and/or high power efficiency. These are some of the functions diode laser drivers provide: laser current setting and monitoring, control loop good indication, driving mode indication (for dual mode versions), stand-by, and shut down. Due to their high efficiencies, most of our laser drivers/controllers can work without heat sinks. In addition, our laser drivers/controllers have complete metal shielding, which prevents the laser drivers/controllers and other electronics from interfering from each other. We have a full line of laser drivers/controllers: low noise low current, high efficiency midium current, AC input high current high efficiency, high current short pulsed, etc. The table below shows a list of our laser drivers/controllers. Use our laser driver/controller selection guide below.

Laser Driver/Controller Selection Guide

RoHS Certificate of Compliance for Laser Drivers

Design Notes

How it works - See our videos

High Voltage Constant Current  Laser Driver

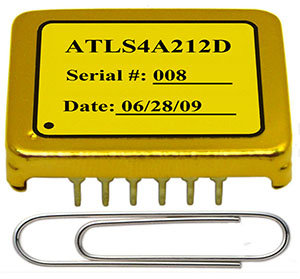

In order to meet the need for driving high voltage diode lasers or driving a serial of diode lasers simultaneously, we have developed ATLSxA212 series laser drivers/controllers: ATLS500MA212, ATLS1A212, ATLS2A212, and ATLS3A212. Their input voltage can be between 4.5V to 15V, the output voltage can be from 1V to (VPS -1V), where VPS is the power supply input voltage. The maximum output voltage can reach 14V when powered by a 15V supply. They have 4 current capability versions, 500mA, 1A, 2A and 3A, and are packed in 2 styles: DIP (Dual In Line) through hole package and SMT (Surface Mount Technology) package. The former has the part number with a suffix "D", for the latter the suffix is "S". For example: ATLS2A212D or ATLS2A212S. The main features are: high efficiency, high output power, small size, high current stability, low output noise, and wide modulation bandwidth. These controllers can be evaluated conveniently by using their evaluation board, ATLS212EV1.0. Since these series laser drivers can output high power and the high power lasers are often costly. In order to avoid making costly mistakes when evaluating this series of laser controllers, we have also developed a load assembly that can be used to emulate the expensive laser diodes for evaluating the laser controllers.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS500MA212 Laser Drivers ATLS500MA212D 6 buy now buy now
ATLS1A212 Laser Drivers ATLS1A212D 11 buy now buy now
ATLS2A212 Laser Drivers ATLS2A212D 24 buy now buy now
ATLS3A212 Laser Drivers ATLS3A212D 23 buy now buy now
ATLS212DLD1.0 Laser Drivers ATLS212DLD1.0 1 buy now buy now
ATLS212EV1.0 Laser Drivers ATLS212EV1.0 8 buy now buy now

High Voltage Constant Current  Laser Driver

To better meet the requirements for driving a series of laser diodes with high voltage and constant current, ATLSXA214 series laser drivers/controllers are developed: ATLS4A214 and ATLS6A214. The wide output voltage range allows driving one or more multiple serial laser diodes at the same time, for up to 4A, 6A well controlled current at high efficiency.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS4A214 Laser Drivers ATLS4A214 11 buy now buy now
ATLS6A214 Laser Drivers ATLS6A214 4 buy now buy now
ATLS214EV1.0 Laser Drivers ATLS214EV1 3 buy now smtzone

High Voltage Constant Current  Laser Driver

High voltage and constant current ATLSXA216 series laser drivers/controllers are developed: ATLS12A216, ATLS10A216 and ATLS8A216. The wide output voltage range allows driving one or more multiple serial laser diodes at the same time, for up to, 8A, 10A well controlled current at high efficiency.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS8A216 Laser Drivers ATLS1A212D 5 buy now buy now
ATLS10A216 Laser Drivers ATLS2A212D 4 buy now buy now
ATLS12A216 Laser Drivers ATLS12A216D 0 buy now buy now
ATLS216EV1.0 Laser Drivers ATLS2A212D 2 buy now smtzone

High

Voltage Constant Current  Laser Driver

This laser driver, ATLS4A217, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVp-p ripple voltage at 700kHz), wide modulation bandwidth, and small size. The wide output voltage range, 2.8V ~ 22V, allows driving one or multiple serial laser diodes at the same time, for up to 4A well controlled current at high efficiency. The extremely low noise between DC ~ 10kHz and low DC current drift make it ideal for driving diode pumped single mode laser diodes to achieve mode-hop-free and narrow optical wavelength drift, thus, long coherent length. Because of the high efficiency, the laser driver generates small amount of heat, thus, no heat sink is necessary for normal operation. The fully shielded case blocks all the incoming and outgoing EMIs (Electro- Magnet Interferences).

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS4A217 Laser Drivers ATLS1A212D 3 buy now buy now

Laser Driver Load Assembly

Load assembly is designed to emulate laser diodes for evaluating laser drivers. These laser drivers can be used to drive one or multiple laser diodes with high efficiency and low noise for DPSSL, EDFA, or fiber laser applications. They accept wide range input voltage and their output voltage can be from 0V to almost the same as the input voltage. The size is very small, but can output high current, high voltage, thus high output power. In addition, these laser drivers have low output noise (except that there is a 500kHz 4mVp-p ripple voltage at the output) and wide modulation bandwidth. This laser load assembly can be used with this evaluation board, or be used alone, as a dummy laser load, to emulate one or multiple laser diodes.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS212DLD1.0 Laser Drivers ATLS212DLD1.0 3 buy nowbuy now
ALLD10A14V Laser Drivers ALLD10A14V 2 buy now buy now

High Efficiency AC Input Laser Driver/Controller

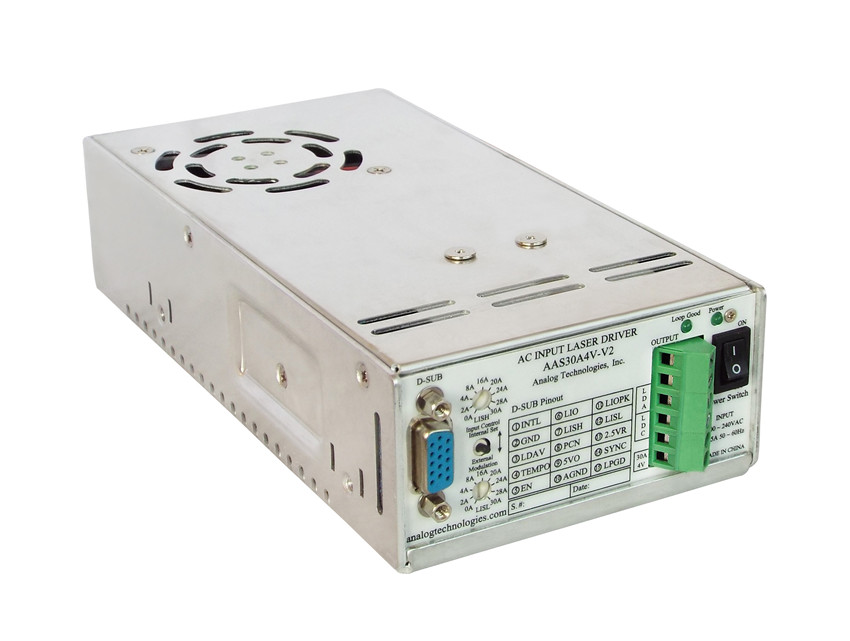

This series laser driver/controller is designed for driving diode lasers with low noise current at high efficiency, > 76%. The output current of laser drivers/controllers can be set either by an analog voltage ranges from 0 to 2.5V or by a potentiometer to from 0 to 20A, 30A, 40, 45A. All our laser driver/controllers are of 100 % lead (Pb)-free and RoHS compliant. More detail technical and application information about this laser driver/controller can be found in the datasheets below.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
AAS8A19V2 Laser Drivers 0 buy now buy now
AAS12A12V Laser Drivers AAS12A12V 0 buy now buy now
AAS16A9.5V Laser Drivers AAS16A9.5V 0 buy now buy now
AAS25A6V2 Laser Drivers AAS25A6V 0 buy now buy now
AAS40A4V2 Laser Drivers AAS40A4V2 1 buy now buy now
AAS45A4V2 Laser Drivers AAS45A4V2 1 Laser Drivers ALLD10A14V buy now

High Current Low Pass Filter

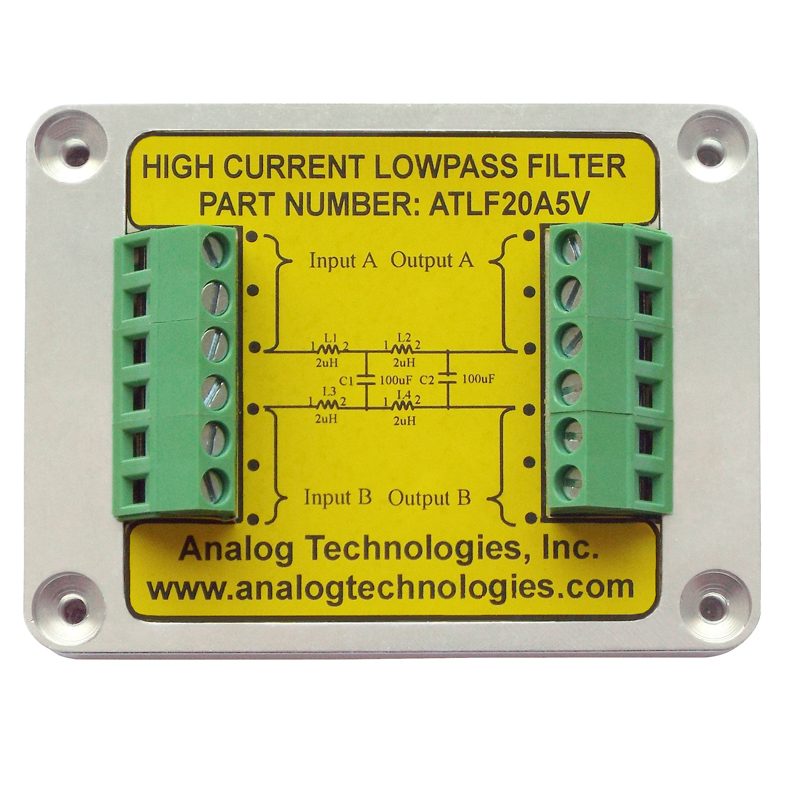

The ATLF20A5V is designed for filtering the ripples of laser driver, the output of which will not be influenced by the filter. The input voltage ranges from 0V to 5V, and the current is from 0A to 20A. It can filter the ripples 10KHz ~ 1MHz of the power supply. It is able to attenuation 70dB, eliminating the negative influences against the output of the laser driver by the power supply.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLF20A5V Low Pass Filter ATLF20A5V 2 buy now buy now

Laser Driver

The ATLSxA106 series laser driver is designed for driving diode lasers with up to 250mA and 500mA extra low noise current.

The output current of the ATLS250MA106 can be set by an input voltage linearly or modulated by an external signal of up to 100 KHz in bandwidth, resulting in a minimum 1.5μS rise and fall times at the output current.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS250MA106 Laser Drivers ATLS250MA106 3 buy now buy now
ATLS500MA106 Laser Drivers ATLS500MA106 5 buy now buy now

The ATLS_XXX_103 Series Ultra Low Noise  Diode Laser Drivers/Controllers

The ATLS_XXX_103 series laser drivers/controllers have ultra low output noise, compact size, and come with current limit protection function. The maximum output current of this diode laser driver can be selected to be: 100mA, 200mA, 250mA, 500mA, and 1A, with the output RMS noise to be: 1.5uA, 2.5uA, 2.5uA, 5uA and 6uA respectively. These laser controllers are of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet with
Pricelist
Stock Status Buy Now
ATLS100MA103D Laser Drivers ATLS100MA103D 44 buy now Buy Now
ATLS100MA103S Laser Drivers ATLS100MA103S 32 buy now Buy Now
ATLS200MA103D Laser Drivers ATLS200MA103D 38 buy now Buy Now
ATLS200MA103S Laser Drivers ATLS200MA103S 6 buy now Buy Now
ATLS250MA103D Laser Drivers ATLS250MA103D 26 buy now Buy Now
ATLS250MA103S Laser Drivers ATLS250MA103S 4 buy now Buy Now
ATLS500MA103D Laser Drivers ATLS500MA103D 30 buy now Buy Now
ATLS500MA103S Laser Drivers ATLS500MA103S 43 buy now Buy Now
ATLS1A103D Laser Drivers ATLS1A103D 59 buy now Buy Now
ATLS1A103S Laser Drivers ATLS1A103S 15 buy now Buy Now

The ATLS_XXX_104 Series Ultra Low Noise  Diode Laser Drivers/Controllers

The ATLS_XXX_104 series laser drivers/controllers have ultra low output noise, compact size, and come with current limit protection function. In case the controller temperature exceeds a preset limit, 120°C, the controller will be shutdown by itself to prevent the controller from being damaged by the over heat.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS100MA104 Laser Drivers ATLS100MA104 5 buy now buy now
ATLS250MA104 Laser Drivers ATLS250MA104 5 buy now buy now
ATLS500MA104 Laser Drivers ATLS500MA104 6 buy now buy now
ATLS1A104 Laser Drivers ATLS1A104 2 buy now buy now
ATLS1.5A104 Laser Drivers ATLS1A104 0 buy now buy now

Evaluation Board for the ATLS_XXX_103 Series Ultra-low Noise Diode Laser Controllers

Evaluation Board for ATLS_XXX_103 Series Diode Laser Drivers/Controllers is designed to evaluate the functions and basic specifications for our extra low noise laser drivers, ATLS100MA103, ATLS200MA103, ATLS250MA103, ATLS500MA103, ATLS1A103 and ATLS500MA104. It comes with a socket that fits for the drivers in the DIP package, i.e., that the ones with the “D” suffix. The evaluation board has a dummy laser formed by a series of regular laser diodes and can be used to emulate how the real laser diode would be driven by the laser driver. The output current and the output current limit can be programmed respectively by the potentiometers mounted on the board. This laser driver evaluation board is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS_XXX_103 Laser Drivers _ATLS_XXX_103 1 buy now buy now
Very Low Noise Diode Laser Controller ATLS1A102 (Not Recommended for New Designs)

Very Low Noise Diode Laser Controller ATLS1A102

The ATLS1A102 is a diode laser driver designed for driving diode lasers with up to 1A low noise current. When powered by a 5V power supply, the output voltage is 1.5V to 4V. This diode laser driver is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS1A102 Laser Drivers _ATLS1A102 60 buy now buy now
ATLS1A102D Laser Drivers _ATLS1A102S 20 buy now buy now
ATLS1A103S Laser Drivers _ATLS1A102S 0 buy now buy now

High Efficiency Constant Current Diode Laser Controller CWD-01-V2-D

The CWD-01-V2-D is designed for driving diode lasers with high efficiency, >90%, and low noise. This diode laser driver can be applied for DPSSL, EDFA, fiber laser, direct diode lasers, etc. It can output up to 2A current without needing a heat sink and is in DIP package. This laser controller is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
CWD-01-V2-D Laser Drivers _CWD-01-V2-D 168 buy now buy now

Constant Current Laser Driver ATLSXA201D

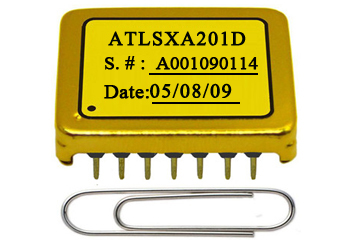

The ATLSxA201D series diode laser drivers are the upgraded drop-in replacements for our CWD-01-V2 laser drivers, except that the starting up time is shorter: 4mS as opposed to 100mS in CWD-01-V2. These diode laser drivers are designed for driving laser diodes with low noise constant current at high efficiency. The "XA" in the part number specifies the maximum output current of the modules, which can be: 500mA, 1A, 2A, 3A, 4A and 6A respectively and the maximum output voltage is up to 2.7V when powered by a 3.3V power supply and 4.2V by a 5V power supply. The module is packed by a 6 sided metal enclosure, emitting zero EMI, and has a DIP mounting package.They are of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS500MA201 Laser Drivers ATLS500MA201D 0 buy now buy now
ATLS1A201 Laser Drivers ATLS1A201D 25 buy now buy now
ATLS2A201 Laser Drivers ATLS2A201D 98 buy now buy now
ATLS3A201 Laser Drivers _CWD-01-V2-D 130 buy now buy now
ATLS4A201 Laser Drivers _ATLS4A201D 107 buy now buy now
ATLS6A201 Laser Drivers _ATLS6A201D 43 buy now buy now

Evaluation Board for Constant Current Laser Driver ATLSXA201D

The evaluation board, ATLS201DEV1.0, is designed to evaluate the ATLSXA201D series diode laser drivers: ATLS500MA201D, ATLS1A201D, ATLS2A201D, ATLS3A201D, ATLS4A201D and ATLS6A201D. The main purpose for using this is to evaluate the laser controllers conveniently. It can set the output current, and comes with an unbreakable dummy laser diode which is formed by a a series of regular diodes. This laser controller evaluation board has a complete application circuit, an LED to indicate the working status of the laser driver, and a fan for dissipating the heat when evaluating a 6A laser driver. This laser controller evaluation board is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS201DEV1.0 Laser Drivers ATLS500MA201D 2 buy now buy now

Constant Current CW Laser Driver ATLSXA202D

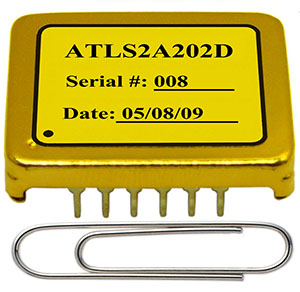

The ATLSxA202D series laser drivers have slightly different pin out as that of ATLSxA201D series laser drivers. This series of laser drivers have a synchronization function pin which allows using an external digital signal to synchronize the internal switching frequency of the PWM output stage. This function is useful when using the laser drivers with a switching power supply that has similar switching frequency or having multiple such laser drivers on the same PCB, to eliminate the beating frequency interference. They are designed for driving laser diodes with low noise constant current at high efficiency. The "xA" in the part number specifies the maximum output current of the laser controller, it can be chosen to be: 500mA, 1A, 2A, 3A, 4A or 6A. The module is packaged in a metal enclosure, emitting zero EMI, and has DIP mounting package. These laser drivers are of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS500MA202 Laser Drivers ATLS500MA202D 24 buy now buy now
ATLS1A202 Laser Drivers ATLS1A202D 19 buy now buy now
ATLS2A202 Laser Drivers ATLS2A202D 92 buy now buy now
ATLS3A202 Laser Drivers LDA1-CP1 37 buy now buy now
ATLS4A202 Laser Drivers LDA1-CP1 113 buy now buy now
ATLS6A202 Laser Drivers ATLS6A202D 50 buy now buy now

Evaluation Board Constant Current Laser Driver ATLSXA202D

The evaluation board, ATLS202DEV1.0, is designed for evaluating the series laser drivers: ATLS500MA202D, ATLS1A202D, ATLS2A202D, ATLS3A202D and ATLS4A202D. The main purpose for using this evluation board is to evaluate the laser drivers conveniently. This laser driver evaluation board comes with an unbreakable dummy laser diode formed by a series of regular diodes. It is has a complete application circuit, has an LED to indicate the woring status of the driver, and a fan for reducing the temperature dummy laser diode when being driven by high current. This laser controller evaluation board is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
ATLS202DEV1.0 Laser Drivers ATLS202DEV1.0 8 buy now buy now

High Efficiency AC Input 70A 5V Laser Driver/Controller

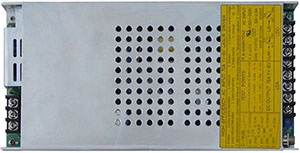

The AAS5V70A2 is an electronic power supply block designed for driving laser diodes with up to 70A low noise current at high efficiency of up to 89%. The output current can be set by an analog voltage of 0 to 2.5V, or a potentiometer, to between 0 and 70A. It is of 100 % lead (Pb)-free and RoHS compliant.

Dual Mode Constant Current and Constant Power Laser Driver LDA1-CP1

The LDA1-CP1 is an electronic module designed for driving P type (PD anode and LD cathode are connected to the laser diode can) diode lasers with well controlled and monitored driving current and output laser power. This laser driver has a PWM (Pulse Width Modulation) output stage, and achieves >90% high power efficiency, eliminating the need for a heat sink. The output current and laser power can be set linearly by two separate input voltages and monitored linearly at the same time by two output voltages respectively. This laser controller comes with a high stability low noise 2.5V reference voltage which can be used to set the output current and the output power, and as voltage references for external ADCs and DACs.This laser driver is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
LDA1-CP1 Laser Drivers LDA1-CP1 1 buy now buy now

Constant Current and Constant Power Laser Driver LDA1-CP2

The LDA1-CP2 is an electronic module designed for driving N type (PD cathode and LD anode are connected to the laser diode can) diode lasers with well controlled and monitored driving current and output laser power. This laser driver has a PWM (Pulse Width Modulation) output stage, and achieves >90% high power efficiency, eliminating the need for a heat sink. The output current and laser power can be set linearly by two separate input voltages and monitored linearly at the same time by two output voltages respectively. This laser controller comes with a high stability low noise 2.5V reference voltage which can be used to set the output current and as voltage references for external ADCs and DACs. It is of 100 % lead (Pb)-free and RoHS compliant.

Part Number Datasheet With
Pricelist
Stock Status Buy Now
LDA1-CP2 Laser Drivers LDA1-CP2 0 buy now buy now
