Laser Driver Selection Guide

Home > Products > Laser Drivers > Laser Driver Selection Guide
Picture Output Stage Type Part Number Eval. Board
Avail.		 Data-
sheet

Unit Price

Qty. Avail.

 Buy
Now		 Embedded
Firmware
Inside		 Control
Mode		 Input Type Description VIN Range

Max. IOUT

 VOUT Range Noise
@0.1~10Hz 		Max. Small Signal Modulation Frequency Rise Time for Small Signals Rise Time for Large Signals Size
(mm)		 Package Type
Click to View Switch mode ATLS500MA212D ATLS212EV1.0 $97.02 9 No Constant current DC High voltage &
Constant current 		4.5V to 15V 0.5A 0.2VVPS to 0.8VVPS <15µA 10kHz 30us 80us 25.4×20×5 DIP
Click to View Switch mode ATLS500MA212DHS ATLS212EV1.0 $97.02 0 No Constant current DC High voltage &
Constant current 		4.5V to 15V 0.5A 0.2VVPS to 0.8VVPS <6µA 10kHz 10us 26us 25.4×20×5 DIP
Click to View Switch mode ATLS1A212D ATLS212EV1.0 $101.64 0 No Constant current DC High voltage &
Constant current 		4.5V to 15V 1A 0.2VVPS to 0.8VVPS <3.47µA 10kHz 30us 80us 25.4×20×5 DIP
Click to View Switch mode ATLS1A212DHS ATLS212EV1.0 $101.64 0 No Constant current DC High voltage &
Constant current 		4.5V to 15V 1A 0.2VVPS to 0.8VVPS <6µA 10kHz 10us 26us 25.4×20×5 DIP
Click to View Switch mode ATLS2A212D ATLS212EV1.0 $106.26 16 No Constant current DC High efficiency 4.5V to 15V 2A 0.2VVPS to 0.8VVPS <4.39µA 10kHz 30us 80us 25.4×20×5 DIP
Click to View Switch mode ATLS2A212DHS ATLS212EV1.0 $106.26 0 No Constant current DC High efficiency 4.5V to 15V 2A 0.2VVPS to 0.8VVPS <6µA 10kHz 10us 26us 25.4×20×5 DIP
Click to View Switch mode ATLS3A212D ATLS212EV1.0 $110.88 17 No Constant current DC High efficiency 4.5V to 15V 3A 0.2VVPS to 0.8VVPS <5.21µA 10kHz 30us 80us 25.4×20×5 DIP
Click to View Switch mode ATLS3A212DHS ATLS212EV1.0 $110.88 0 No Constant current DC High efficiency 4.5V to 15V 3A 0.2VVPS to 0.8VVPS <6µA 10kHz 10us 26us 25.4×20×5 DIP
Click to View Switch mode ATLS5A212D ATLS212EV1.0 $120.00 0 No Constant current DC High efficiency 4.5V to 15V 5A 0.2VVPS to 0.8VVPS <5.21µA 10kHz 30us 80us 25.4×20×5 DIP
Click to View Switch mode ATLS4A214D ATLS214EV1.0 $114.35 2 No Constant current DC High efficiency 5V to 14V 4A 0.2VVPS to 0.8VVPS <12µA 4kHz 100us 180us 27.4×21×5.7 DIP
Click to View Switch mode ATLS6A214D ATLS214EV1.0 $120.12 9 No Constant current DC High efficiency 5V to 14V 6A 0.2VVPS to 0.8VVPS <12µA 4kHz 100us 180us 27.4×21×5.7 DIP
Click to View Switch
mode		 ATLS8A216D ATLS216EV1.0 datasheet $99 5 No Constant current DC High efficiency 5.5V to 15V 8A 0.2VVPS to 0.8VVPS <12µA 20kHz 100us 180us 27.4×21×5.7 DIP/SMT
Click to View Switch
mode		 ATLS10A216D ATLS216EV1.0 datasheet $99 2 No Constant current DC High efficiency 5.5V to 15V 10A 0.2VVPS to 0.8VVPS <12µA 20kHz 100us 180us 27.4×21×5.7 DIP/SMT
Click to View Switch
mode		 ATLS12A216D ATLS216EV1.0 datasheet $99 2 No Constant current DC High efficiency 5.5V to 15V 12A 0.2VVPS to 0.8VVPS <12µA 20kHz 100us 180us 27.4×21×5.7 DIP/SMT
Click to View Switch
mode		 ATLS4A217D ATLS216EV1.0 datasheet $99 2 No Constant current DC High efficiency 5.5V to 28V 4A 0.2VVPS to 0.8VVPS <12µA 20kHz 100us 180us 27.4×21×5.7 DIP/SMT
Click to View Switch
mode		 ATLS10A217D ATLS216EV1.0 datasheet $99 6 No Constant current DC High efficiency 5.5V to 28V 10A 0.2VVPS to 0.8VVPS <12µA 20kHz 100us 180us 27.4×21×5.7 DIP/SMT
laser driver Switch
mode		 ATLS15A218 ATLS218EV2.0 datasheet $129 2 No Constant current DC High efficiency 5.5V to 20V 15A 0.1VVPS to 0.8VVPS <12µA 10kHz 100us 180us 35.78×35.78×11.5 DIP
laser driver Switch
mode		 ATLS25A219D - datasheet $287.60 0 No Constant current DC High voltage&high current 8.5V to 40V 25A 0.1VVPS to 0.8VVPS <20µAP-P - 28us 28us 54.28×54.28×15.2 DIP
laser driver Switch
mode		 ATLS25A219CH - datasheet $299.15 0 No Constant current DC High voltage&high current 8.5V to 40V 25A 0.1VVPS to 0.8VVPS <20µAP-P - 28us 28us 63.00×61.00×16.7 Chassis mount
laser driver Switch
mode		 ATLS25A219GUI - datasheet $333.80 0 No Constant current DC High voltage&high current 8.5V to 40V 25A 0.1VVPS to 0.8VVPS <20µAP-P - 28us 28us 63.00×61.00×16.7 Chassis mount with GUI interface
Switch
mode		 ALDD28V5A401 - $622.25 1 - Yes Constant current DC Low noise: 12µAP-P  12V~27V 5A 0.1VVPS to 0.8VVPS <15µAP-P  10kHz 200nS 192nS 68.5×61.0×16.6 DIP
Switch
mode		 ALDD28V15A401 - $646.80 1 - Yes Constant current DC Low noise: 12µAP-P  12V~27V 15A 0.1VVPS to 0.8VVPS <15µAP-P  10kHz 200nS 192nS 68.5×61.0×16.6 DIP
Linear mode ATLS100MA103 ATLS1A103DEV1.0 $78.54 32 No Constant current
Rise time: 300ns
LDC = 0V		 DC Low noise: 1.5µAP-P 3.0V to 5.5V 0.1A 0V to VVPS-1V <1.5µAP-P  1MHz 300nS 1.18uS 20×14.5×5 DIP/SMT
Linear mode ATLS200MA103 ATLS1A103DEV1.0 $78.54 33 No Constant current
Rise time: 300ns
LDC = 0V		 DC Low noise: 2.5µAP-P 3.0V to 5.5V 0.2A 0V to VVPS-1V <2.5µAP-P 2MHz 300nS 200nS 20×14.5×5 DIP/SMT
Linear mode ATLS250MA103 ATLS1A103DEV1.0 $778.54 61 No Constant current
Rise time: 300ns
LDC = 0V		 DC Low noise: 2.5µAP-P 3.0V to 5.5V 0.25A 0V to VVPS-1V <2.5µAP-P  2MHz 300nS 200nS 20×14.5×5 DIP/SMT
Linear mode ATLS500MA103 ATLS1A103DEV1.0 $78.54 32 No Constant current
Rise time: 300ns
LDC = 0V		 DC Low noise: 5μAP-P 3.0V to 5.5V 0.5A 0V to VVPS-1V <5μAP-P 2MHz 300nS 490nS 20×14.5×5 DIP/SMT
Click to View Linear mode ATLS1A103 ATLS1A103DEV1.0 $78.54 5 No Constant current
Rise time: 300ns
LDC = 0V		 DC Low noise: 6µAP-P 3.0V to 5.5V 1A 0V to VVPS-1V <6µAP-P 2MHz 300nS 210nS 20×14.5×5 DIP/SMT
Linear
mode		 ATLS100MA104 ATLS1A103DEV1.0 $83 4 No Constant current DC Low noise: 3.96µAP-P  3.1V~5.5V 0.1A 0.5V~3.5V <3.96µAP-P  7.61MHz 75nS 46nS 20×14.5×8 DIP/SMT
Linear
mode		 ATLS250MA104 ATLS1A103DEV1.0 $83 17 No Constant current DC Low noise: 3.96µAP-P  3.1V~5.5V 0.25A 0.5V~3.5V <3.96µAP-P  7.61MHz 75nS 46nS 20×14.5×8 DIP/SMT
Linear
mode		 ATLS500MA104 ATLS1A103DEV1.0 $83 10 No Constant current DC Low noise: 3.96µAP-P  3.1V~5.5V 0.5A 0.5V~3.5V <3.96µAP-P  3.5MHz 100nS 400nS 20.14×16.8×5 DIP/SMT
Linear
mode		 ATLS1A104D ATLS1A103DEV1.0 $91.25 9 No Constant current DC Low noise: 3.96µAP-P  3.1V~5.5V 1A 0.5V~3.5V <3.96µAP-P  7.61MHz 75nS 46nS 20×14.5×8 DIP
Linear
mode		 ATLS1A104S ATLS1A103DEV1.0 $100.70 9 No Constant current DC Low noise: 3.96µAP-P  3.1V~5.5V 1A 0.5V~3.5V <3.96µAP-P  7.61MHz 75nS 46nS 20×14.5×8 SMT
Linear
mode		 ATLS1.5A104D ATLS1A103DEV1.0 $91.25 13 No Constant current DC Low noise: 6.27µAP-P  3.1V~5.5V 1A 0.5V~3.5V <6.27µAP-P  1.82MHz 200nS 192nS 20×14.5×8 DIP
Linear
mode		 ATLS1.5A104S ATLS1A103DEV1.0 $100.70 13 No Constant current DC Low noise: 6.27µAP-P  3.1V~5.5V 1A 0.5V~3.5V <6.27µAP-P  1.82MHz 200nS 192nS 20×14.5×8 SMT
Click to View Linear
mode		 ATLS250MA106 ATLS1A103DEV1.0 datasheet $86.63 3 No Constant current DC

Constant current &
low noise

 3V to 5.5V 0.25A 1.5V to 4V <4.5μAP-P 100kHz 1uS 1.5uS 20.14×14.6×5 DIP/SMT
Click to View Linear
mode		 ATLS500MA106 ATLS1A103DEV1.0 datasheet $78.8 0 No Constant current DC

Constant current &
low noise

 3V to 5.5V 0.5A 1.5V to 4V <4.5μAP-P 200kHz 1uS 1.5uS 20.14×14.6×5 DIP/SMT
Click to View Linear
mode		 ATLS100MA116 ATLS116EV1.0 datasheet $93.5 0 No Constant current DC

Constant current &
low noise

 6.5V to 16V 100mA 1.5V~ VVPS-2V <300nAP-P 1MHz 170nS 1.5uS 22×14.6×8.6 DIP/SMT
Click to View Linear
mode		 ATLS200MA116 ATLS116EV1.0 datasheet $93.5 1 No Constant current DC

Constant current &
low noise

 6.5V to 16V 200mA 1.5V~ VVPS-2V <300nAP-P 1MHz 170nS 1.5uS 22×14.6×8.6 DIP/SMT
Click to View Linear
mode		 ATLS250MA116 ATLS116EV1.0 datasheet $93.5 0 No Constant current DC

Constant current &
low noise

 6.5V to 16V 250mA 1.5V~ VVPS-2V <300nμAP-P 1MHz 170nS 1.5uS 22×14.6×8.6 DIP/SMT
Click to View Linear
mode		 ATLS250MA117 ATLS216EV1.0 datasheet $83 0 No Constant current DC

High voltage &
low noise

 3.3V to 10V 250mA 0.5V~ 8.5V <0.5μAARM 1.2MHz 200nS 200nS 20.14×14.6×5 DIP/SMT
Click to View Linear
mode		 ATLS1A117 ATLS216EV1.0 datasheet $83 3 No Constant current DC

High voltage &
low noise

 3.3V to 10V 1A 0.5V~ 8.5V <0.5μAARM 1.2MHz 200nS 200nS 20.14×14.6×5 DIP/SMT
Linear
mode		 ATLS100MA118 - $499 0 No Constant current DC 0.125µAP-P  10V~28V 0.1A 1V~VVPS-4V <0.125µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS200MA118 - $499 0 No Constant current DC 0.25µAP-P  10V~28V 0.2A 1V~VVPS-4V <0.25µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS500MA118 - $499 0 No Constant current DC 0.5µAP-P  10V~28V 0.5A 1V~VVPS-4V <0.5µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS1A118 - $599 0 No Constant current DC 1.25µAP-P  10V~28V 1A 1V~VVPS-4V <1.25µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS2A118 - $699 0 No Constant current DC 2.5µAP-P  10V~28V 2A 1V~VVPS-4V <2.5µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS3A118 - $799 0 No Constant current DC 3.75µAP-P  10V~28V 3A 1V~VVPS-4V <2.5µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Linear
mode		 ATLS10A118 - - 0 - No Constant current DC 12.5µAP-P  10V~28V 10A 1V~VVPS-4V <2.5µAP-P  10kHz 350nS 350nS 49.4×45..0×14.0 DIP
Click to View Switch mode ATLS500MA201D ATLSXA201DEV1.0 $77.7 10 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 0.5A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5.0 DIP
Click to View Switch mode ATLS1A201D ATLSXA201DEV1.0 $77.7 5 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 1A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5.0 DIP
Click to View Switch mode ATLS2A201D ATLSXA201DEV1.0 $77.7 16 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 2A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5.0 DIP
Click to View Switch mode ATLS3A201D ATLSXA201DEV1.0 $80.9 49 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 3A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS4A201D ATLSXA201DEV1.0 $80.9 73 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 4A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS6A201D ATLSXA201DEV1.0 $97.02 10 No Constant current
 DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 6A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS500MA202D ATLSXA202DEV1.0 $85.47 11 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 0.5A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS1A202D ATLSXA202DEV1.0 $85.47 2 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 1A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS2A202D ATLSXA202DEV1.0 $91.25 0 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 6.0V 2A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS3A202D ATLSXA202DEV1.0 $91.25 19 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 3A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS4A202D ATLSXA202DEV1.0 $91.25 56 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 4A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode ATLS6A202D ATLSXA202DEV1.0 $91.25 25 No Constant current DC High efficiency
Same pinout as
CWD-01-V2-D		 3.0V to 5.5V 6A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 352uS 25.8×20×5 DIP
Click to View Switch mode LDA1-CP1 - $106.26 1 No Constant current &
Constant power
 DC High efficiency &
PD anode grounded		 3.0V to 5.5V 2A 0V to 0.9VVPS <25μAP-P 11kHz 30uS 30uS 25.4×20×4.6 DIP
Click to View Switch mode LDA1-CP2 - $106.26 0 No Constant current &
Constant power
 DC High efficiency &
PD anode not grounded		 3.0V to 5.5V 2A 0V to 0.9VVPS <25μAP-P 11kHz 30uS 30uS 25.4×20×4.6 DIP
Click to View Switch mode CWD-01-V2-D - $87.78 14 No Constant current DC High efficiency 3.0V to 5.5V 2A 0V to 0.9VVPS <25μAP-P 5kHz 70uS 70uS 25.8×20×5 DIP
Click to View Linear mode ATLS1A102 - $64 55 No Constant current
LDC = 0.5V		 DC Low noise: <10uA
 3.0V to 5.5V 1A 0V to VVPS-1V <10μAP-P 2MHz 1.5uS 1.5uS 19.4×14.5×5 DIP/SMT

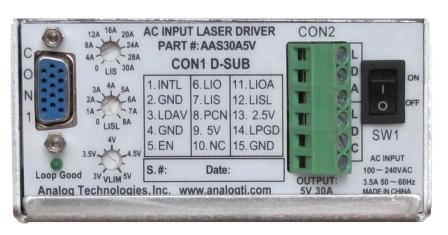

Click to View Switch mode AAS12A12V2 - $299 1 No Constant current AC Max. Power: 180W 100VAC to 240VAC 12A 0V to 12V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS16A9.5V2 - $299 0 No Constant current AC Max. Power: 180W 100VAC to 240VAC 16A 0V to 9.5V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS25A6V2 - $299 1 No Constant current AC Max. Power: 180W 100VAC to 240VAC 25A 0V to 6V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis

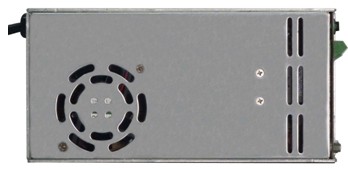

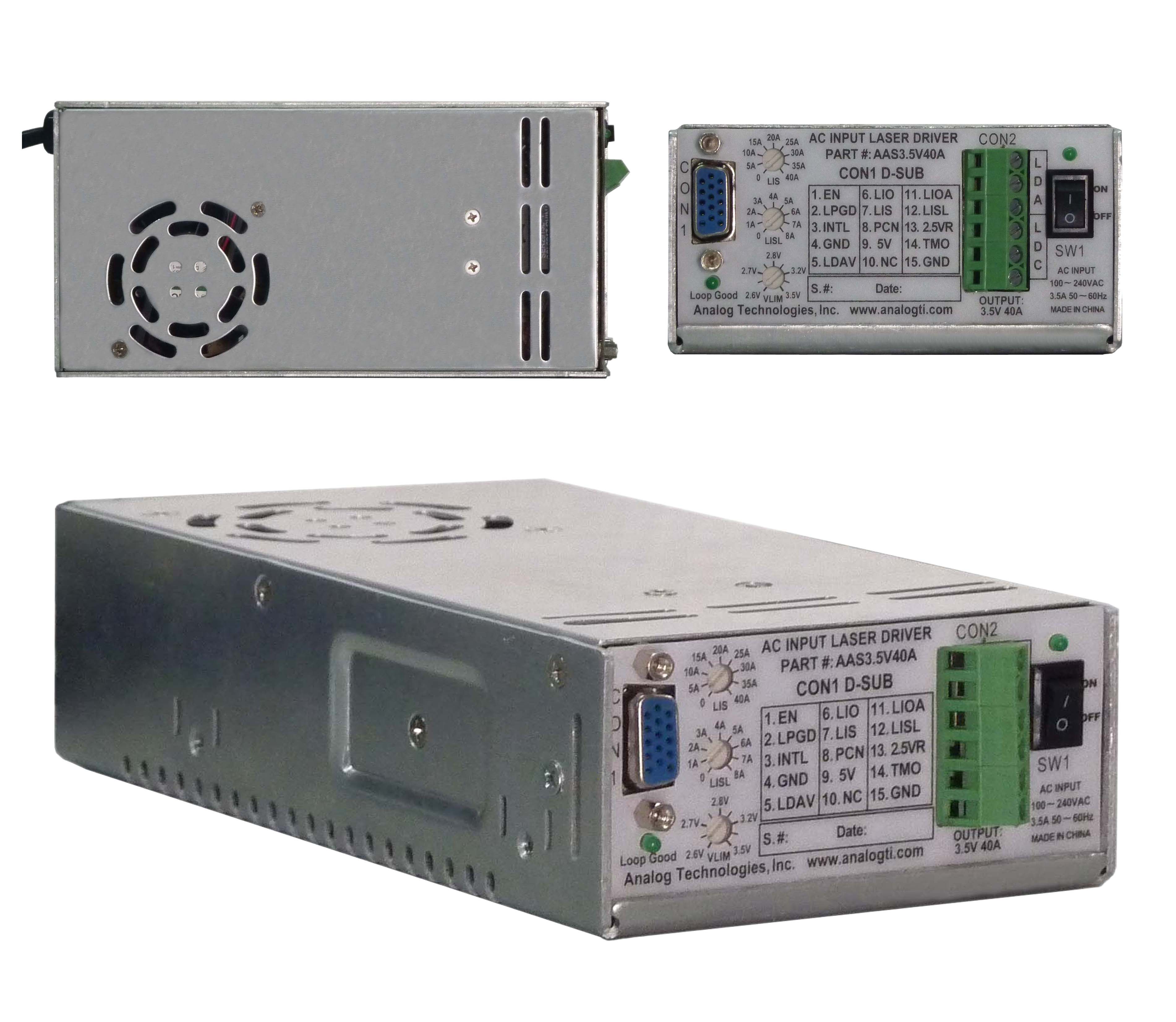

Click to View Switch mode AAS40A4V2 - $299 1 No Constant current AC Max. Power: 180W 100VAC to 240VAC 40A 0V to 4V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS45A4V2 - $299 1 No Constant current AC Max. Power: 180W 100VAC to 240VAC 45A 0V to 4V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS26A10V - $299 0 No Constant current AC Max. Power: 300W 100VAC to 240VAC 26A 0V to 10V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS50A6V3 - $299 0 No Constant current AC Max. Power: 300W 100VAC to 240VAC 50A 0V to 6V <354μAP-P 5kHz 56μS 600uS 199×99×50 Chassis
Click to View Switch mode AAS100A5V1 - $499 0 - No Constant current AC Max. Power: 500W 100VAC to 240VAC 100A 0V to 5V - 2kHz - - 278×105×63.5 Chassis
