High Voltage Amplifier/ Piezo Driver

high_voltage_amplifier

What is a high voltage amplifier?

A high voltage amplifier is used to convert or amplify a low magnitude voltage signal as the input of the amplifier which draw little or almost zero current from this signal to a high magnitude voltage signal as the output which can source or sink certain level of current and be from as low as 10uA to as high as 1A. The input signal can be from an analog or digital signal source. The output signal has the same shape as that of the input signal but the magnification gain remain the same, which can be from 10 to 1000. These are the main specification of the high voltage amplifier: input power supply voltage, amplification gain, input voltage range, output voltage range, maximum output current, bandwidth, maximum slew rate, and voltage noise floor level. The world's highest speed high voltage amplifier from Analog Technologies, Inc., has the following specifications: input voltage = 24V, amplification gain = 200, input voltage range = –10 to 10V, output voltage range = –2000V to 2000V, maximum output current = 100mA, bandwidth = 1MHz, maximum slew rate = 12,000V/μs, and voltage noise floor level = 400μVpp@0.1Hz~10Hz. In addition, this high speed high voltage amplifier comes with the following protection features: power supply input under and over voltage lock-out, input signal ESD voltage, over temperature shut down, turn-on soft start, output current limit, etc.

What is a high speed high voltage amplifier?

A high voltage amplifier is used to convert or amplify a low magnitude voltage signal as the input of the amplifier which draw little or almost zero current from this signal to a high magnitude voltage signal, usually >1000V, as the output which can source or sink certain level of current and be from as low as 10uA to as high as 1A. The input signal can be from an analog or digital signal source. The output signal has the same shape as that of the input signal but the magnification gain remain the same, which can be from 10 to 1000. As the name suggested, a high speed high voltage amplifier must have a high speed output capability, the bandwidth must be ≥ 1MHz and slew rate must be > 5000V/μS. Analog Technologies, Inc., has a broad range of high speed high voltage amplifiers. Some have the world's highest speed. One such an amplifier has the flowing main specifications: input voltage = 24V, amplification gain = 200, input voltage range = –10 to 10V, output voltage range = –2000V to 2000V, maximum output current = 100mA, bandwidth = 1MHz, maximum slew rate = 12,000V/μs, and voltage noise floor level = 400μVpp@0.1Hz~10Hz. In addition, this high speed high voltage amplifier comes with the following protection features: power supply input under and over voltage lock-out, input signal ESD voltage, over temperature shut down, turn-on soft start, output current limit, etc.

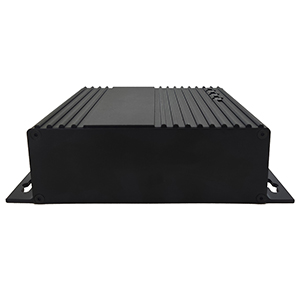

High Voltage High Speed Amplifier

MAIN FEATURES

Built-in High Voltage Converter

Offset Voltage Range: 10V

Compact Size: 176.5(L)*147(W)*41.2(H) mm

Weight: 2.2lb (1.0kg)

APPLICATIONS

High voltage amplifications for driving piezos and other high voltage loads.

Click to View
Click to View
Click to View
Click to View

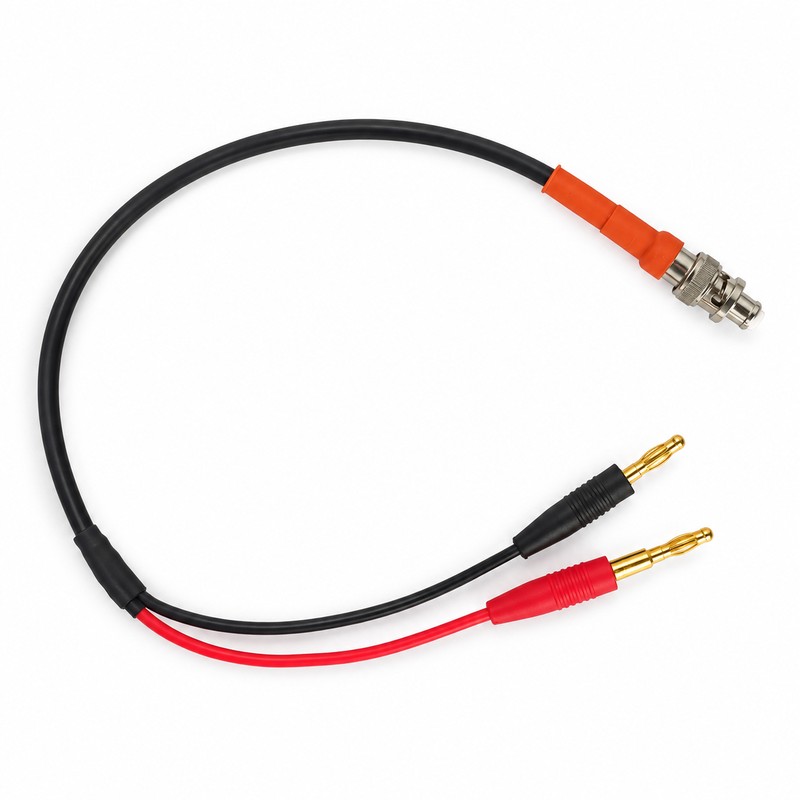

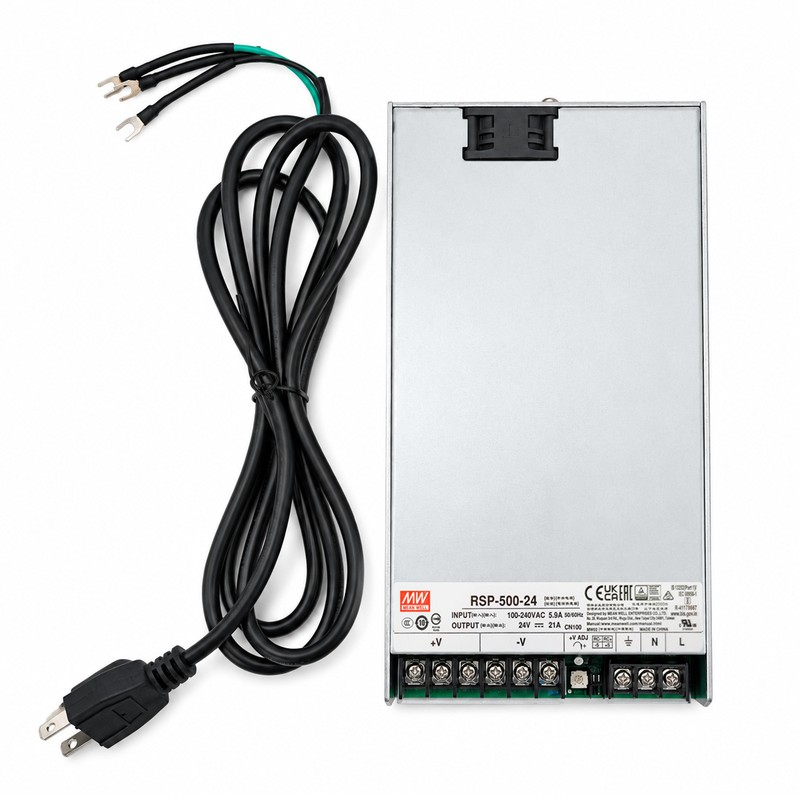

Part Number Slew Rate Bandwidth Output Voltage Range Output Current Datasheet Stock Info Buy Now
AHVAHS2KV2X20MA 800V/µs Up to 200kHz VOUT = 0~2kV@VIN = 24V Up to 20mA AHVAHS2KV2X20MA 0 buy now buy now
AHVA2KV2KVF2X10MA 150V/µs Up to 20kHz VOUT = −2kV~2kV@VIN = 24V Up to 10mA AHVA2KV2KVF2X10MA 0 buy now buy now
AHVA2KV2X5MA 150V/µs Up to 20kHz VOUT = 0~2kV@VIN = 24V Up to 5mA AHVA2KV2X5MA 0 buy now buy now
AHVA2KV2X10MA 150V/µs Up to 20kHz VOUT = 0~2kV@VIN = 24V Up to 10mA AHVA2KV2X10MA 0 buy now buy now
AHVA2KV2X20MA 150V/µs Up to 20kHz VOUT = 0~2kV@VIN = 24V Up to 20mA AHVA2KV2X20MA 0 buy now buy now
AHVA2KV2X50MA 150V/µs Up to 20kHz VOUT = 0~2kV@VIN = 24V Up to 50mA AHVA2KV2X50MA 0 buy now buy now
AHVA2KV2X100MA 150V/µs Up to 20kHz VOUT = 0~2kV@VIN = 24V Up to 100mA AHVA2KV2X100MA 0 buy now buy now
AHVA1KV2X5MA 100V/µs Up to 20kHz VOUT = 0~1kV@VIN = 24V Up to 5mA AHVA1KV2X5MA 0 buy now buy now
AHVA1KV2X10MA 100V/µs Up to 20kHz VOUT = 0~1kV@VIN = 24V Up to 10mA AHVA1KV2X10MA 0 buy now buy now
AHVA1KV2X20MA 100V/µs Up to 20kHz VOUT = 0~1kV@VIN = 24V Up to 20mA AHVA1KV2X20MA 0 buy now buy now
AHVA1KV2X50MA 100V/µs Up to 20kHz VOUT = 0~1kV@VIN = 24V Up to 50mA AHVA1KV2X50MA 0 buy now buy now
AHVA1KV2X100MA 100V/µs Up to 20kHz VOUT = 0~1kV@VIN = 24V Up to 100mA AHVA1KV2X100MA 0 buy now buy now
AHVA500V2X5MA 100V/µs Up to 20kHz VOUT = 0~500V@VIN = 24V Up to 5mA Datasheet 0 buy now Buy Now
AHVA500V2X10MA 100V/µs Up to 20kHz VOUT = 0~500V@VIN = 24V Up to 10mA Datasheet 0 buy now Buy Now
AHVA500V2X30MA 100V/µs Up to 20kHz VOUT = 0~500V@VIN = 24V Up to 30mA AHVA500V2X30MA 0 buy now buy now
AHVA500V2X50MA 100V/µs Up to 20kHz VOUT = 0~500V@VIN = 24V Up to 100mA Datasheet 0 buy now Buy Now
AHVA500V2X100MA 100V/µs Up to 20kHz VOUT = 0~500V@VIN = 24V Up to 100mA Datasheet 0 buy now Buy Now
AHVA250V2X5MA 100V/µs Up to 20kHz VOUT = 0~250V@VIN = 24V Up to 5mA Datasheet 0 buy now Buy Now
AHVA250V2X10MA 100V/µs Up to 20kHz VOUT = 0~250V@VIN = 24V Up to 10mA Datasheet 0 buy now Buy Now
AHVA250V2X20MA 100V/µs Up to 20kHz VOUT = 0~250V@VIN = 24V Up to 20mA Datasheet 0 buy now Buy Now
AHVA250V2X40MA 100V/µs Up to 40kHz VOUT = 0~250V@VIN = 24V Up to 40mA AHVA250V2X40MA 0 buy now buy now
AHVA250V2X100MA 100V/µs Up to 40kHz VOUT = 0~250V@VIN = 24V Up to 100mA AHVA250V2X40MA 0 buy now Buy Now
AHVA100V2X5MA 100V/µs Up to 40kHz VOUT = 0~100V@VIN = 24V Up to 5mA Datasheet 0 buy now Buy Now
AHVA100V2X10MA 100V/µs Up to 20kHz VOUT = 0~100V@VIN = 24V Up to 10mA Datasheet 0 buy now Buy Now
AHVA100V2X20MA 100V/µs Up to 20kHz VOUT = 0~100V@VIN = 24V Up to 20mA Datasheet 0 buy now Buy Now
AHVA100V2X50MA 100V/µs Up to 20kHz VOUT = 0~100V@VIN = 24V Up to 50mA AHVA100V2X50MA 0 buy now buy now
AHVA100V2X100MA 100V/µs Up to 20kHz VOUT = 0~100V@VIN = 24V Up to 100mA Datasheet 0 buy now Buy Now
AHVAN1KV20MA 100V/µs Up to 20kHz VOUT = 0~−1kV@VIN = 24V Up to 20mA AHVAN1KV20MA 0 buy now buy now
AHVAN2KV20MA 100V/µs Up to 20kHz VOUT = 0~−1kV@VIN = 24V Up to 20mA AHVAN1KV20MA 0 buy now buy now
AHVAN2KV100MA 100V/µs Up to 20kHz VOUT = 0~−1kV@VIN = 24V Up to 100mA AHVAN2KV100MA 0 buy now buy now
AHVAN2R5KV20MA 100V/µs Up to 20kHz VOUT = 0~−1kV@VIN = 24V Up to 20mA AHVAN2R5KV20MA. 0 buy now buy now

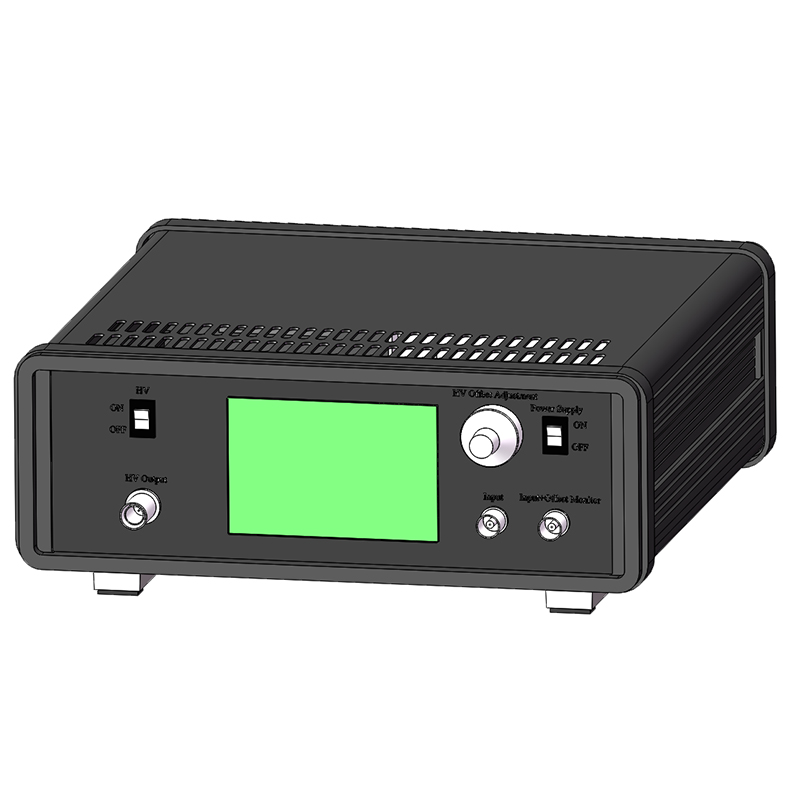

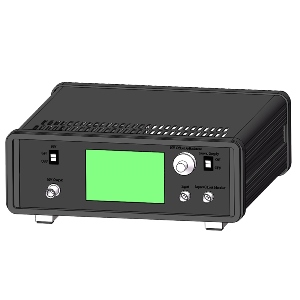

Click to View

Built-in High Voltage Converter

Compact Size: 230(L)×252.0(W)×85.0(H)mm

High Current Capability: Up to 20mA

High Slew Rate: 200V/µs

Input Voltage : 220VAC±10% 50Hz or 110VAC±10% 60Hz

Wide Output Voltage Range: VOUT = 0 ~ 2kV

Offset Voltage: 10V

Bandwidth: Up to 20kHz

Weight: 10.2lb (5.0kg)

Part Number Datasheet with
Pricelist
Buy Now
ATI242000A Datasheet buy now Buy Now

Click to View

Built-in Waveform Generator: Sine, Square and Triangle

High capacitance driving capability: up to 100uF

Cut power consumption by 80%

VIN = 5V; VOUT = –30V ~ 300V

Frequency = 0.1Hz~20kHz

Part Number Datasheet with
Pricelist
Buy Now
APZD300V2A Datasheet buy now Buy Now
