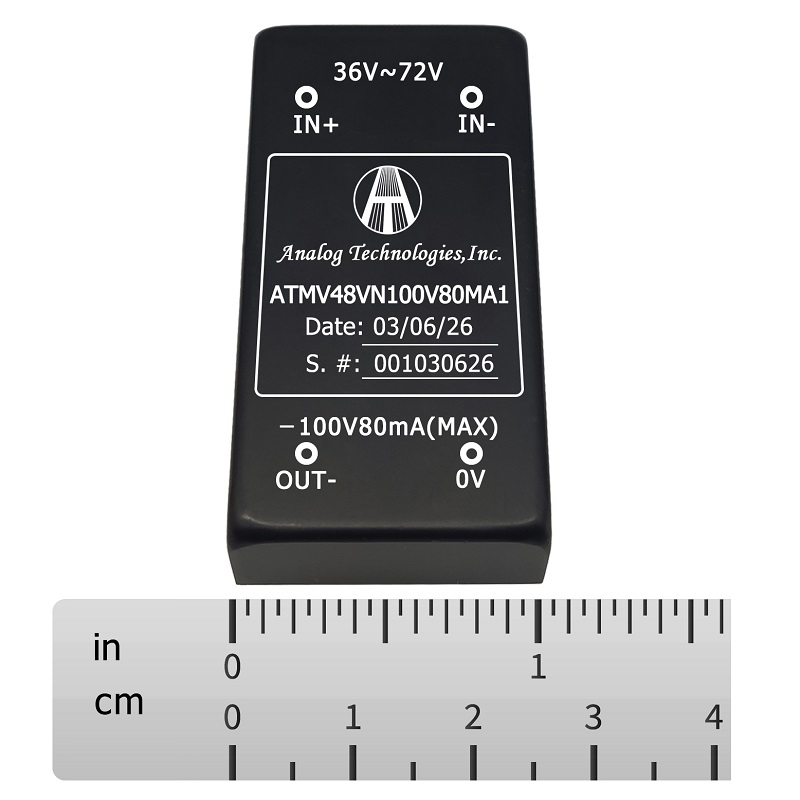

ATI isolated DC-DC power modules deliver regulated medium- to high-voltage DC outputs from a standard 12V or 24V supply, with complete galvanic isolation between input and output. All ATMV-series modules share a common set of key specifications: 1500VDC isolation voltage, ±1% output ripple @ 20MHz, automatic-recovery short-circuit protection, full aluminum shielded DIP package, and -40°C to +85°C operating range. Both single-rail and bipolar (±) output variants are available across the full product range.
Isolated vs. non-isolated DC-DC converters
An isolated DC-DC converter maintains complete galvanic separation between input and output — their grounds are fully independent. This eliminates ground loops, rejects common-mode noise, and protects sensitive circuits from high-voltage transients. A non-isolated converter shares a common ground and is more compact and cost-effective where isolation is not required.
Key parameters to consider when selecting a module
Nominal output voltage; maximum output current; input voltage range (all ATMV modules have a 2:1 input range); single or bipolar output; power rating; isolation voltage; efficiency; output ripple; and operating temperature. Full model selection tables with pricing and datasheets are available on each series page.
Product families at a glance
| Series |
Input Range |
Output |
Voltage Range |
Power |
Isolation |
Efficiency |
Selection Guide |
| ATMV12V | 10–18V DC | Single & Bipolar | 50–600V / ±40–±300V | 4W–20W | 1500VDC | 70%–82% | View models » |
| ATMV24V | 18–36V DC | Single & Bipolar | 100–500V / ±100–±250V | 15W–20W | 1500VDC | 74%–85% | View models » |
| Low Voltage 5V | 5V DC (2:1) | Single | 5V / 200mA | 1W | 1500VDC | Up to 77% | View models » |
| Low Voltage 24V | 18–36V DC | Single | 5V, up to 10A | 1W / 50W | High | — | View models » |
| Wide Range HV | 210–1200VDC | Single | Low-voltage output | — | High | — | View models » |
Custom models with non-standard voltages, power ratings, or packaging are available on request. Contact ATI to discuss your application.
12V Input Isolated DC-DC Power Modules (ATMV12V Series)
Converts a standard 12V DC supply (10V–18V, 2:1 range) to regulated medium- to high-voltage DC output. The widest selection in the ATI isolated module range — over 40 models covering both single-rail and symmetric bipolar configurations, stocked and ready to ship.
Input 10–18V DC
Single out 50V – 600V
Bipolar out ±40V – ±300V
Power 4W / 6W / 8W / 12W / 15W / 20W
Isolation 1500VDC
Efficiency 70%–82%
Ripple ±1% @20MHz
Temp −40°C to +85°C
Protection Auto-recovery SCP
Package Shielded DIP
Compliance RoHS / Pb-free
Typical applications: ion pumps · spectral analysis · electrophoresis · PMTs · avalanche photodiodes · piezo drivers · particle accelerators · capillary electrophoresis
View all models & datasheets »
24V Input Isolated DC-DC Power Modules (ATMV24V Series)
Designed for systems that run on the 24V industrial standard bus (18V–36V, 2:1 range). The 24V input reduces supply-line current draw compared to the 12V series, making these modules the preferred choice in factory automation and laboratory rack environments. Bipolar models achieve up to 85% efficiency — the highest in the ATI isolated range.
Input 18–36V DC
Single out 100V – 500V
Bipolar out ±100V – ±250V
Power 15W / 20W
Isolation 1500VDC
Efficiency up to 85%
Ripple ±1% @20MHz
Temp −40°C to +85°C
Protection Auto-recovery SCP
Package Shielded DIP
Compliance RoHS / Pb-free
Typical applications: ion pumps · spectral analysis · electrophoresis · PMTs · avalanche photodiodes · piezo drivers · instrumentation amplifiers · lock-in amplifiers
View all models & datasheets »
210–1200VDC Input Isolated DC-DC Converters (AIDCW Series)
Designed for systems powered from a high DC bus (210V–1200VDC) rather than a low-voltage supply. These converters step down the high-voltage bus to a stable, regulated low-voltage output with full high-voltage galvanic isolation, protecting all downstream control electronics from the bus potential.
Input 210V – 1200VDC
Conversion HV → regulated low-voltage DC
Isolation High-voltage galvanic
Typical applications: power grid monitoring · energy storage management · renewable energy inverters · particle accelerator power systems · industrial HV drive interfaces
View models & datasheets »
Frequently asked questions
What is an isolated DC-DC power module?
An isolated DC-DC power module converts one DC voltage to another while maintaining complete galvanic isolation between input and output — the grounds are fully independent. This eliminates ground loops, suppresses common-mode noise, and protects sensitive circuits from high-voltage transients, making it the fundamental architecture for PMT bias supplies, ion pump sustain circuits, piezo drivers, and any system where the output ground must float independently of the input.
What is the difference between isolated and non-isolated DC-DC converters?
Isolated converters provide full electrical separation (independent grounds) for superior noise rejection and safety in high-voltage or precision signal environments. Non-isolated converters share a common ground and are more compact and lower-cost for low-voltage point-of-load use where isolation is not a requirement.
What output voltages are available for 12V input modules?
The ATMV12V series covers single outputs from 50V to 600V and bipolar outputs from ±40V to ±300V, across power ratings of 4W, 6W, 8W, 12W, 15W, and 20W. Full model tables with pricing and datasheets are on the 12V series page.
What output voltages are available for 24V input modules?
The ATMV24V series offers single outputs from 100V to 500V and bipolar outputs from ±100V to ±250V at 20W, with efficiency up to 85%. Full details are on the 24V series page.
What isolation voltage do ATI modules provide?
All ATMV-series modules provide 1500VDC input-to-output isolation within a full aluminum shielded DIP housing that also provides complete EMI shielding.
Can ATI supply custom configurations?
Yes. ATI has 27+ years of precision power design experience and supports custom configurations across all output voltages, power levels, packaging formats, and certifications. Contact ATI with your specifications.
