What is the input voltage range of these 24V isolated DC-DC power modules?

High-power 60W, 25W and 20W models accept 20V to 36V. All other models accept 18V to 36V. The 2:1 input ratio accommodates 24V nominal bus systems with typical line and load variation.

What output voltages are available for 24V input modules?

Single-output models cover 50V to 600V DC. Dual (bipolar) output models cover ±40V to ±300V, ideal for op-amp bias, piezo drivers, and CCD sensor supplies.

Do these 24V modules have short-circuit protection?

Yes. All ATMV24V series modules include built-in short-circuit protection, preventing damage under fault conditions.

What are the physical dimensions of the 24V power modules?

60W models measure 100.0×60.0×30.0 mm. 20W and 25W models measure 72.0×40.0×24.0 mm. 15W models measure 50.8×40.8×10.1 mm. 8W and smaller models measure 50.8×25.4×10.5 mm.

What efficiency can I expect from these 24V modules?

Efficiency typically ranges from 71% to 82%. Most 8W single-output models achieve 78%. 20W single-output models reach 80–82%.

Company's Patents

Contact Us

Analog Technologies, Inc.
1161 Ringwood Ct., #110
San Jose, CA 95131
U.S.A.

Tel.: 408-748-9100

Online Store:
www.smtzone.com
shop.analogtechnologies.com

Help us improve our webpage:
email

Home > Products > Isolated DC-DC Power Modules > Medium Voltage 24V Input Isolated DC-DC Power Modules

Medium Voltage 24V Input Isolated DC-DC Power Modules

24V Input Isolated DC-DC Power Module - ATMV24V series

DESCRIPTION

Analog Technologies' medium voltage 24V input isolated DC-DC power modules (ATMV24V series) convert an 18V–36V or 20V–36V input to regulated high-voltage outputs from 50V to 600V (single output) or ±40V to ±300V (dual / bipolar output). Available in 4W, 6W, 8W, 15W, 20W, 25W and 60W ratings, these compact modules feature:

Galvanic isolation for safe high-voltage system integration
2:1 input voltage range for flexible 24V bus compatibility
Built-in short-circuit protection on all models
Up to 82% efficiency on 20W single-output models
Three compact form factors: 72×40×24 mm, 50.8×40.8×10.1 mm, 50.8×25.4×10.5 mm
Ideal for laser drivers, piezo actuators, sensor bias, scientific instruments

Use the filter and search tools below to quickly find the right part number.

Selection Guide for 24V Input Isolated DC-DC Power Modules (48 Models)

Filter: All Single Output Dual (±) Output | 60W25W20W15W8W6W4W | Reset

Part Number & Datasheet	Price	Stock	Input Voltage	Output Voltage	Max. Current	Efficiency	Output Type	Power	Dimensions (mm)
60W · Single Output · Input: 20V ~ 36V
ATMV24V300V200MA1📄 Datasheet	$699	—	20V ~ 36V	300V	200mA	82%	Single	60W	100.0×60.0×30.0
25W · Single Output · Input: 20V ~ 36V
ATMV24V100V250MA1📄 Datasheet	$269	—	20V ~ 36V	100V	250mA	82%	Single	25W	72.0×40.0×24.0
ATMV24V150V167MA1📄 Datasheet	$272	—	20V ~ 36V	150V	167mA	82%	Single	25W	72.0×40.0×24.0
ATMV24V200V125MA1📄 Datasheet	$275	—	20V ~ 36V	200V	125mA	82%	Single	25W	72.0×40.0×24.0
ATMV24V300V83R4MA1📄 Datasheet	$278	—	20V ~ 36V	300V	83.4mA	82%	Single	25W	72.0×40.0×24.0
ATMV24V400V62R5MA1📄 Datasheet	$282	—	20V ~ 36V	400V	62.5mA	82%	Single	25W	72.0×40.0×24.0
ATMV24V500V50MA1📄 Datasheet	$282	—	20V ~ 36V	500V	50mA	82%	Single	25W	72.0×40.0×24.0
25W · Dual Output · Input: 20V ~ 36V
ATMV24VPN100V125MA2📄 Datasheet	$285	—	20V ~ 36V	±100V	±125mA	80%	Dual	25W	72.0×40.0×24.0
ATMV24VPN150V83R4MA2📄 Datasheet	$285	—	20V ~ 36V	±150V	±83.4mA	80%	Dual	25W	72.0×40.0×24.0
ATMV24VPN200V62R5MA2📄 Datasheet	$289	—	20V ~ 36V	±200V	±62.5mA	80%	Dual	25W	72.0×40.0×24.0
20W · Dual Output · Input: 20V ~ 36V
ATMV24VPN100V100MA2📄 Datasheet	$245	—	20V ~ 36V	±100V	±100mA	82%	Dual	20W	72.0×40.0×24.0
ATMV24VPN150V67MA2📄 Datasheet	$245	—	20V ~ 36V	±150V	±67mA	81%	Dual	20W	72.0×40.0×24.0
ATMV24VPN200V50MA2📄 Datasheet	$249	—	20V ~ 36V	±200V	±50mA	80%	Dual	20W	72.0×40.0×24.0
ATMV24VPN250V40MA2📄 Datasheet	$249	—	20V ~ 36V	±250V	±40mA	80%	Dual	20W	72.0×40.0×24.0
20W · Single Output · Input: 20V ~ 36V
ATMV24V100V200MA1📄 Datasheet	$229	—	20V ~ 36V	100V	200mA	82%	Single	20W	72.0×40.0×24.0

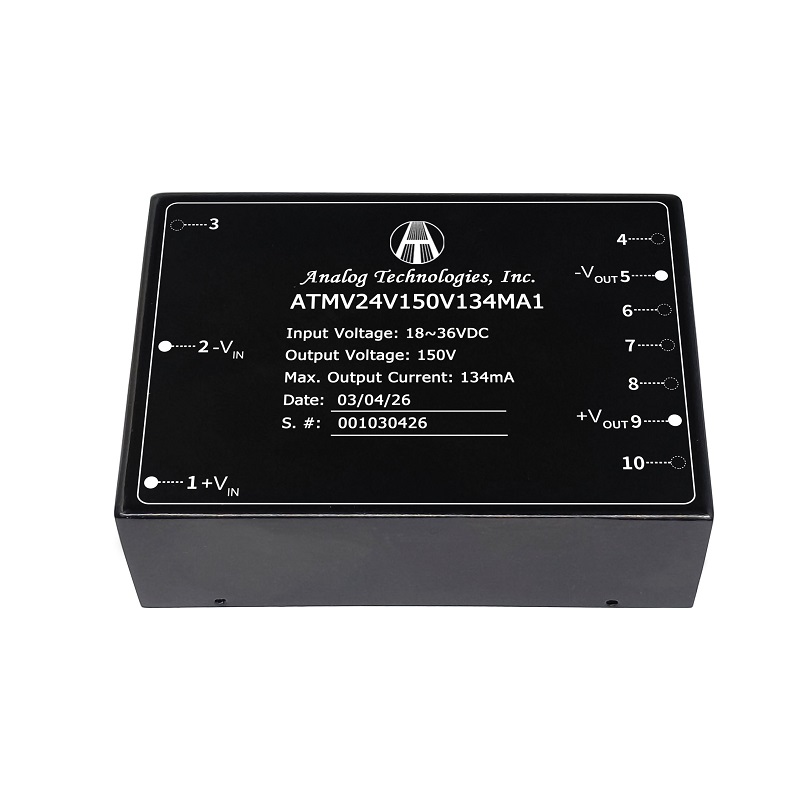

ATMV24V150V134MA1📄 Datasheet	$232	—	20V ~ 36V	150V	134mA	81%	Single	20W	72.0×40.0×24.0
ATMV24V200V100MA1📄 Datasheet	$235	—	20V ~ 36V	200V	100mA	82%	Single	20W	72.0×40.0×24.0
ATMV24V300V66R7MA1📄 Datasheet	$238	—	20V ~ 36V	300V	66.7mA	81%	Single	20W	72.0×40.0×24.0
ATMV24V400V50MA1📄 Datasheet	$242	—	20V ~ 36V	400V	50mA	80%	Single	20W	72.0×40.0×24.0
ATMV24V500V40MA1📄 Datasheet	$242	—	20V ~ 36V	500V	40mA	82%	Single	20W	72.0×40.0×24.0
15W · Dual Output · Input: 18V ~ 36V
ATMV24VPN50V150MA2📄 Datasheet	$149	—	18V ~ 36V	±50V	±150mA	76%	Dual	15W	50.8×40.8×10.1
ATMV24VPN100V75MA2📄 Datasheet	$149	—	18V ~ 36V	±100V	±75mA	75%	Dual	15W	50.8×40.8×10.1
ATMV24VPN150V50MA2📄 Datasheet	$149	—	18V ~ 36V	±150V	±50mA	75%	Dual	15W	50.8×40.8×10.1
15W · Single Output · Input: 18V ~ 36V
ATMV24V50V300MA1📄 Datasheet	$139	—	18V ~ 36V	50V	300mA	78%	Single	15W	50.8×40.8×10.1

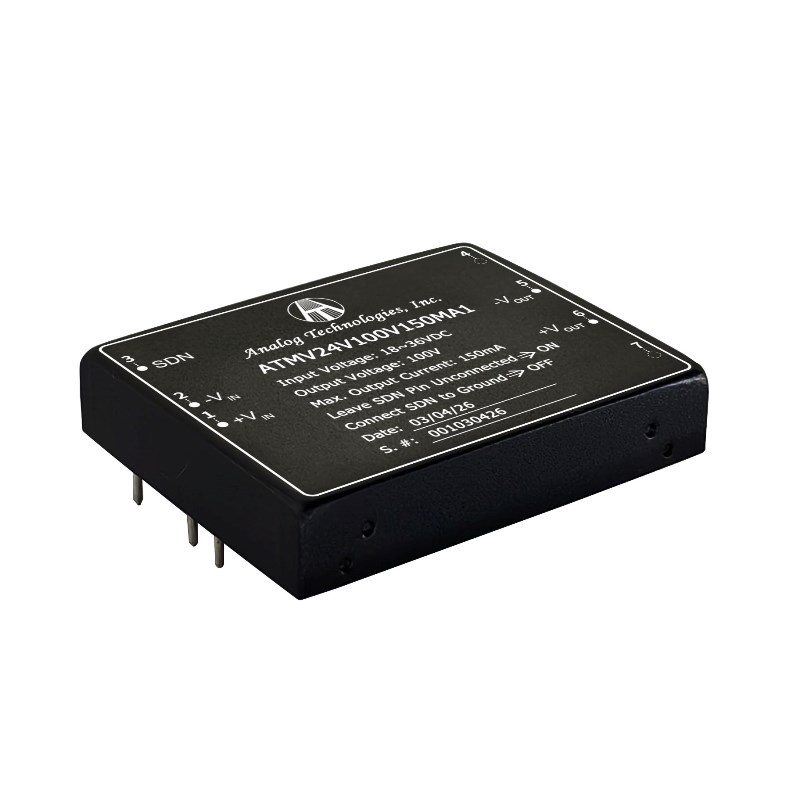

ATMV24V100V150MA1📄 Datasheet	$139	—	18V ~ 36V	100V	150mA	76%	Single	15W	50.8×40.8×10.1
ATMV24V150V100MA1📄 Datasheet	$139	—	18V ~ 36V	150V	100mA	75%	Single	15W	50.8×40.8×10.1
ATMV24V200V75MA1📄 Datasheet	$139	—	18V ~ 36V	200V	75mA	75%	Single	15W	50.8×40.8×10.1

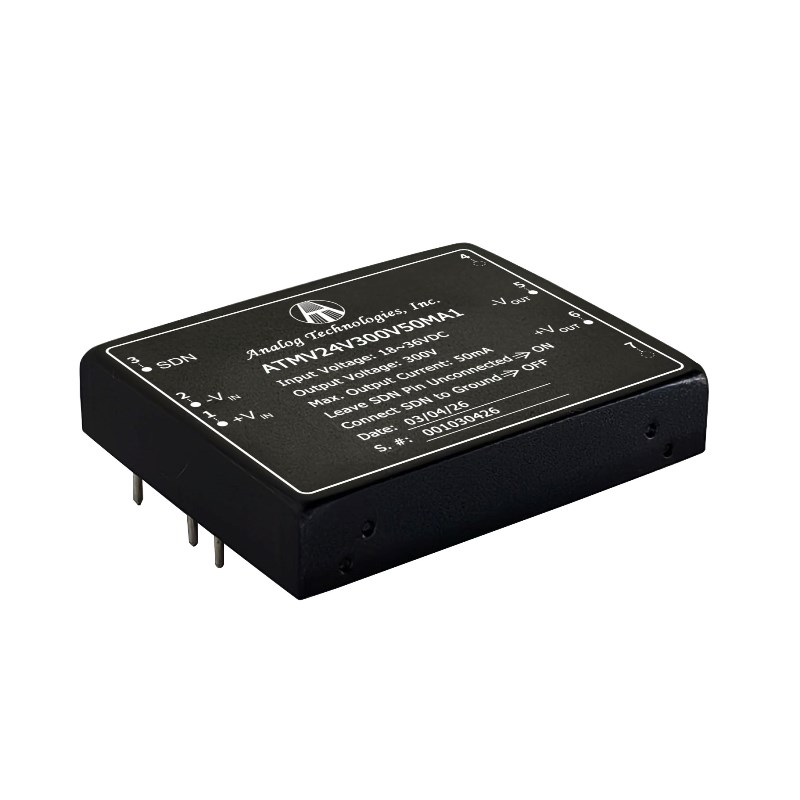

ATMV24V300V50MA1📄 Datasheet	$139	—	18V ~ 36V	300V	50mA	74%	Single	15W	50.8×40.8×10.1
8W · Single Output · Input: 18V ~ 36V
ATMV24V50V160MA1📄 Datasheet	$66	6	18V ~ 36V	50V	160mA	78%	Single	8W	50.8×25.4×10.5
ATMV24V80V100MA1📄 Datasheet	$67	7	18V ~ 36V	80V	100mA	78%	Single	8W	50.8×25.4×10.5
ATMV24V100V80MA1📄 Datasheet	$66	1	18V ~ 36V	100V	80mA	78%	Single	8W	50.8×25.4×10.5

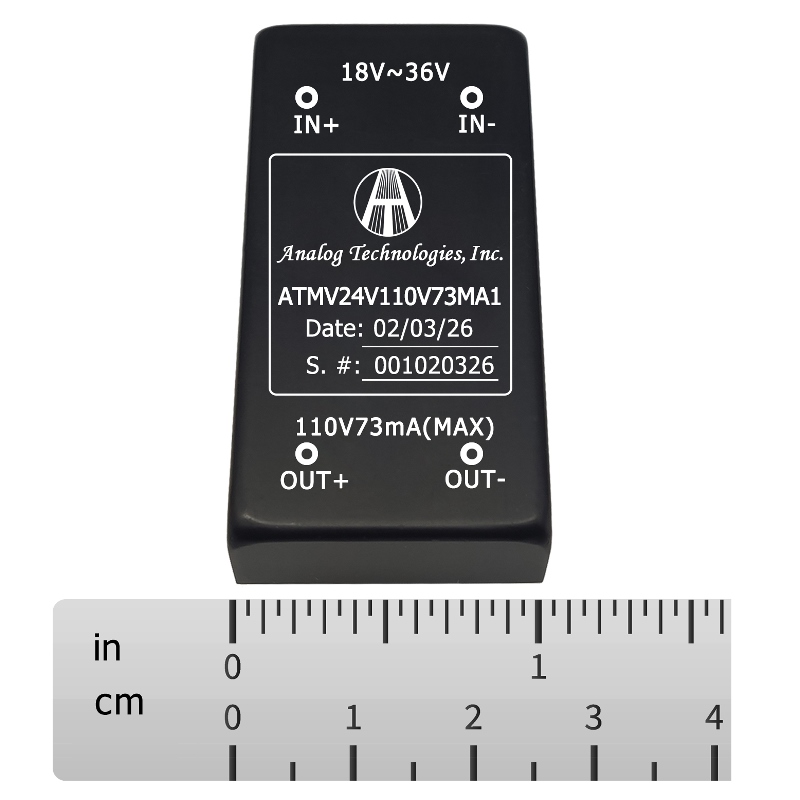

ATMV24V110V73MA1📄 Datasheet	$66	—	18V ~ 36V	110V	73mA	78%	Single	8W	50.8×25.4×10.5
ATMV24V150V53MA1📄 Datasheet	$66	2	18V ~ 36V	150V	53mA	78%	Single	8W	50.8×25.4×10.5
ATMV24V200V40MA1📄 Datasheet	$66	2	18V ~ 36V	200V	40mA	78%	Single	8W	50.8×25.4×10.5
ATMV24V250V32MA1📄 Datasheet	$66	4	18V ~ 36V	250V	32mA	78%	Single	8W	50.8×25.4×10.5
8W · Dual Output · Input: 18V ~ 36V
ATMV24VPN50V80MA2📄 Datasheet	$72	11	18V ~ 36V	±50V	±80mA	78%	Dual	8W	50.8×25.4×10.5
ATMV24VPN100V40MA2📄 Datasheet	$83	14	18V ~ 36V	±100V	±40mA	78%	Dual	8W	50.8×25.4×10.5
ATMV24VPN110V36MA2📄 Datasheet	$83	2	18V ~ 36V	±110V	±36mA	76%	Dual	8W	50.8×25.4×10.5
ATMV24VPN125V32MA2📄 Datasheet	$83	4	18V ~ 36V	±125V	±32mA	76%	Dual	8W	50.8×25.4×10.5
6W · Single Output · Input: 18V ~ 36V
ATMV24V300V20MA1📄 Datasheet	$72	3	18V ~ 36V	300V	20mA	78%	Single	6W	50.8×25.4×10.5
6W · Dual Output · Input: 18V ~ 36V
ATMV24VPN150V20MA2📄 Datasheet	$83	2	18V ~ 36V	±150V	±20mA	75%	Dual	6W	50.8×25.4×10.5
4W · Single Output · Input: 18V ~ 36V
ATMV24V400V10MA1📄 Datasheet	$72	3	18V ~ 36V	400V	10mA	78%	Single	4W	50.8×25.4×10.5
ATMV24V500V8MA1📄 Datasheet	$83	4	18V ~ 36V	500V	8mA	78%	Single	4W	50.8×25.4×10.5
ATMV24V600V6R7MA1📄 Datasheet	$104	1	18V ~ 36V	600V	6.7mA	78%	Single	4W	50.8×25.4×10.5
4W · Dual Output · Input: 18V ~ 36V
ATMV24VPN40V100MA2📄 Datasheet	$72	—	18V ~ 36V	±40V	±100mA	78%	Dual	4W	50.8×25.4×10.5
ATMV24VPN200V10MA2📄 Datasheet	$90	2	18V ~ 36V	±200V	±10mA	78%	Dual	4W	50.8×25.4×10.5
ATMV24VPN250V8MA2📄 Datasheet	$93	3	18V ~ 36V	±250V	±8mA	75%	Dual	4W	50.8×25.4×10.5
ATMV24VPN300V6R6MA2📄 Datasheet	$104	—	18V ~ 36V	±300V	±6.6mA	71%	Dual	4W	50.8×25.4×10.5

Frequently Asked Questions – 24V Isolated DC-DC Power Modules

Q: What is the input voltage range of these 24V modules?

High-power 60W, 25W and 20W models accept 20V to 36V. All other models accept 18V to 36V (2:1 ratio). This wide range accommodates nominal 24V bus systems with typical line and load variation.

Q: What output voltages are available?

Single-output models range from 50V to 600V DC. Dual (bipolar) output models provide ±40V to ±300V, ideal for op-amp bias rails, piezoelectric drivers, and CCD sensor supplies.

Q: Do these modules include short-circuit protection?

Yes — every ATMV24V series module includes built-in short-circuit protection, preventing damage to the module and downstream circuitry under fault conditions.

Q: What are the physical dimensions?

60W models: 100.0×60.0×30.0 mm | 20W / 25W models: 72.0×40.0×24.0 mm | 15W models: 50.8×40.8×10.1 mm | 8W and smaller: 50.8×25.4×10.5 mm

Q: What applications are these modules used in?

Common applications include scientific instruments, laser diode drivers, photodetector bias supplies, piezo actuators, industrial sensors, medical test equipment, and any system requiring a galvanically isolated high-voltage rail from a 24V bus.
