Sensor Software Demo
ATI offers a complete line of low cost inertial measurement units and inclinometers designed for accurate angle, acceleration, and motion detection. These sensors are compact, durable, and built with advanced MEMS technology to ensure stable, low noise performance in both static and dynamic environments. They are suitable for aerospace, robotics, industrial automation, structural monitoring, vehicle navigation, and other applications requiring precise and reliable motion sensing.

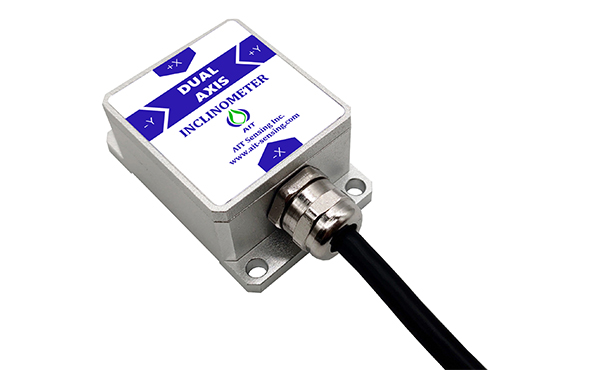

The product range includes single axis and dual axis inclinometers with RS232, CAN, RS485, Modbus, or voltage output, as well as digital IMU modules with multi axis data. Each model provides fast response, low power consumption, and high long term stability. The sensors are easy to integrate with PLC, microcontrollers, DAQ systems, and standard digital interfaces.
Users can configure parameters, monitor real time angle and acceleration data, and log measurements through the supplied communication software. With consistent performance and flexible interface options, these sensors offer a practical solution for systems requiring accurate measurement, stabilization, and closed loop control.
📄 Download IMU/VG/AH/MINS Digital Protocol PDF
💾 Download Communication Protocol Software (v3.0.3)
| Part Number | Power Supply | Operating Current |
Resolut. | Description | Size(mm) | Price | Buy Now |  |
Data. |
|---|---|---|---|---|---|---|---|---|---|
| IMU-1221-R02-232 | 5VDC | 30~40mA | 0.01°/s | Low Cost Inertial Measurement |
55 ×37 ×24 | $99 |   |
10 |  |
| TS-2312-R01-CAN | 9-36V | 20~40mA | 0.02°/s | CAN BUS Output Single Axis Inclinometer |
55 ×37 ×24 | $99 | |
10 | |
| TS-2312-R02-485 | 9-36V | 20~40mA | 0.02°/s | Digital Single Axis Inclinometer |
55 ×37 ×24 | $99 | |
10 | |
| TS-2312-R03-485 | 9-36V | 20~40mA | 0.02°/s | Modbus Single Axis Inclinometer |
55 ×37 ×24 | $99 | |
10 | |
| TS-2322-R04-10V | 12-36V | 20~60mA | 0.02°/s | Voltage Output Dual Axis Inclinometer |
90 ×40.5 ×26 | $99 | |
10 | |
| TS-3420-R01-CAN | 9-36V | 20~40mA | 0.01°/s | CAN Bus Output Dual Axis Inclinometer |
55 ×37 ×24 | $199 | |
10 | |
| TS-3420-R02-485 | 9-36V | 20~40mA | 0.01°/s | Digital Dual Axis Inclinometer |
55 ×37 ×24 | $199 | |
10 | |
| TS-3420-R03-485 | 9-36V | 20~40mA | 0.01°/s | Modbus Output Dual Axis Inclinometer |
55 ×37 ×24 | $199 | |
10 | |
| TS-6423-R03-485 | 9-36V | 20~40mA | 0.001°/s | Modbus Output Dual Axis Inclinometer |
55 ×37 ×24 | $399 | |
10 | |
| TS-6613-R02-485 | 9-36V | 20~40mA | 0.001°/s | Digital Single Axis Inclinometer |
90 ×40.5 ×26 | $399 | |
10 | |
| TS-6623-R06-024 | 12-36V | 20~60mA | 0.001°/s | Current Output Dual Axis Inclinometer |
90 ×40.5 ×26 | $399 | |
10 | |
| TS-8726-R02-485 | 9-36V | 20~40mA | 0.003°/s | Dual Axis Inclinometer |
103.8 ×55.4 ×26 | $799 | |
10 | |
| TS-9827-R02-485 | 9-36VDC | 50/40mA | 0.001°/s | Digital Output High-precision Dual Axis Inclinometer |
103.8 ×55.4 ×26 | $1599 | |
10 | |
| IMU-1221-R02-485 | 5VDC | 30~40mA | 0.01°/s | Low Cost Inertial Measurement |
55 ×37 ×24 | $99.00 |
|
5 | |
| EC-3243-R02-232 | 5-12V | 30~40mA | 0.01°/s | Tilt-Compensated 3D Electronic Compass supports RS232 |
55 ×37 ×24 | $310.00 |
|
0 | |
| EC-3243-R02-485 | 5-12V | 30~40mA | 0.01°/s | Tilt-Compensated 3D Electronic Compass supports RS485 |
55 ×37 ×24 | $310.00 |
|
0 | |
| EC-3243-R02-TTL | 5-12V | 30~40mA | 0.01°/s | Tilt-Compensated 3D Electronic Compass supports TTL interfaces |
55 ×37 ×24 | $310.00 |
|
0 | |
| DI-3144-R00-H1 | 9-36V | 30~60mA | 0.018°/s | Multiple Redundant Dynamic Tilt Sensors Dual axle horizontal, mounted on the body |
70 ×80 ×27.9 | $569.00 |
|
3 | |
| DI-3144-R00-V1 | 9-36V | 30~60mA | 0.018°/s | Multiple Redundant Dynamic Tilt Sensors Double shaft vertical, mounted in bucket |
70 ×80 ×27.9 | $569.00 |
|
2 | |
| DI-3144-R00-V2 | 9-36V | 30~60mA | 0.018°/s | Multiple Redundant Dynamic Tilt Sensors Double shaft vertical, mounted in the lower arm |
70 ×80 ×27.9 | $569.00 |
|
0 | |
| EC-6313-R08-TTL | 5V | 30~40mA | - | High-Precision 3D Electronic Compass Communication Mode: TTL |
33 ×31 ×13.55 | $2,599.00 |
|
0 | |
| EC-6313-R08-232 | 5V | 30~40mA | - | High-Precision 3D Electronic Compass Communication Mode: 232 |
33 ×31 ×13.55 | $2,599.00 |
|
2 | |
| FG-1321-R07 | - | - | - | Mini 3 Axis Fiber Optic Communication Mode: RS422 |
77 ×65 ×51 | $21,999.00 |
|
0 | |
| FG-1151-R07 | - | - | - | Single Axis Fiber Optic Gyro |
50 ×50 ×36.5 | $6,899.00 |
|
0 | |
| INS-4533-R10 | - | - | - | High-precision Fiber Optic Integrated Navigation System |
145 ×121.5 ×125 | $99,999.00 |
|
0 | |
| Part Number | Price | Datasheet |
|---|---|---|
| IMU-1221-R02-232 | $169.2 | |
| TS-2312-R01-CAN | 169.2 | |
| TS-2312-R02-485 | $169.2 | |
| TS-2312-R03-485 | $169.2 | |
| TS-2322-R04-10V | $169.2 | |
| TS-3420-R01-CAN | $254.2 | |
| TS-3420-R02-485 | $254.2 | |
| TS-3420-R03-485 | $254.2 | |
| TS-6423-R03-485 | $424.2 | |
| TS-6613-R02-485 | $424.2 | |
| TS-6623-R06-024 | $424.2 | |
| TS-8726-R02-485 | $849.2 | |
| TS-9827-R02-485 | $1699.2 | |
| IMU-1221-R02-485 | $99.00 | |
| EC-3243-R02-232 | $310.00 | |
| EC-3243-R02-485 | $310.00 | |
| EC-3243-R02-TTL | $310.00 | |
| DI-3144-R00-H1 | $569.00 | |
| DI-3144-R00-V1 | $569.00 | |
| DI-3144-R00-V2 | $569.00 | |
| EC-6313-R08-TTL | $2,599.00 | |
| EC-6313-R08-232 | $2,599.00 | |
| FG-1321-R07 | $21,999.00 | |
| FG-1151-R07 | $6,899.00 | |
| INS-4533-R10 | $99,999.00 | |
