AC-DC High Voltage Power Supply

Click to View

High Voltage Power Supply Video Presentation

FEATURES
High precision
High efficiency
High output voltage stability
Linear modulation of output voltage
Low cost
Overcurrent protection
Short circuit protection
Digital display for output voltage

DESCRIPTIONS

Connect AC 100~240V input, and then power on. When the potentiometer is in “0”, open the high voltage switch, and then adjust the potentiometer clockwise. Observe the digital display readings, and high voltage power supply output voltage = the reading × 10V. When the required voltage is achieved, then rotate the potentiometer lock clockwise to lock the potentiometer. This prevents the output voltage changes caused by rotating the potentiometer by accident. High voltage connection wire is used for high voltage output.

We can design and manufacture customized products based on customers' requirements.

Selection Guide for AC-DC High Voltage Power Supply.

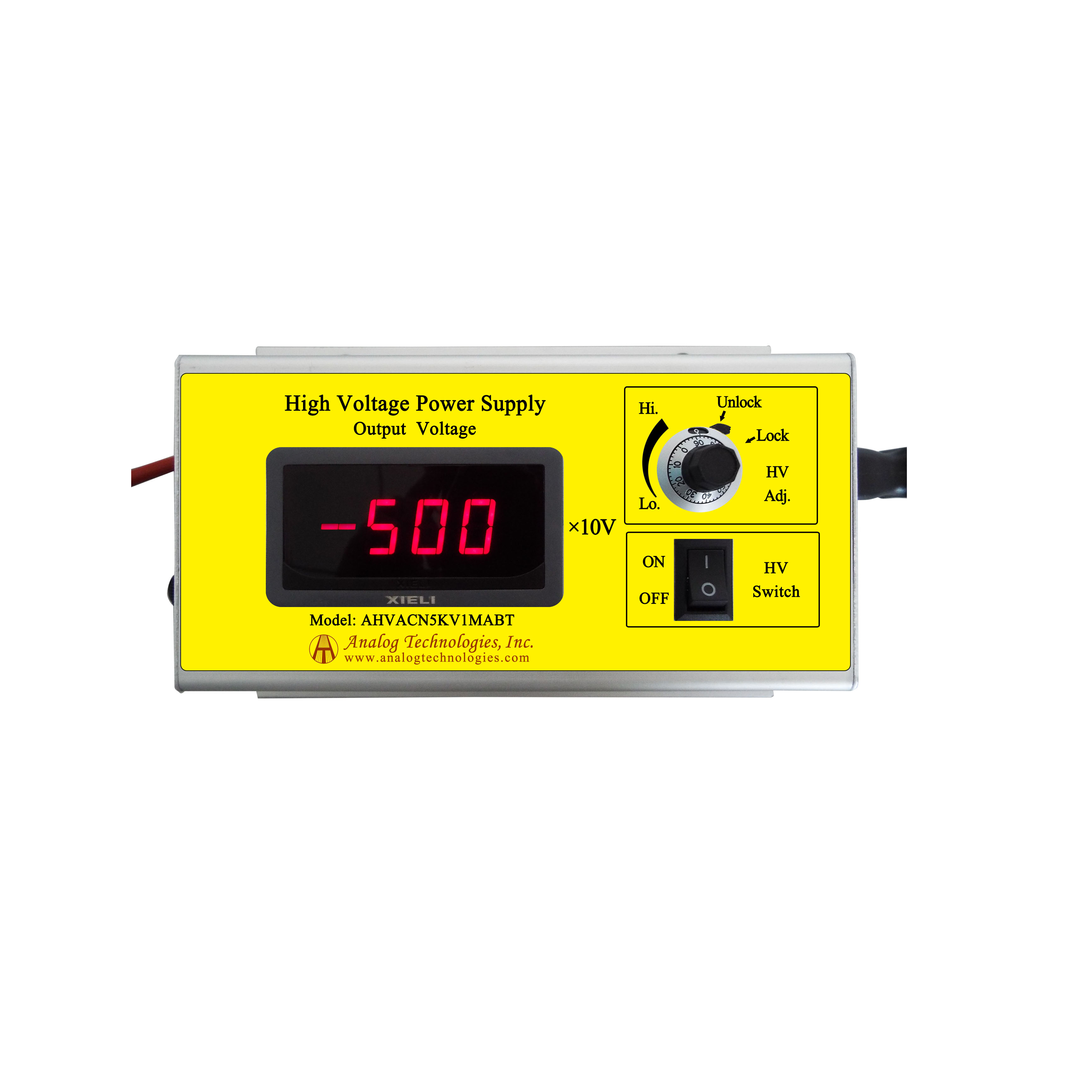

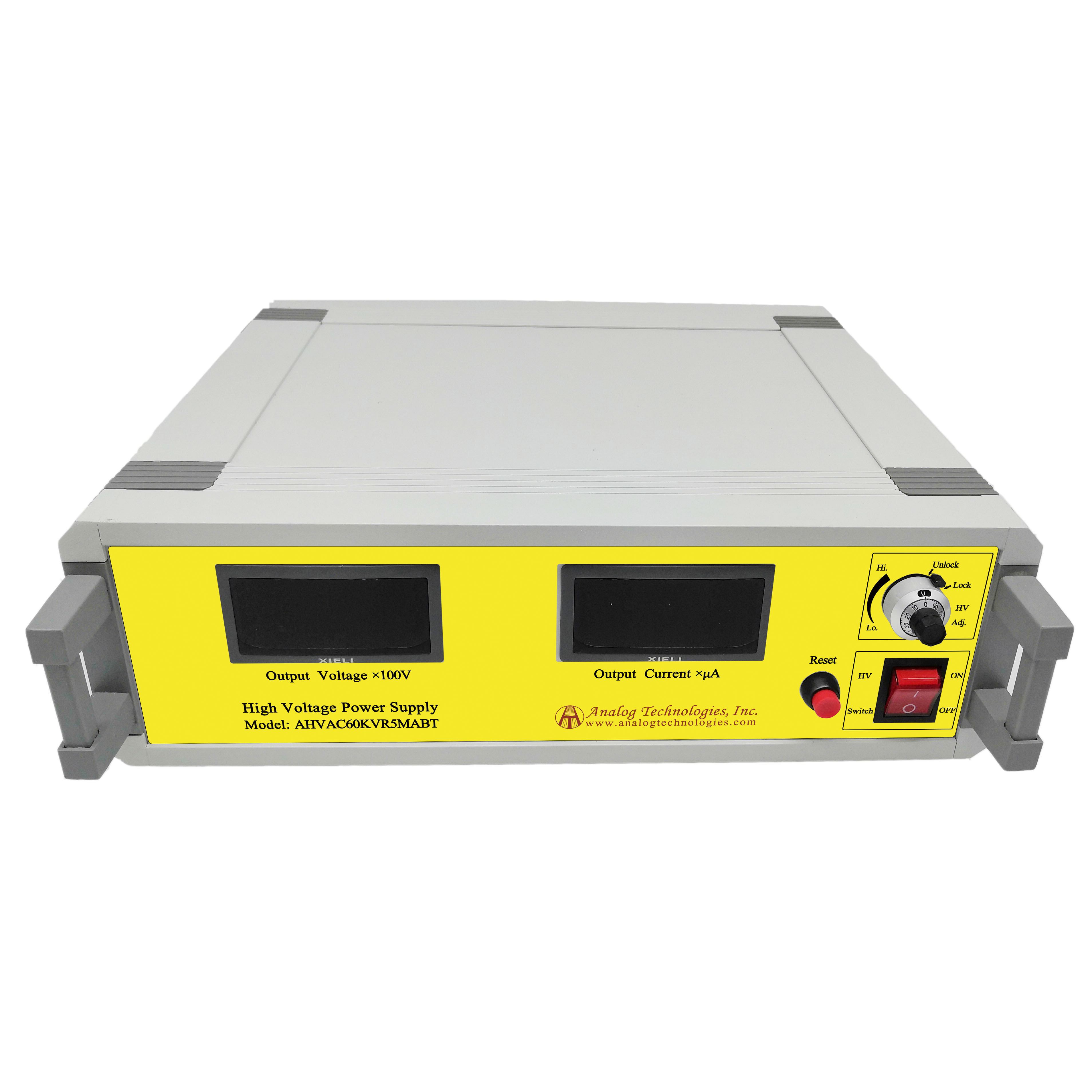

Part Number	Unit Price	Qty. Avail.	Input Voltage	Output Voltage	Max. Output Current	Dimension (mm)	Package
AHVAC5KV100UABT	$399	6	90 ~ 230V	5kV	0.1mA	180×120×50	Wire
AHVAC5KV1MABT	$389	8	100 ~ 240V	5kV	1mA	180×120×50	Wire
AHVAC5KV5MABT	$489	0	100 ~ 240V	5kV	5mA	210×120×50	Wire
AHVAC10KVR5MABT	$419	2	90 ~ 230V	10kV	0.5mA	180×120×50	Wire
AHVAC10KV5MABT	$999	0	90 ~ 230V	10kV	5mA	350×300×125	Wire
AHVAC10KV10MABT	$1299	0	90 ~ 230V	10kV	10mA	350×300×125	Wire
AHVAC15KV1MABT	$549	2	90 ~ 230V	15kV	1mA	180×120×50	Wire
AHVAC15KVR5MABT	$449	3	90 ~ 230V	15kV	0.5mA	180×120×50	Wire
AHVAC20KVR5MABT	$469	5	90 ~ 230V	20kV	0.5mA	210×120×50	Wire
AHVAC20KV5MABT	$1399	0	90 ~ 230V	20kV	5mA	350×300×125	Wire
AHVAC25KVR5MABT	$489	4	90 ~ 230V	25kV	0.5mA	210×120×50	Wire
AHVAC30KVR5MABT	$559	6	90 ~ 230V	30kV	0.5mA	210×120×50	Wire
AHVAC40KVR5MABT	$919	0	90 ~ 230V	40kV	0.5mA	350×300×125	Wire
AHVAC50KVR5MABT	$969	0	90 ~ 230V	50kV	0.5mA	350×300×125	Wire
AHVAC60KVR5MABT	$1199	0	90 ~ 230V	60kV	0.5mA	350×300×125	Wire
AHVACN5KV1MABT	$389	4	100 ~ 240V	-5kV	1mA	180×120×50	Wire
AHVACN5KV5MABT	$489	0	100 ~ 240V	-5kV	5mA	210×120×50	Wire
AHVACN5KV100UABT	$399	1	90 ~ 230V	5kV	0.1mA	180×120×50	Wire
AHVACN10KVR5MABT	$419	3	90 ~ 230V	-10kV	0.5mA	180×120×50	Wire
AHVACN10KV5MABT	$999	0	90 ~ 230V	-10kV	5mA	350×300×125	Wire
AHVACN10KV10MABT	$1299	0	90 ~ 230V	-10kV	10mA	350×300×125	Wire
AHVACN15KVR5MABT	$449	2	90 ~ 230V	-15kV	0.5mA	180×120×50	Wire
AHVACN15KV1MABT	$549	2	90 ~ 230V	-15kV	1mA	180×120×50	Wire
AHVACN20KVR5MABT	$469	3	90 ~ 230V	-20kV	0.5mA	210×120×50	Wire
AHVACN20KV5MABT	$1399	0	90 ~ 230V	20kV	5mA	350×300×125	Wire
AHVACN25KVR5MABT	$489	3	90 ~ 230V	-25kV	0.5mA	210×120×50	Wire
AHVACN30KVR5MABT	$559	5	90 ~ 230V	-30kV	0.5mA	210×120×50	Wire
AHVACN40KVR5MABT	$919	0	90 ~ 230V	-40kV	0.5mA	350×300×125	Wire
AHVACN50KVR5MABT	$969	0	90 ~ 230V	-50kV	0.5mA	350×300×125	Wire
AHVACN60KVR5MABT	$1199	0	90 ~ 230V	-60kV	0.5mA	350×300×125	Wire
