Low Voltage 24V Input Isolated DC-DC Power Modules – APAIDC24V5V1WSM

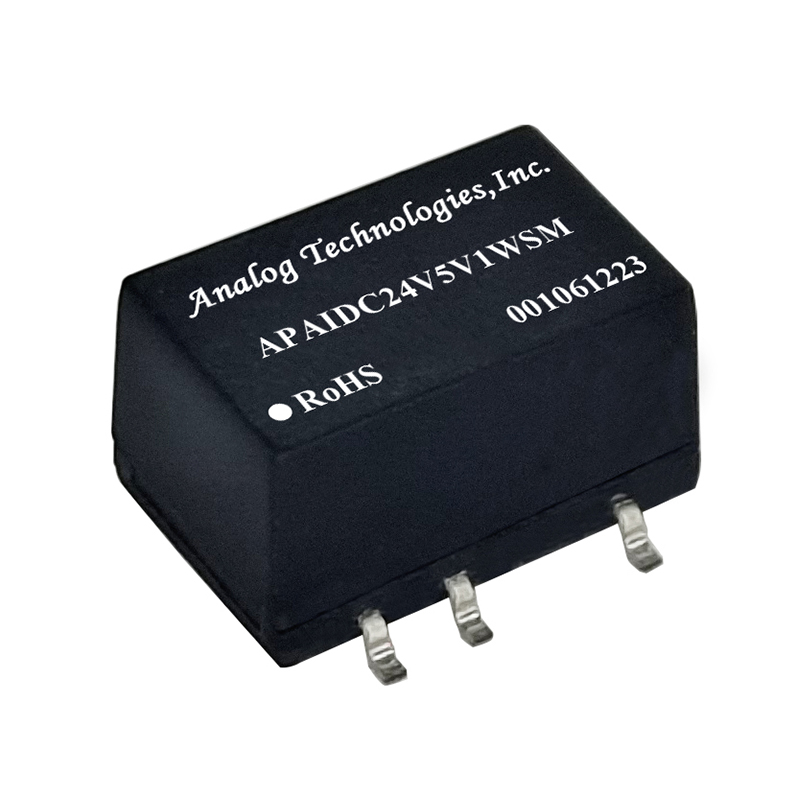

APAIDC24V5V1WSM 24V to 5V 1W Isolated DC-DC Converter 1500VDC

DESCRIPTION

The APAIDC24V5V1WSM is a compact 1W isolated DC-DC converter that steps a 24V input down to a 5V output (proportional to VIN) with 1500VDC galvanic isolation, 86% typical efficiency, 450kHz switching, and a wide −50°C to +115°C operating range — all in a 12.7 × 11 × 7.13 mm surface-mount package.

Key Features: 21.6V–26.4V input, 5V / 200mA output; 1500VDC isolation; 86% efficiency; 450kHz switching; −50°C to +115°C operating range; MTBF 30×105 hours; UL94V-0 SMD package.

Typical Applications: telecom & networking equipment, industrial automation and PLCs, medical instrumentation, renewable energy systems, and automotive electronics.

Selection Guide for Isolated DC-DC Power Modules
Image Part Number Data-
sheet		 Unit
Price
APAIDC24V5V1WSM 24V to 5V Isolated DC-DC Converter APAIDC24V5V1WSM APAIDC24V5V1WSM Isolated DC-DC Converter Datasheet $4
