Home > Products > Laser Drivers> High Voltage High Current 25A Laser Drivers

High Voltage High Current 25A Laser Drivers

Part Number	1-9 PCs	10-49 PCs	50-199 PCs	200-499 PCs	500-999 PCs	≥1000 PCs
ATLS25A219D	$287.60	$276.05	$264.50	$241.40	$218.30	$166.95
ATLS25A219CH	$299.15	$287.60	$276.05	$252.95	$229.85	$177.45
ATLS25A219GUI	$333.80	$322.25	$310.70	$287.60	$264.50	$208.95

Part Number	Unit Price	Buy Now	Datasheet
ATLS25A219D	$287.60
ATLS25A219CH	$299.15
ATLS25A219GUI	$333.80

Selection Guide

Part Number	V_IN	V_OUT	I_OUT	Difference
ATLS25A219D	8.5V-40V	0.1×V_VPS to 0.8×V_VPS	25A	PCB Mount
ATLS25A219CH	8.5V-40V	0.1×V_VPS to 0.8×V_VPS	25A	Chassis Mount
ATLS25A219GUI	8.5V-40V	0.1×V_VPS to 0.8×V_VPS	25A	Chassis Mount with a GUI interface

DESCRIPTION:

This series laser drivers include three types, ATLS25A219D, ATLS25A219CH and ATLS25A219GUI. These laser drivers feature wide input and output voltage range, high output current capability, high efficiency, low output noise, wide modulation bandwidth, and small size. The wide output voltage range, 0.1×V_VPS ~ 0.8×V_VPS, allows driving one or multiple serial laser diodes at the same time, for up to 25A well controlled current at high efficiency.

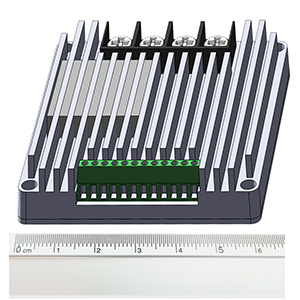

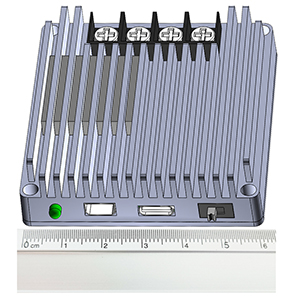

ATLS25A219D is in DIP package and has a compact size. ATLS25A219CH is chassis mounted, with good heat dissipation performance, and can work under high power without adding heat sink. ATLS25A219GUI is chassis mounted and has a GUI interface for easy operation.
