High Voltage Low Noise Laser Driver ATLSxA118

These high voltage low noise laser drivers can be used to drive QCLs (Quantum Cascade Laser) for radar, medical diagnostics, spectroscopy, chemical analysis, general measurement systems, etc.

Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 10A
Ultra low noise: 12.5μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Datasheet with
Pricelist
ATLS10A118 ATLS10A118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 3A
Ultra low noise: 3.75μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist
ATLS3A118 buy now buy now ATLS3A118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 2A
Ultra low noise: 2.5μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist

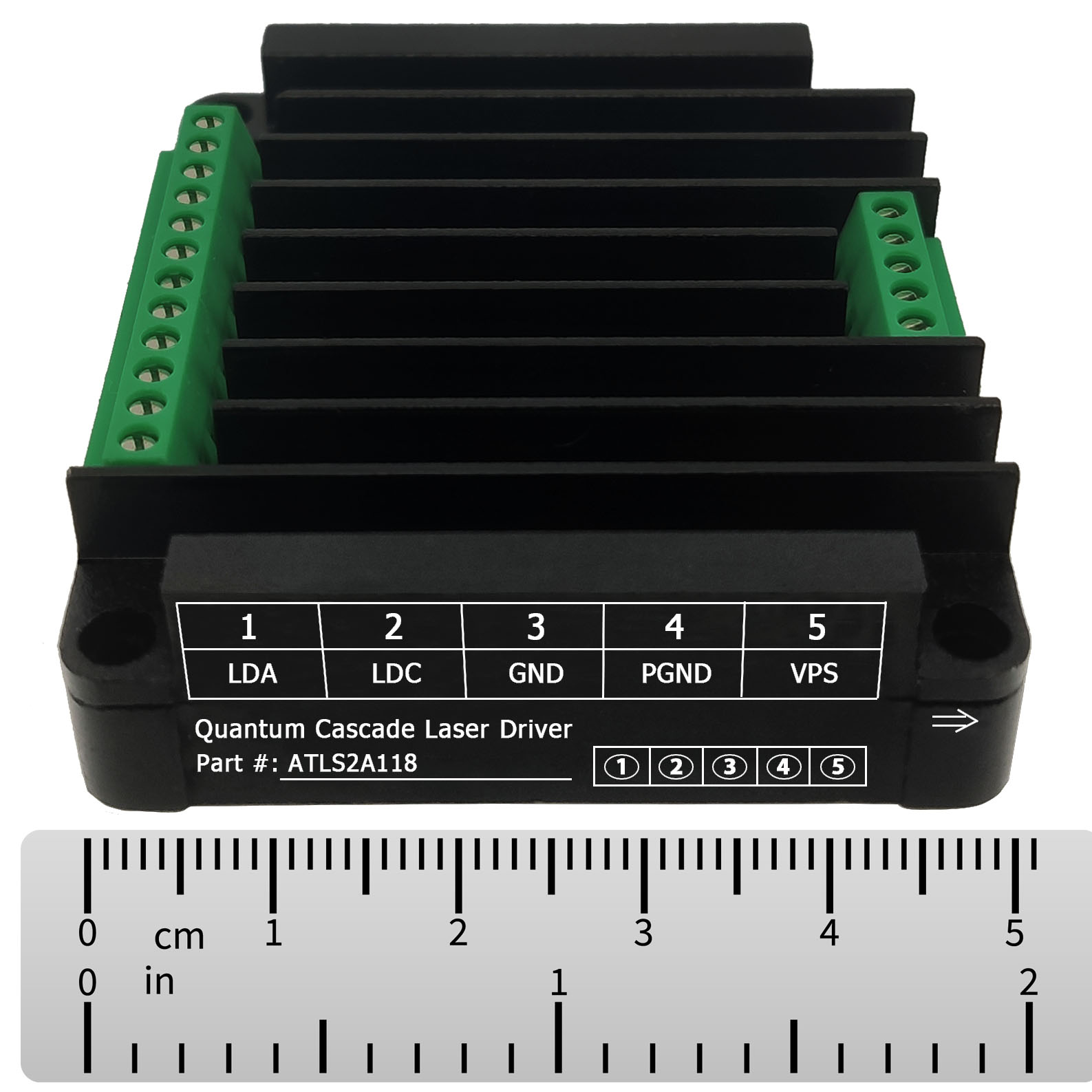

ATLS2A118 buy now buy now ATLS2A118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 1A
Ultra low noise: 1.25μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist
ATLS1A118 buy now buy now ATLS1A118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 500mA
Ultra low noise: 0.5μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist
ATLS500MA118 buy now buy now ATLS500MA118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 200mA
Ultra low noise: 0.25μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist

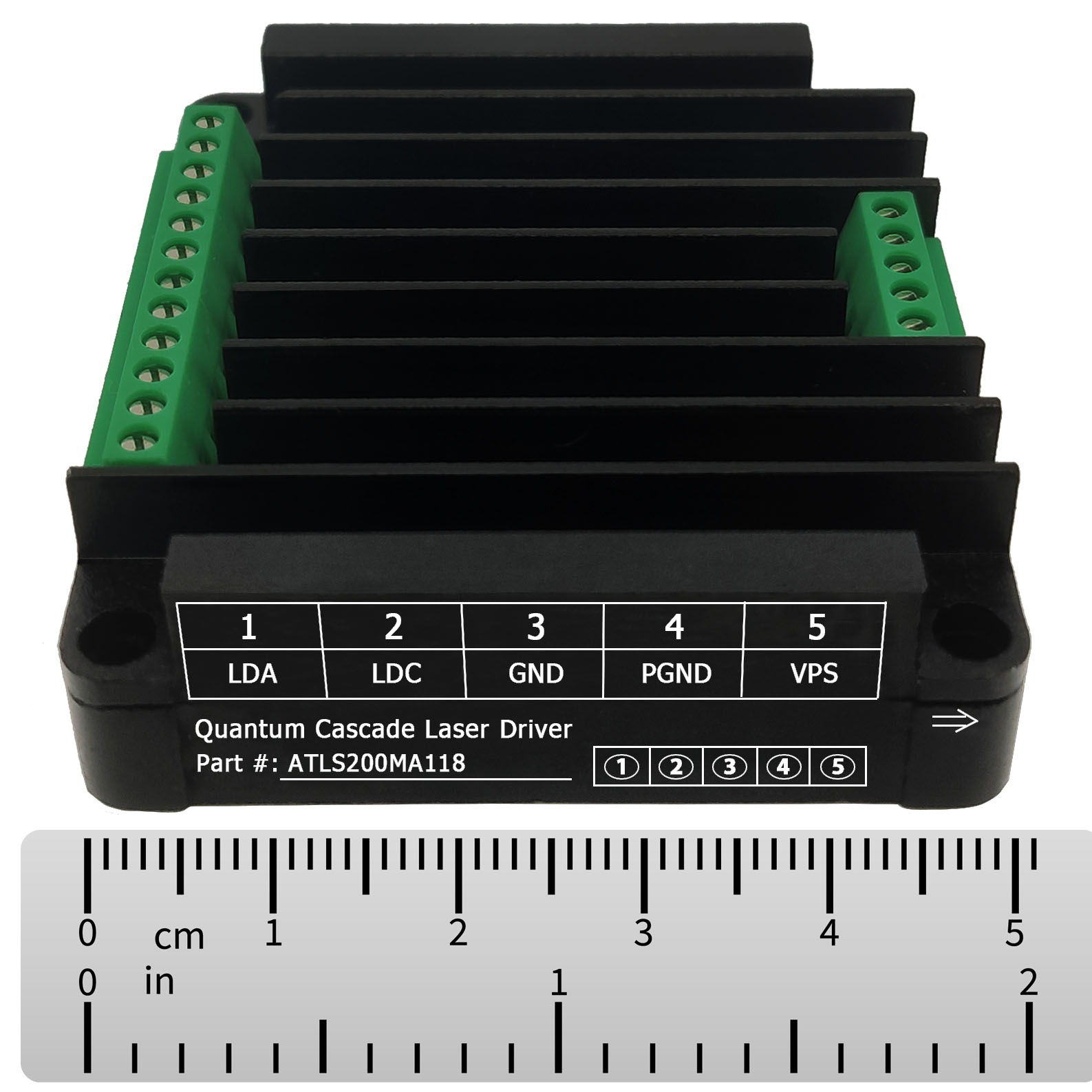

ATLS200MA118 buy now buy now ATLS200MA118
Click to View

Input voltage range: 10V~28V
Output voltage range: 1V ~ (VVPS – 4)V
Maximum output current: 100mA
Ultra low noise: 0.125μAP-P@0.1Hz ~ 10Hz
Input voltage polarity reverse protection
Under-voltage protection
Current limit
Over-temperature protection
High absolute accuracy: <0.1% @ 0°C~50°C ambient temperature
High stability: <20ppm/°C
Complete shielding
Compact size: 49.4mm(L)×45mm(W)×14mm(H)

Part Number Buy Now Datasheet with
Pricelist

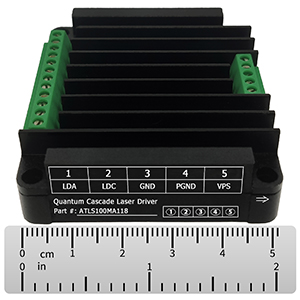

ATLS100MA118 buy now buy now ATLS100MA118
