High Voltage High Current TEC Controllers

Based on our low- and medium-power TEC controllers, Analog Technologies has designed a family of high voltage, high current TEC (Peltier) controllers for high-power applications (>100W). The series spans 5.5V–28V power-supply rails and delivers up to 15A of bidirectional output current, with greater than 92% efficiency, ±0.001°C temperature stability, Auto-PID compensation and zero EMI. Most models run at full output without an external heat sink. Pick the model that matches your supply voltage and current requirement below.

High Voltage High Current TEC Controllers – TEC28V15A Series

TEC28V15A high voltage high current TEC controller module – up to 25V supply, 15A, ±20V output, Auto-PID

The TEC28V15A series is the highest-power member of the family — powered by 5.5V to 25V DC and delivering up to 15A of bidirectional output current with ±20V output. It achieves >92% efficiency at full load (V_PS=28V, V_TEC=14V, I_TEC=15A), ±0.001°C temperature stability, and zero EMI. Both DIP (TEC28V15AD) and SMT (TEC28V15AS) packages are offered, each with an optional built-in Auto-PID compensation network (TEC28V15ADAPID / TEC28V15ASAPID). Currently in R&D — contact us for sample availability.

Part Number	Maximum Current Amplitude	Package		Auto PID	Pulsed Voltage Reference for Thermistor Self-Heating Reduction		Datasheet	Unit Price	Stock Status	Buy Now
Part Number	Maximum Current Amplitude	DIP	SMT	Auto PID	Synchronization Output SNCO	Voltage Reference 4VRS	Datasheet	Unit Price	Stock Status	Buy Now
TEC28V15AD	15A	√		No		√		Coming Soon	—	Coming Soon
TEC28V15AS			√	No	√			Coming Soon	—	Coming Soon
TEC28V15ADAPID		√		Yes		√		Coming Soon	—	Coming Soon
TEC28V15ASAPID			√	Yes	√			Coming Soon	—	Coming Soon

Part Number	Datasheet	Buy Now
TEC28V15AD		Coming Soon
TEC28V15AS		Coming Soon
TEC28V15ADAPID		Coming Soon
TEC28V15ASAPID		Coming Soon

High Voltage High Current TEC Controllers – TEC24V10A Series

TEC24V10A high voltage high current TEC controller module – 24V, ±10A, ±23.5V output, Auto-PID

The TEC24V10A series TEC controllers are powered by a power supply of 5.5V to 24V and deliver up to ±10A of bidirectional output current with an output voltage range of 0 to ±23.5V. They achieve >92% efficiency and feature thermal pads underneath the module for built-in heat sinking — no external heat sink is required for output currents below 8A. They come with Auto PID control firmware, so no manual tuning of the compensation network is needed. If preferred, a traditional analog compensation network can still be utilized after manually tuning the component values to match the thermal load characteristics.

Part Number	Maximum Current Amplitude	Package		Auto PID	Pulsed Voltage Reference for Thermistor Self-Heating Reduction		Datasheet	Unit Price	Stock Status	Buy Now
Part Number	Maximum Current Amplitude	DIP	SMT	Auto PID	Synchronization Output SNCO	Voltage Reference 4VRS	Datasheet	Unit Price	Stock Status	Buy Now

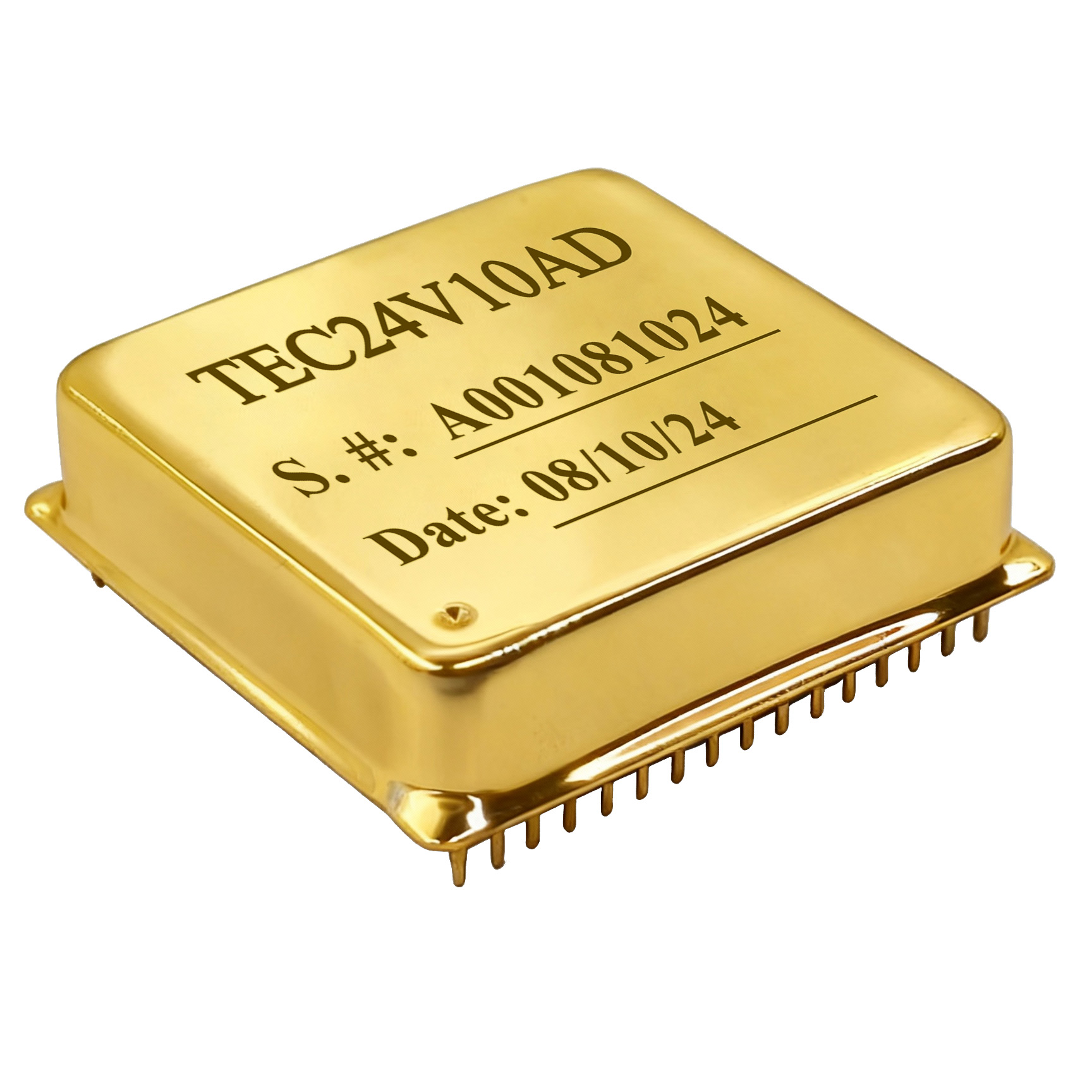

TEC24V10AD	10A	√		No		√		Coming Soon	—	Coming Soon
TEC24V10ADAPID	10A	√		Yes		√		Coming Soon	—	Coming Soon

Part Number	Datasheet	Buy Now
TEC24V10AD		Coming Soon
TEC24V10ADAPID		Coming Soon

High Voltage High Current TEC Controllers – TEC18V15A Series

The TEC18V15A series TEC controllers can be powered by a power supply of 5.5V to 18V voltage and output up to 15A current with +/-14.5V voltage span. It can achieve a high efficiency of up to 92% - no external heat sink is required to operate. They come with auto PID control firmware, no manual tuning for the compensation network is needed. If preferred, traditional analog compensation network can still be utilized after manual tuning the component values for matching the thermal load characteristics. Datasheets and online purchase links are listed in the table below.

Part Number	Maximum Current Amplitude	Package		Auto PID	Pulsed Voltage Reference for Thermistor Self-Heating Reduction		Datasheet	Unit Price	Stock Status	Buy Now
Part Number	Maximum Current Amplitude	DIP	SMT	Auto PID	Synchronization Output SNCO	Voltage Reference 4VRS	Datasheet	Unit Price	Stock Status	Buy Now
TEC18V15AD	15A	√		No		√		$199	6
TEC18V15ADAPID	15A	√		Yes		√		$249	0
TEC18V10AD	10A	√		No		√		$189	25
TEC18V10ADAPID	10A	√		Yes		√		$239	0
TEC18V6AD	6A	√		No		√		$179	0
TEC18V6ADAPID		√		Yes		√		$229	0
TEC18V6ASAPID			√	Yes		√		$229	0

Part Number	Datasheet	Buy Now
TEC18V15AD
TEC18V15ADAPID
TEC18V10AD
TEC18V10ADAPID
TEC18V6AD
TEC18V6ADAPID

High Voltage High Current TEC Controllers – TEC12V9A Series

The TEC12V9A series TEC controllers can be powered by a power supply of 5.5V to 12V voltage and output up to 9A current with +/-9.6V voltage span. It can achieve a high efficiency of up to 92% - no external heat sink is required to operate. They come with auto PID control firmware, no manual tuning for the compensation network is needed. If preferred, traditional analog compensation network can still be utilized after manual tuning the component values for matching the thermal load characteristics. Datasheets and online purchase links are listed in the table below.

Part Number	Maximum Current Amplitude	Package		Auto PID	Pulsed Voltage Reference for Thermistor Self-Heating Reduction		Datasheet	Price	Stock Status	Buy Now
Part Number	Maximum Current Amplitude	DIP	SMT	Auto PID	Synchronization Output SNCO	Voltage Reference 4VRS	Datasheet	Price	Stock Status	Buy Now
TEC12V9AD	9A	√		No		√		$189	1
TEC12V9ADAPID	9A	√		Yes		√		$239	0
TEC12V6AD	6A	√		No		√		$179	0
TEC12V6ADAPID	6A	√		Yes		√		$229	0

Part Number	Datasheet	Buy Now
TEC12V9AD
TEC12V9ADAPID
TEC12V6AD
TEC12V6ADAPID

High Voltage High Current TEC Controllers – TEC9V7A Series

The TEC9V7A series TEC controllers feature a high output voltage ±7.2V, and the maximum output current is 7A. They come with auto PID control firmware, no manual tuning for the compensation network is needed. If preferred, traditional analog compensation network can still be utilized after manual tuning the component values for matching the thermal load characteristics. Datasheets and online purchase links are listed in the table below.

Part Number	Maximum Current Amplitude	Package		Auto PID	Pulsed Voltage Reference for Thermistor Self-Heating Reduction		Datasheet	Price	Stock Status	Buy Now
Part Number	Maximum Current Amplitude	DIP	SMT	Auto PID	Synchronization Output SNCO	Voltage Reference 4VRS	Datasheet	Price	Stock Status	Buy Now
TEC9V7AD	7A	√		No		√		$179	0
TEC9V7ADAPID	7A	√		Yes		√		$229	0

Part Number	Datasheet	Buy Now
TEC9V7AD
TEC9V7ADAPID

Evaluation Board for TEC28V15A/TEC24V10A/TEC18V15A/TEC12V9A/TEC9V7A Series

Evaluation Board for TEC28V15A/TEC24V10A/TEC18V15A/TEC12V9A/TEC9V7A Series

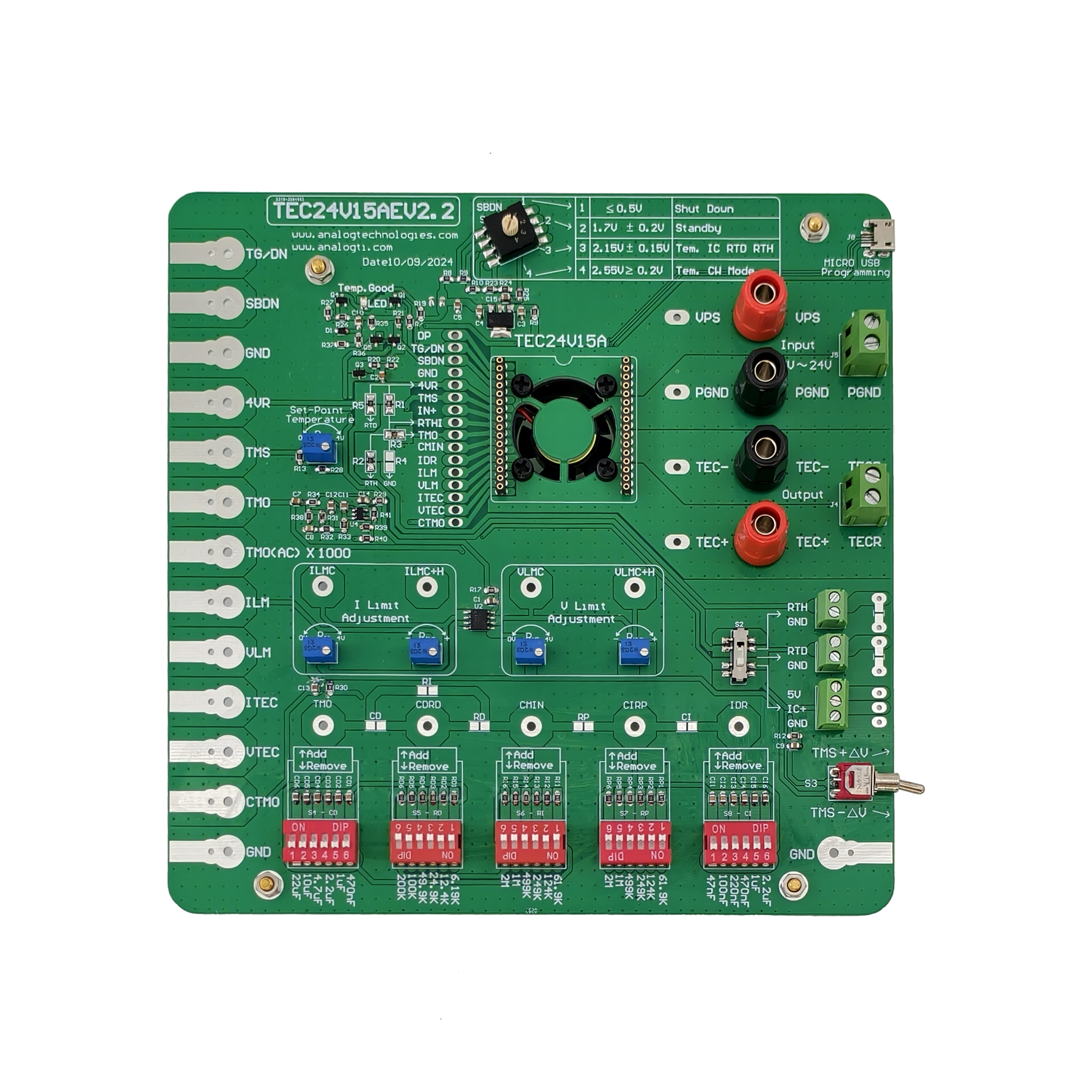

The TEC24V15AEV2.2 is the universal evaluation board for all controllers in this family — TEC28V15A, TEC24V10A, TEC18V15A, TEC12V9A and TEC9V7A. It provides a versatile interface for every measurement node, lets you set the output current limit, voltage limit and set-point temperature, and tune the compensation network (CD, RD, RI, RP, CI) to match your thermal load. Supports thermistor (NTC), RTD and IC temperature sensors with selectable continuous-wave or sample-and-hold thermistor mode. This board replaces the older TEC28V15AEV1 and TEC28V15AEV2.

Part Number	Application	Datasheet	Price	Stock Status	Buy Now
TEC24V15AEV2.2	Universal evaluation board for the TEC28V15A, TEC24V10A, TEC18V15A, TEC12V9A and TEC9V7A series TEC controllers.		$25	—

Part Number	Datasheet	Buy Now
TEC24V15AEV2.2

Frequently Asked Questions

What is a high voltage high current TEC controller?

A high voltage high current TEC controller is a power-electronics module that drives thermoelectric (Peltier) coolers for high-power thermal management. It precisely regulates the magnitude and direction of the current through the TEC to cool or heat an object, typically delivering tens of watts to several hundred watts at >90% efficiency.

Which TEC controller series should I choose?

Choose by the available power-supply voltage and the required TEC current. The TEC28V15A suits 28V rails up to 15A (highest power); TEC24V10A suits 24V rails up to 10A; TEC18V15A suits 18V rails up to 15A; TEC12V9A suits 12V rails up to 9A; TEC9V7A suits 9V rails up to 7A. All deliver >92% efficiency and ±0.001°C stability.

What is Auto PID compensation?

Auto PID is a built-in firmware feature that automatically tunes the control-loop compensation network to match the thermal load, removing the need to manually adjust analog compensation components. Part numbers ending in "APID" (for example TEC24V10ADAPID) include this feature.

Do these TEC controllers need a heat sink?

Most models in the family (TEC18V15A, TEC12V9A, TEC9V7A) deliver their maximum output current without an external heat sink, thanks to >92% efficiency. The higher-voltage TEC24V10A includes thermal pads underneath the module for built-in heat sinking and may require an external heat sink for output currents above 8A to keep its internal temperature below 85°C.
