High precision operational amplifier

CMOS Operational Amplifier AT8031

The AT8031 features low-voltage operation, rail-to-railinput and output capabilities, and an outstanding speed-to-power consumption ratio. It provides excellent bandwidth (15kHz) and a slew rate of 7.5V/ms. This operational amplifier is unity gain stable and also has an ultra-low input bias current. This device is well-suited for sensor interfaces, active filters, and portable applications. The operational amplifier AT8031 is specified for the full temperature range of −40°C to +125°C under single or dual power supplies ranging from 1.4V to 5.5V.

CMOS Operational Amplifier AT8541

The AT8541 CMOS operational amplifiers employ auto-calibration techniques to deliver exceptionally low offset voltage (7μV TYP) while maintaining near-zero drift across varying time and temperature conditions. This amplifier boasts ultralow levels of noise, offset, and power consumption. This miniature, high-precision operational amplifiers feature high input impedance and support rail-to-rail input and output swing. They boast a gain-bandwidth product of 350KHz and a slew rate of 0.16V/μs. Suitable for single or dual supplies, they can operate with voltages as low as +2V (±1V) and as high as +5.5V (±2.75V). The AT8541 is specified for the extended industrial and automotive temperature range (−40°C to 125°C). The AT8541 single amplifier is available in 5-lead SOT23-5 and SOT353(SC70-5) packages.

CMOS Operational Amplifier AT8091

The AT8091/1N(single), AT8092/2N(dual), AT8094 (quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input commonmode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V. Despite being low cost, the AT809X series provide excellent overall performance. They offer wide bandwidth to 350MHz (G = +1) along with 0.1dB flatness out to 58MHz (G = +2) and offer a typical low power of 4.2mA/amplifier.

CMOS Operational Amplifier AT8605ARTZ

The AT8605ARTZ/AT8552 (dual version & shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5μV max) and near-zero drift over time and temperature.

CMOS Operational Amplifier AT821

The AT82X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (14MHz) and slew rate of 10V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.

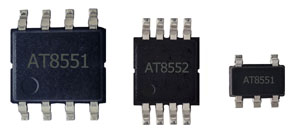

CMOS Operational Amplifier AT8551

The AT8551/AT8552 (dual version) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5uV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power.

CMOS Operational Amplifier AT8557

This AT8557 general-purpose CMOS operational amplifier provides ultralow noise, offset and power. The AT8557 uses auto-zero techniques to simultaneously provide very low offset voltage (50μV max) and near-zero drift over time and temperature.
