Part Number Price stock Datasheet
ATH10KR8 $3.1 Stop Production DATASHEET

Click to View


Glass Encapsulated for Long Term Stability & Reliability

High Stability: <0.1°C/Y

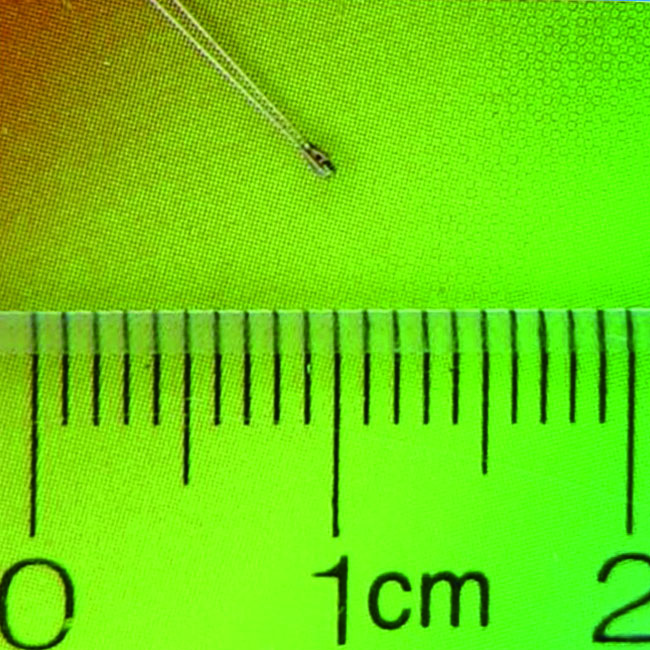

Small Size: 0.8mm·1.4mm

High Resistance Accuracy: 1%

Quick Response Time

Wide Temp. Range: -55°C to 250°C

100 % Lead (Pb)-free and RoHS Compliant



The ATH10KR8 series thermistor is consisted of three versions.The ATH10KR8T63S has the leads covered by high temperature plastic tubing and sealed by epoxy, while the ATH10KR8T63 is the non-sealed version.

The ATH10KR8 is a high precision glass encapsulated thermistor. Comparing with conventional epoxy encapsulated thermistors, ATH10KR8 presents higher long term stability and wider temperature range. In addition, it has a small sizeand short response time. In addition, there are two insulation versions available, one of which comes with leads covered by plastic tubing, the ATH10KR8T63, and the other one, the ATH10KR8T63S, is sealed between the head and the tubing. They can work under up to 140°C temperature and the latter is of liquid resistant.

Note: Free samples of thermistors at most 3 can be given after application and its approval.
Free sample application will need the follow information: contact name, company name, company website, company email, work phone number, and potential usuage volume.
