TECA1-xV-xV-DAH Series TEC Controllers

TECA1-xV-xV-DAH

MAIN FEATURES

High Efficiency: ≥90%

Maximum Output Current: 2.5A

Actual Object Temperature Monitoring

High Stability: 0.004°C

High Reliability and Zero EMI

Compact Size

100 % lead (Pb)-free and RoHS compliant

DESCRIPTIONS

The TECA1-xV-xV-DAH is an electronic module designed for driving TECs (Thermo-Electric Coolers) with high stability in regulating the object temperature, high energy efficiency, zero EMI, and small package.

This module provides interface ports for users to set the desired object temperature, i.e. set-point temperature; the maximum output voltage across TEC; and the compensation network. The compensation network compensates the high order thermal load and thus stabilizes the temperature control loop.

Voltage difference between TEMP and TEMPSP is −0.02mV ~ 0.5mV, ten times lower than that of TECA1-xV-xV-D,4~5mV.

Selection Guide for TECA1-xV-xV-DAH Series TEC Controllers
We design and manufacture customized products based on customers' requirements.
Image Part Number Data-
sheet
Unit
Price
Qty.
Avail.
Buy
Now
Input
Voltage
Note
Click to View TECA1-5V-xV-DAH
TEC controller
TEC controllers $78 30 TECA1-XV-XV-D 5V Dimension(mm): 25.4×19.9×4.5
Max. Output Voltage: VPS~5V
Temp Pin@Shut Down: Working
3 Voltage Reference@Shut Down: Working
Package Type: DIP

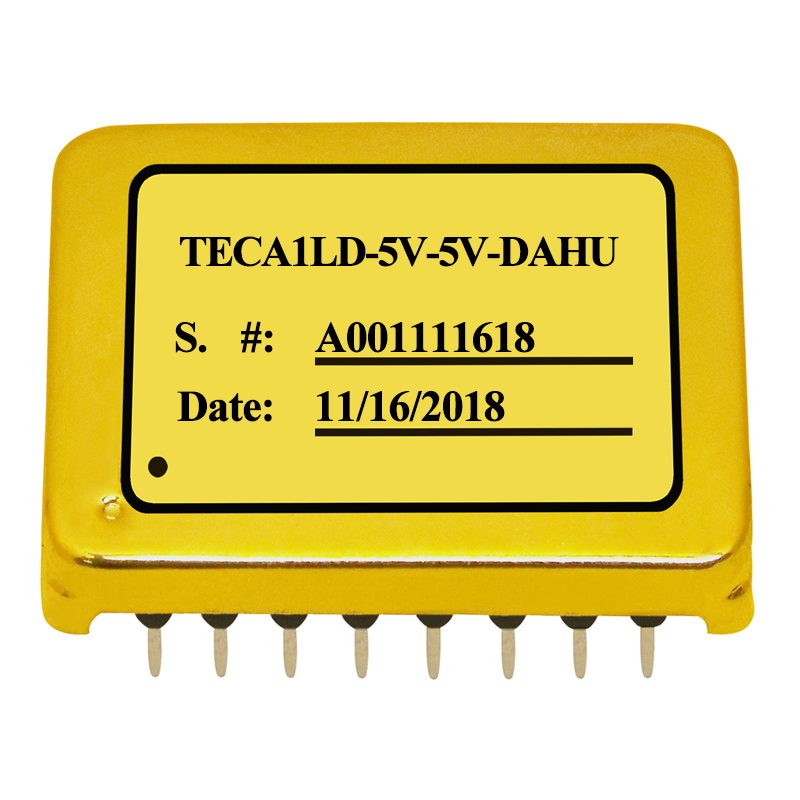

Click to View TECA1LD-5V-xV-DAH
TEC controller
EC controllers $78 15 TECA1-XV-XV-D 5V
Click to View TECA1-3V-xV-DAH
TEC controller
TEC controllers $78 0 TECA1-XV-XV-D 3V
Click to View TECA1LD-3V-xV-DAH
TEC controller
TEC controllers $78 0 TECA1-XV-XV-D 3V
Click to View TECA1-xV-xV-DAH-OP
TEC controller
TEC controllers $78 0 TECA1-XV-XV-D xV

Part Number Convention:

LD: With the “LD” suffix, it stands for the controller with an internal compensation network; while the part number TECA1-xV-xV-DAH, without the “LD” suffix, stands for the controller without the internal compensation network and external compensation network will be required for the controller to operate. For example: TECA1LD-3V-xV-DAH.

H: Maximum|V TEMP − V TEMPSP | is ≤0.5(mV)

OP: The controller does not have the two pulling - to -the- middle resistors on the TEMPSP pin, as opposed to the controllers that do have these two resistors. See the datasheet for details. The controller does not have the resistor of 500KOhm between the TEMPSP pin and a 1.5V voltage source, as opposed to the other controllers that do have this resistor. For example: TECA1-xV-xV-DAH-OP.
