FEATURES
Output Voltage Proportional to Input Voltage
Low Power Consumption
High Efficiency
High Stability
Low Turn-on Voltage 0.7VDC
Input to Output Isolation
Small Output Ripple, Time Drift, and Temperature Drift
Overload and Short Circuit Protection
Metal Enclosure for Zero EMIS
Easy Control and Installation
DESCRIPTIONS
This series of high voltage power supply comes with a quasi-sine wave oscillator, a fully enclosed transformer, an input and output filter, and a five-sided metal enclosure. These modules present low EMI/RFI, low noise, and low ripple. The input and output are galvanically isolated. Proportional to the input voltage, the output voltage has a typical turn-on voltage as low as 0.7V. It also comes with output short-circuit protection and a wide range of output voltage adjustments. This high voltage power supply also features ultra-small size, light weight, moisture proof, shockproof, metal enclosure, and zero EMIs.
Stock is shown live in our online store.
Click the button, or click a cart icon in the Buy Now column to see the stock of each model.
| Image | Part Number | Output Voltage |
Max. Output Current |
Input Voltage |
Data- sheet |
Unit Price |
Buy Now (Click to Check Stock) |
Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
 |
AHVR12V100V100MAP | 0~100V | 100mA | 0 ~ 12V |  |
$139 |   |
71.1×43.2×21.6 |
 |
AHVR12V200V50MAP | 0~200V | 50mA | 0 ~ 12V | |
$145 | |
71.1×43.2×21.6 |
 |
AHVR12V300V33R3MAP | 0~300V | 33.3mA | 0 ~ 12V | |
$149 | |
71.1×43.2×21.6 |
 |
AHVR12V500V20MAP | 0~500V | 20mA | 0 ~ 12V | |
$152 | |
71.1×43.2×21.6 |
 |
AHVR12V600V16MAP | 0~600V | 16mA | 0 ~ 12V | |
$155 | |
71.1×43.2×21.6 |
 |
AHVR12V800V12R5MAP | 0~800V | 12.5mA | 0 ~ 12V | |
$157 | |
71.1×43.2×21.6 |
 |
AHVR12V1KV10MAP | 0~1kV | 10mA | 0 ~ 12V | |
$159 | |
71.1×43.2×21.6 |
 |
AHVR12V1200V8R3MAP | 0~1200V | 8.3mA | 0 ~ 12V | |
$159 | |
71.1×43.2×21.6 |
 |
AHVR12V1500V6R6MAP | 0~1500V | 6.6mA | 0 ~ 12V | |
$165 | |
71.1×43.2×21.6 |
 |
AHVR12V2KV5MAP | 0~2kV | 5mA | 0 ~ 12V | |
$169 | |
71.1×43.2×21.6 |
 |
AHVR12V3KV3R3MAP | 0~3kV | 3.3mA | 0 ~ 12V | |
$139 | |
71.1×43.2×21.6 |
 |
AHVR12V4KV2R5MAP | 0~4kV | 2.5mA | 0 ~ 12V | |
$149 | |
71.1×43.2×21.6 |
 |
AHVR12V5KV2MAP | 0~5kV | 2mA | 0 ~ 12V | |
$199 | |
71.1×43.2×21.6 |
 |
AHVR15V200V50MAP | 0~200V | 50mA | 0.7 ~ 15V | |
$145 | |
71.1×43.2×21.6 |
 |
AHVR15V300V33R3MAP | 0~300V | 33.3mA | 0.7 ~ 15V | |
$149 | |
71.1×43.2×21.6 |
 |
AHVR15V500V20MAP | 0~500V | 20mA | 0.7 ~ 15V | |
$152 | |
71.1×43.2×21.6 |
 |

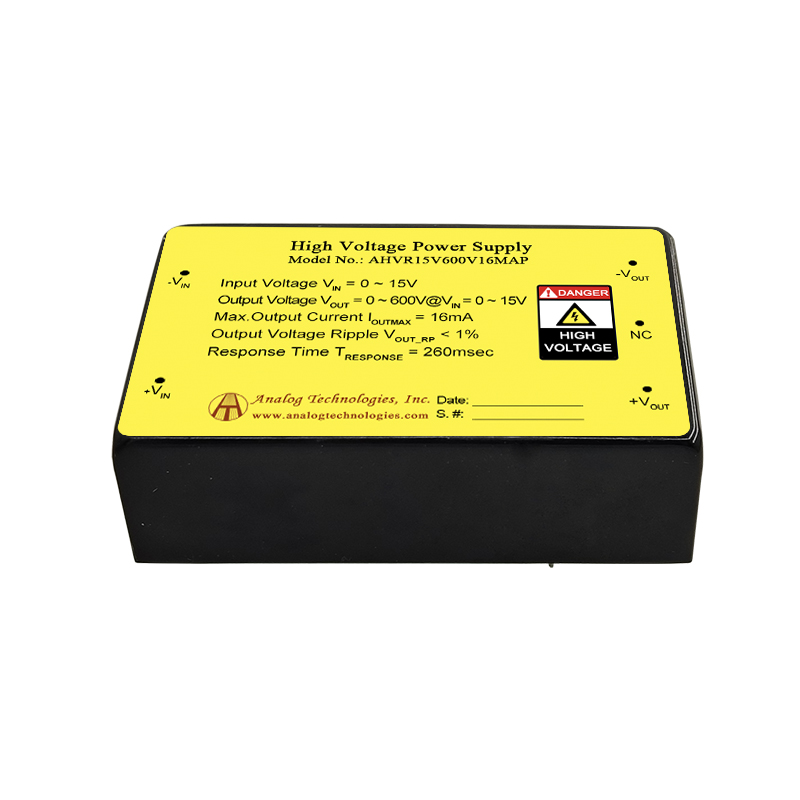

AHVR15V600V16MAP | 0~600V | 16mA | 0.7 ~ 15V | |
$155 | |
71.1×43.2×21.6 |
 |
AHVR15V800V12R5MAP | 0~800V | 12.5mA | 0.7 ~ 15V | |
$157 | |
71.1×43.2×21.6 |
 |
AHVR15V1KV10MAP | 0~1kV | 10mA | 0.7 ~ 15V | |
$159 | |
71.1×43.2×21.6 |
 |
AHVR15V1200V8R3MAP | 0~1200V | 8.3mA | 0.7 ~ 15V | |
$159 | |
71.1×43.2×21.6 |
 |
AHVR15V1500V6R6MAP | 0~1500V | 6.6mA | 0.7 ~ 15V | |
$162 | |
71.1×43.2×21.6 |
 |
AHVR15V2KV5MAP | 0~2kV | 5mA | 0.7 ~ 15V | |
$167 | |
71.1×43.2×21.6 |
 |
AHVR15V3KV3R3MAP | 0~3kV | 3.3mA | 0 ~ 15V | |
$175 | |
71.1×43.2×21.6 |
|

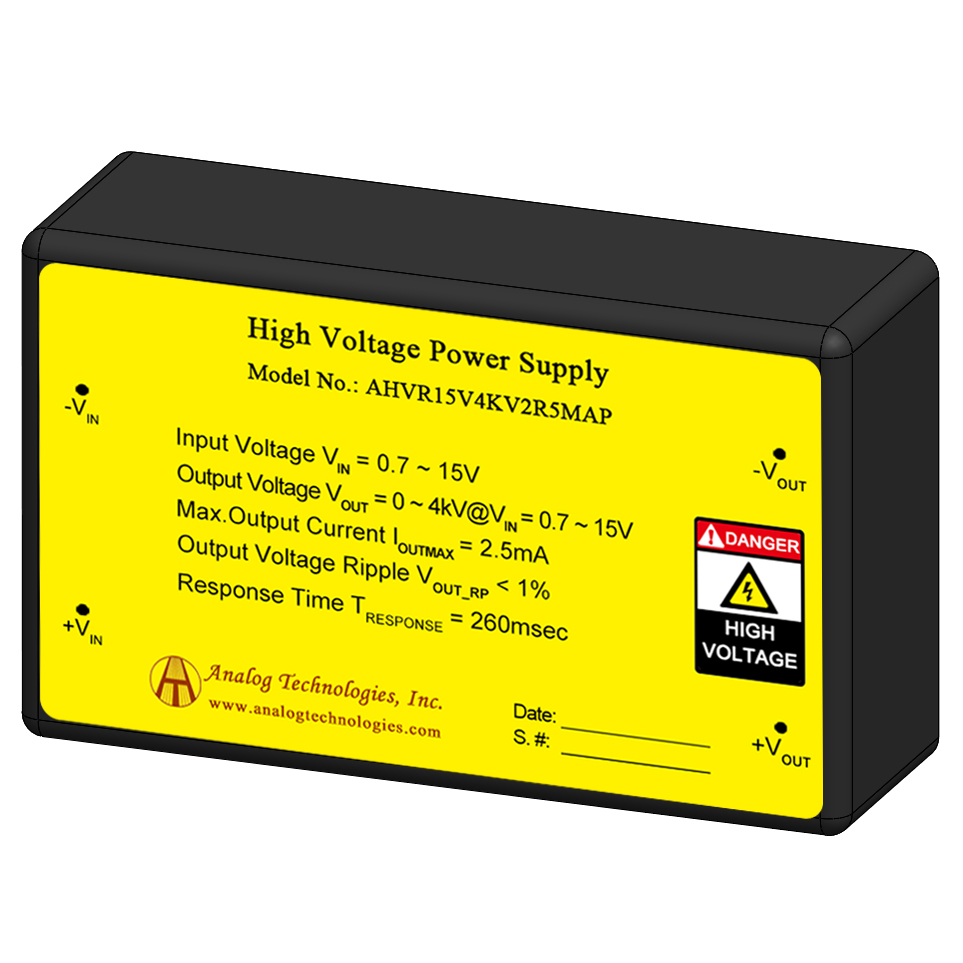

AHVR15V4KV2R5MAP | 0~4kV | 2.5mA | 0 ~ 15V | |
$185 |
|
71.1×43.2×21.6 |
 |
AHVR15V5KV2MAP | 0~5kV | 2mA | 0 ~ 15V | |
$199 | |
71.1×43.2×21.6 |
