Home > Products > Thermistors > High Stability Thermistor ATH10KL2B

High Stability Thermistor ATH10KL2B

Part Number	1-9 PCs	10-49 PCs	50-199 PCs	200-499 PCs	≥500 PCs
ATH10KL2B	$1.80	$1.60	$1.40	$1.20	$1.00	37
ATH10KL2BT70	$2.00	$1.80	$1.60	$1.40	$1.20	37
ATH10KL2BT70S	$2.20	$2.00	$1.80	$1.60	$1.40	18

Part Number	Price	Buy Now	Datasheet
ATH10KL2B	$1.80
ATH10KL2BT70	$2.00
ATH10KL2BT70S	$2.20

FEATURES

Glass Encapsulated for Long Term Stability & Reliability

High Resistance Accuracy: 1%

Maximum Temp. Range: -40°C to 270°C

Packaged in Extra Small Ring Lug

100 % Lead (Pb)-free and RoHS Compliant

APPLICATION

Temperature sensing for laser diodes, optical components, etc.

Note: Up to three Free samples of thermistors may be requested by application approval.
To apply for free thermistor samples, please send the following information to us: Contact Name, Company Name, Company Website, Company Email, Work Phone Number, and product potential usage volume.

DESCRIPTION:

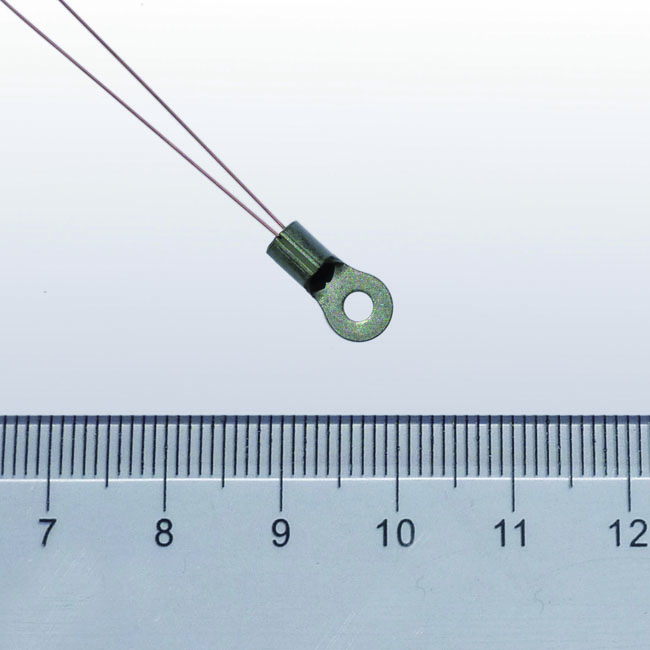

The ATH10KL2B is a thermistor assembly with a glass encapsulated thermistor packaged in an extra compact ring lug. The ATH10KL2B series thermistor consists of three versions, ATH10KL2B, ATH10KL2BT70 and ATH10KL2BT70S. The ATH10KL2B has bare leads coated with copper, the ATH10KL2BT70S has the leads covered by high temperature plastic tubing and sealed by epoxy, while the ATH10KL2BT70 is the non-sealed version. Compared to conventional assemblies containing epoxy encapsulated thermistors, ATH10KL2B series thermistor presents higher long term stability, higher reliability and wider temperature range. In addition, it is a small size and has a short response time.
The ATH10KL2B series thermistor can be used to measure the temperature of laser diodes, optical components, etc., with high accuracy and long-term stability.
