Home > Products > Thermistors > High Stability Miniature Thermistor

High Stability Miniature Thermistor

Part Number	1-9 PCs	10-49 PCs	50-199 PCs	200-499 PCs	≥500 PCs
ATH100KL2A	$3.50	$3.30	$3.10	$2.90	$2.70	21
ATH100KL2AT63	$3.70	$3.50	$3.30	$3.10	$2.90	21
ATH100KL2AT63S	$3.90	$3.70	$3.50	$3.30	$3.10	9

Part Number	Price	Buy Now	Datasheet
ATH100KL2A	$3.50
ATH100KL2AT63	$3.70
ATH100KL2AT63S	$3.90

MAIN FEATURES

Glass Encapsulated for Long Term Stability & Reliability

High Stability: <0.1 C/Y

High Resistance Accuracy: 1%

Wide Temp. Range: -55°C to 250 °C

Packaged in Extra Small Ring Lug

100 % Lead (Pb)-free and RoHS Compliant

Note: Up to three Free samples of thermistors may be requested by application approval. To apply for free thermistor samples, please send the following information to : Contact Name, Company Name, Company Website, Company Email, Work Phone Number, and product potential usage volume.

DESCRIPTION:

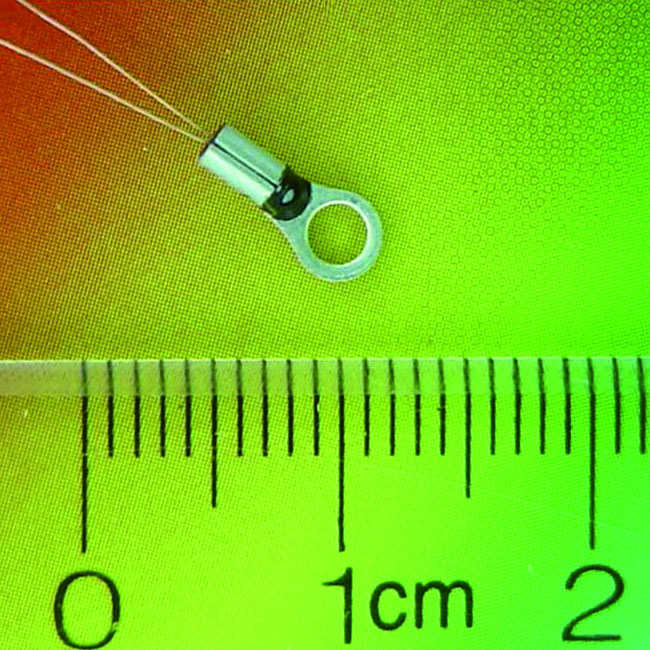

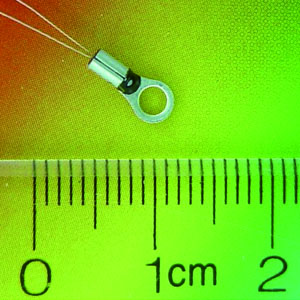

The ATH100KL2A is a thermistor assembly with a glass encapsulated thermistor packaged in an extra compact ring lug. The ATH100KL2A series thermistor consists of three versions, ATH100KL2A, ATH100KL2AT63 and ATH100KL2AT63S. The ATH100KL2A has bare leads coated with copper, the ATH100KL2AT63S has the leads covered by a high temperature plastic tubing and sealed by epoxy, while the ATH100KL2AT63 is the non-sealed version. Compared to conventional assemblies containing epoxy encapsulated thermistors, ATH100KL2A thermistor series presents higher long-term stability, higher reliability, and a wider temperature range. In addition, it is compact in size and offers a short response time.
