Mini Color Camera

Part Number Price Buy Now Datasheet
AUSBC1 $95.77 buy now Buy Now DATASHEET
ATMC102U $142 buy now Buy Now datasheet

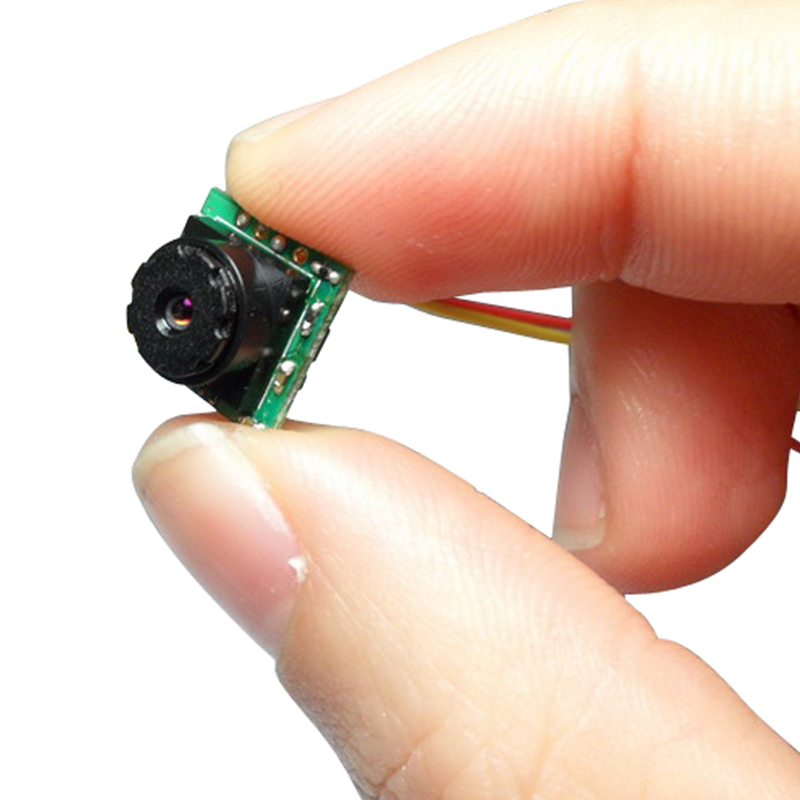

The ATMC102U is a mini color USB camera, used in the medical care, microscope, video conferencing, video phones,video email, PC multimedia, toys, industry pipe & well inspection, CCTV security surveillances, etc.

This mini USB camera has 2 units: a camera head and a USB video converter. The former has analog video/audio output signals,the latter converts the analog signals into digital ones with a USB protocol which allows interfacing to a computer conveniently. There are 4 wires between the 2 units.

The mini camera head comes with all the circuits for generating the standard NTSC or PAL video/audio signals. The image sensor has a built-in color filter array, for generating the color signal.


Small Installation Pin Hole: 2.2mm

Miniature Size: 11*11*7 (mm)

Plug & Play: no driver is needed

High Sensitivity: 0.6 lux/F1.2

Progressive Scan

High S/N Ration: > 50dB

Low Current: < 100mA@5V camera head

High Resolution: 640*480

Analog Video/Audio Output Available

Digital Output Through USB port
