MAIN FEATURES
Isolated Power Outputs
Small Size: 4 Channels/lnch Low
Uncommitted Input Amplifier
CMR: 130dB (Gain = 100V/V)
High Accuracy
High CMV Isolation: ±1000V/±2000V Continuous
APPLICATION
Multichannel Data Acquisition
Current Shunt Measurements
Motor Controls
Process Signal Isolation
High Voltage Instrumentation Amplifier
Description

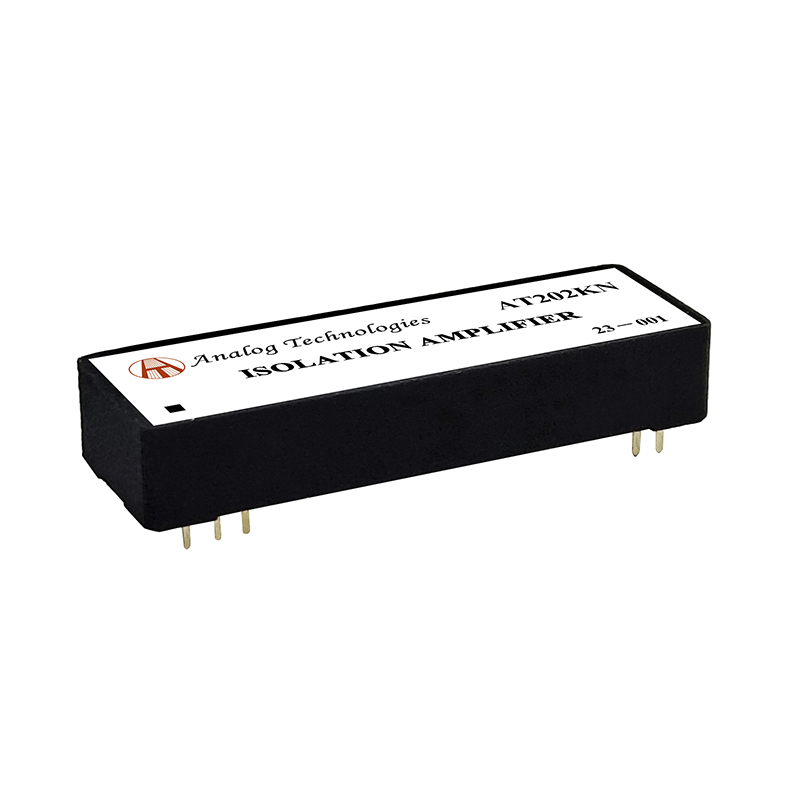

The AD202ATI series are high voltage isolation amplifiers designed for multiple applications where input signals are measured, processed, or transmitted without a galvanic connection. These isolation amplifiers in SIP or DIP package offer a signal and power isolation function. The above table shows the differences of these high voltage isolation amplifiers.
Selection Guide of High Voltage Isolation Amplifier AD202 Series
Part # | Description | Package | Bandwidth | Serial # | Status | Output Voltage vs. Power Supply | Online Purchase: |
|---|---|---|---|---|---|---|---|
| Datasheet | Common Mode Vmax. | Rise Time | |||||
| Price (@>50PCs) |
P. S. Current | Linearity | Stock | ||||
AD202KNATI $54 | Upgraded replacement for AD202KN | DIP | 800kHz | >25156 | In production | Isolated |    5 |
| 2000V | 0.5μs | ||||||
| 12mA | ±0.02% | ||||||
AD202JNATI
$64 | Upgraded replacement for AD202JN | DIP | 800kHz | - | In production | Isolated | 0 |
| 1000V | 0.5μs | ||||||
| 12mA | ±0.02% | ||||||
AD202KYATI
$54 | Upgraded replacement for AD202KY | SIP | 800kHz | >25290 | In production | Isolated | 0 |
| 2000V | 0.5μs | ||||||
| 12mA | ±0.02% | ||||||
AD202JYATI
$64 | Upgraded replacement for AD202JY | SIP | 800kHz | - | In production | Isolated | 0 |
| 1000V | 0.5μs | ||||||
| 12mA | ±0.02% | ||||||
AD202KYATI |
Pin out compatible with AD202KY, but output voltage is not isolated with power supply | SIP | 20kHz | ≤25290 | Ceased production |
Non-Isolated | N/A |
| 2000V | 18μs | ||||||
| 20mA | ±0.02% | ||||||
AD202KNATI |
Pin out compatible with AD202KN, but output voltage is not isolated with power supply | DIP | 20kHz | ≤25156 | Ceased production |
Non-Isolated | N/A |
| 2000V | 18μs | ||||||
| 20mA | ±0.02% | ||||||
AD202KN | Made by Analog Device | DIP | 2kHz | - | Ceased production | Isolated | N/A |
| 2000V | 180μs | ||||||
| 5mA | ±0.025% | ||||||
AD202JN | Made by Analog Device | DIP | 2kHz | - | Ceased production | Isolated | N/A |
| 1000V | 180μs | ||||||
| 5mA | ±0.05% | ||||||
AD202KY | Made by Analog Device | SIP | 2kHz | - | Ceased production | Isolated | N/A |
| 2000V | 180μs | ||||||
| 5mA | ±0.025% | ||||||
AD202JY | Made by Analog Device | SIP | 2kHz | - | Ceased production | Isolated | N/A |
| 1000V | 180μs | ||||||
| 5mA | ±0.05% | ||||||
ATIA202KN | Obsolete, identically replaced by AD202KNATI | DIP | 20kHz | - | Ceased production | Isolated | N/A |
| 2000V | 18μs | ||||||
| 12mA | ±0.01% | ||||||
ATIA202KY | Obsolete, identically replaced by AD202KYATI | SIP | 20kHz | - | Ceased production | Isolated | N/A |
| 2000V | 18μs | ||||||
| 12mA | ±0.01% |
