High Voltage High Current TEC Controller

GOOD NEWS! TEC12V15A and its evaluation board are ready for sale.
Part Number Difference Datasheet Buy Now

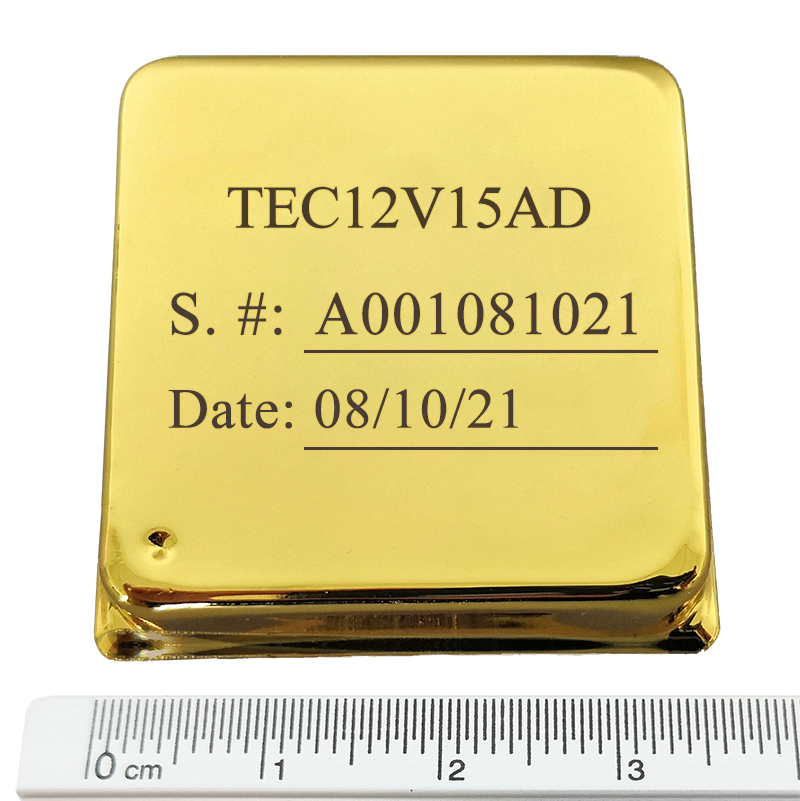

TEC12V15AD DIP Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V15AS SMT Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V15ASNCOD DIP Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V15ASNCOS SMT Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V15ADAPID Auto PID
DIP Package with Pin 1: 4VRS
TEC controller buy now buy now
TEC12V15ASAPID Auto PID
SMT Package with Pin 1: 4VRS
TEC controller buy now buy now
TEC12V10AD DIP Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V10AS SMT Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V10ASNCOD DIP Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V10ASNCOS SMT Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V10ADAPID Auto PID
DIP Package with Pin 1: 4VRS
TEC controller buy now buy now
TEC12V10ASAPID Auto PID
SMT Package with Pin 1: 4VRS
TEC controller buy now buy now
TEC12V6AD DIP Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V6AS SMT Package with Pin 1: 4VRS TEC controller buy now buy now
TEC12V6ASNCOD DIP Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V6ASNCOS SMT Package with Pin 1: SNCO TEC controller buy now buy now
TEC12V6ADAPID Auto PID
DIP Package with Pin 1: 4VRS
TEC controller buy now buy now
TEC12V6ASAPID Auto PID
SMT Package with Pin 1: 4VRS
TEC controller buy now buy now
Click to View

MAIN FEATURES

Built-in Smart Auto PID Control – the World’s First

High Output Voltage: ±10V

High Output Current: 15A

High Efficiency: >92% @VVPS=12V&VTEC=6V&ITEC=15A

High Temperature Stability: <±0.001°C

Low Thermistor Injection Current: <1µA

Continuous Bi-directional Output

Programmable Output Current and Voltage Limits

Real Time Temperature, Current and Voltage Signals

Selectable Temperature Sensor Types: thermistor, RTD, or temperature sensor IC

High Reliability and Zero EMI

Compact Size: 35.96x35.96x8.2(mm)

100 % Lead (Pb)-free and RoHS Compliant

APPLICATIONS

Driving high power TEC modules at high efficiency

DESCRIPTION

TEC (Thermo-Electric Cooler) is a semiconductor device which can cool down or heat up the temperature of an object by injecting an electrical current in one or the other direction. This TEC controller, TEC12V15A, is designed to drive a TEC at high efficiency for regulating the object temperature precisely by controlling the direction and magnitude of the current going through the TEC. It is powered by a DC voltage between 6.0V to 12V and output current can go up to 15A without using a heat sink.

The controller TEC12V15A allows setting the set-point temperature, maximum output voltage magnitude, and the maximum output current magnitude respectively.
