Home > Products > Thermistors > High Stability Miniature Thermistor

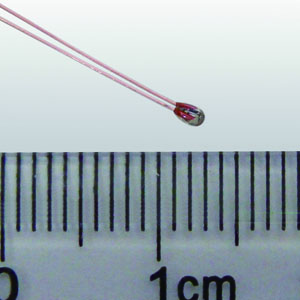

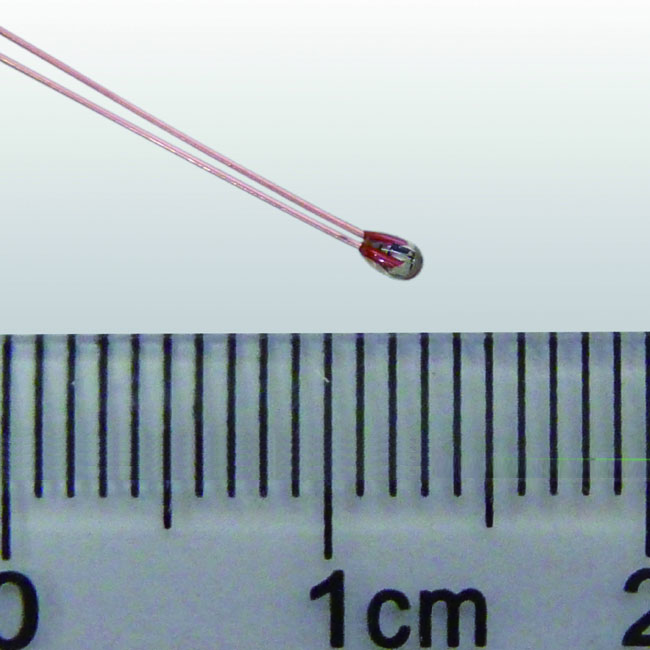

High Stability Miniature Thermistor

Part Number	5-9 PCs	10-49 PCs	50-249 PCs	250-499 PCs	1000 PCs
ATH10K1R25	$1.80	$1.60	$1.40	$1.20	$1.00	55
ATH10K1R25T70	$2.00	$1.80	$1.60	$1.40	$1.20	100
ATH10K1R25T70S	$2.20	$2.00	$1.80	$1.60	$1.40	203

Part Number	Price	Buy Now	Datasheet
ATH10K1R25	$1.80
ATH10K1R25T70	$2.00
ATH10K1R25T70S	$2.20

MAIN FEATURES

Glass Encapsulated for Long Term Stability & Reliability

High Resistance Accuracy: 1%

Small Size: Φ1.25mm2.0mm

Wide Temp. Range: -40°Cto 270°C

100 % Lead (Pb)-free and RoHS Compliant

APPLICATIONS

Temperature sensing for laser diodes, optical components, industrial process control, etc, where high temperature sensitivity, long term stability, and/or high sensing temperature are required.

Note: Free samples of thermistors at most 3 can be given after application and its approval.
Free sample application will need the follow information: contact name, company name, company website, company email, work phone number, and potential usuage volume.

DESCRIPTION:

ATH10K1R25 is of a high stability and high precision glass encapsulated thermistor. Comparing with conventional epoxy encapsulated thermistors, ATH10K1R25 features much wider temperature range, especially on the high end, much better long term stability, smaller size, and shorter response time. In addition, there are two insulation versions available, one of which comes with leads covered by high temperature plastic tubing, the ATH10K1R25T70, and the other one, the ATH10K1R25T70S, is sealed between the head and the tubing. They can work under up to 140°C temperature and the latter is of liquid resistant.
