| Part Number | 1-4 | 5-8 | 9-12 | 13-16 | 17-20 | ≥21 |  |
Buy Now | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| AHVAPN1KV20MA Replaced by AHVAPN1KV20MABN BNC output |
$1500 | $1480 | $1460 | $1440 | $1420 | $1400 | 0 | Contact Us |  |
| AHVAPN1KV20MABN Amplifier onlyBanana output |
$1500 | $1480 | $1460 | $1440 | $1420 | $1400 | 0 |   |
|
| AHVAPN1KV20MABN with 24V power ✓ Includes 24V power supplyBanana output |
$1600 | $1580 | $1560 | $1540 | $1520 | $1500 | 0 | |
|
Optional Accessories
| Part Number | Description | Unit Price | Stock | Buy Now |
|---|---|---|---|---|
| AHVAPS24V | 24V power supply, 100–240VAC input. Powers AHVAPN1KV20MA from AC mains. | $100 | 3 | |
| AHVAPNBN2SHV | SHV male to 4mm banana plug cable, 5kV, 0.3m. Connects the banana output of AHVAPN1KV20MABN to an SHV cable or load. | $19 | 0 | |

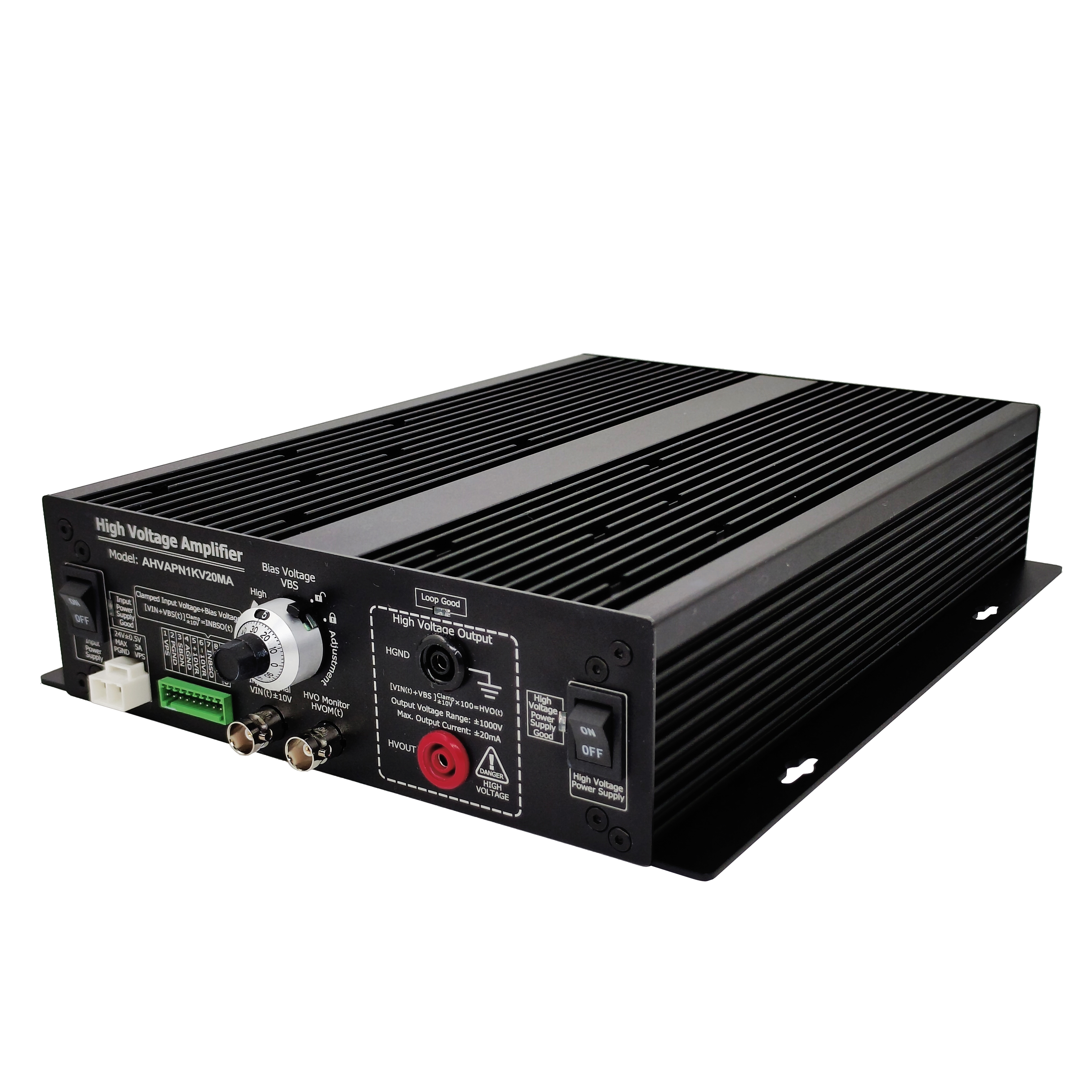

AHVAPN1KV20MABN, ±1000V bipolar high voltage amplifier
The AHVAPN1KV20MABN is a bipolar high voltage amplifier and piezo driver. It amplifies an analog input of −10V to +10V into a high voltage output of ±1000V, with up to 20mA of output current. A built-in DC-DC converter makes ±1100V rails from a single 24V input, so no external high voltage supply is needed.
With a slew rate of 2000V/µs at open load and 15kHz bandwidth at 100pF, it can drive piezo actuators and other capacitive loads with fast, clean waveforms. A front-panel knob adds a DC bias of −10V to +10V. Three LEDs show that the 24V input is inside the 23V to 25V window, that the high voltage rails are good, and that the control loop works, i.e. HVO(t) = 100 × VIN(t).
Typical applications: piezoelectric transducers and actuators, mass spectrometers, electrostatic precipitators, electrophoresis experiments and high voltage storage capacitors.
AHVAPN1KV20MABN replaces AHVAPN1KV20MA. See the AHVAPN1KV20MABN datasheet (PDF) for waveforms and dimensions.
| Power Input · Input Voltage | 23V to 25V (24V typical) |
|---|---|
| Input Current | Up to 4A |
| Max. Input Power | 100W |
| Output · Output Voltage | −1000V to +1000V |
| Output Current | 0 to 20mA |
| Internal HV Rails | ±1100V |
| Output Connector | Banana (HVOUT / HGND) |
| Dynamics · Slew Rate, open load | 2000V/µs |
| Slew Rate, 250pF load | 540V/µs |
| Control · Input Signal Range | −10V to +10V (BNC) |
| Adjustable Bias Range | −10V to +10V |
| Combined Control Range | −10V to +10V (input + bias) |
| Gain | 100 V/V |
| Voltage Reference | ±10V, up to ±20mA |
| Mechanical · Dimensions | 232.5 × 230 × 61mm (9.15 × 9.05 × 2.4in) |
Test ambient temperature TA = 25°C. Data from the AHVAPN1KV20MABN datasheet.
| Load Capacitance | Bandwidth |
|---|---|
| 100pF | 15kHz |
| 250pF | 10kHz |
| 500pF | 8kHz |
| 1nF | 3kHz |
| Pin | Name | Type | Function |
|---|---|---|---|
| 1 | VPS | Power input | 24V ±1V power supply |
| 2 | PGND | Power ground | Ground for the 24V power input |
| 3 | SBDN | Digital input | Sets Off, Standby or On mode |
| 4 | AGND | Signal ground | Connect ADC and DAC grounds here |
| 5 | 10VR | Analog output | +10V reference |
| 6 | −10VR | Analog output | −10V reference |
| 7 | INBS | Analog output | Combined control voltage (input + bias), clipped to ±10V |
| 8 | LPGD | Digital output | Loop Good: output is correctly proportional to INBS |
| 9 | TEMPO | Analog output | Voltage that represents internal temperature |
| BNC 1 | INPUT | Analog input | Control signal, −10V to +10V → ±1000V |
| BNC 2 | Output Monitor | Analog output | −10V to +10V indicates ±1000V at the output |
| Banana | HVOUT / HGND | HV output | High voltage output to the load |
A 24V DC supply (23V to 25V). The amplifier draws up to 4A and 100W. The datasheet recommends a 24V supply rated above 10A with no overshoot. Our AHVAPS24V power supply (24V, 21A) meets this, or you can order the amplifier "with 24V power".
Bandwidth drops as load capacitance rises: 15kHz at 100pF, 10kHz at 250pF, 8kHz at 500pF and 3kHz at 1nF. If you need more bandwidth, we can build a custom version with a larger heat sink.
Turn the bias knob. It adds −10V to +10V to the input signal. The sum (INBS, pin 7) is clipped to ±10V, which maps to the full ±1000V output.
Connect an oscilloscope to the Output Monitor BNC. −10V to +10V on this BNC means ±1000V at the output. The LPGD pin and the Loop Good LED show that the control loop works correctly.
Yes. Drive the SBDN pin: below 0.4V is Off, 2.1V to 2.51V is Standby, and above 2.64V is On.
AHVAPN1KV20MABN replaces AHVAPN1KV20MA. It has a banana high voltage output. If your setup uses SHV cables, add the AHVAPNBN2SHV SHV to banana cable.
