Thermal Cycling TEC Modules

TEC (Thermoelectric Cooler) module regulate the temperature of the target object with high changing speed and stabilize the temperature to a wide range with high precision. Thermal cycling TEC modules are widely used for temperature cycling applications, including instrumentation, PCR devices, thermal cyclers, chillers and analyzers, etc. In the part number, for example, ATE1-TC-71-5R5AS, "TC" stands for thermal cycling; "5R5A" indicates the maximum current allowed for entering the TEC module is 5.5A; "S" represents sealed version. Without this "S" suffix means non-sealed version.

Thermal Cycling TEC Module

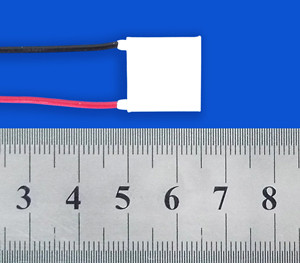

ATE1-TC-31-3AS, has 31 pairs of Peltier elements inside with a maximum voltage of 3.9 Volt. It is designed for temperature cycling applications, in which a TEC module is exposed to demanding physical stresses as the module shifts from heating to cooling, and this can significantly reduce the operational life of a standard TEC. This thermal cycling TECs have significantly longer thermal cycling operational life than standard TECs.

Datasheet    Buy Now    In stock: 7

Thermal Cycling TEC Module

TEC (Thermoelectric Cooler) module, ATE1-TC-70-15AS, has 70 pairs of Peltier elements inside with a maximum voltage of 9.6 Volt. It is designed for temperature cycling applications, in which a TEC module is exposed to demanding physical stresses as the module shifts from heating to cooling, and this can significantly reduce the operational life of a standard TEC.

Datasheet    Buy Now    In stock: 10

Thermal Cycling TEC Module

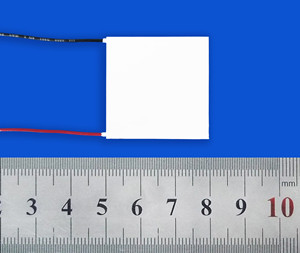

This series of TEC (Thermoelectric Cooler) modules, ATE1-TC-71, has 71 pairs of Peltier elements inside with a maximum voltage of 9.0 Volt. The ATE1-TC-71 series TECs come in with highly flat bare ceramic surfaces on the both sides, they can be mounted onto flat metal surfaces by inserting thin layers of thermally conductive filler materials, the so-called thermal pads, or placing a thin layer of thermal paste.

Datasheet    Buy Now    In stock: 30

Thermal Cycling TEC Module

This series of TEC (Thermoelectric Cooler) modules, ATE1-TC-127, has 127 pairs of Peltier elements inside with a maximum voltage of 16.2~17.5 Volt. The ATE1-TC-127 TECs come with 2 insulated lead wires. The positive wire is in red color, and the negative wire is of black.

Datasheet    Buy Now    In stock: 19

Thermal Cycling TEC Module

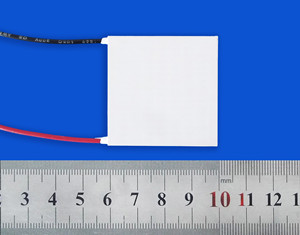

This series of TEC (Thermoelectric Cooler) modules, ATE1-TC-199, has 199 pairs of Peltier elements inside with a maximum voltage of 27.4 Volt. The ATE1-TC-199 series TECs come in with highly flat bare ceramic surfaces on the both sides, they can be mounted onto flat metal surfaces by inserting thin layers of thermally conductive filler materials, the so-called thermal pads, or placing a thin layer of thermal paste.

Datasheet    Buy Now    In stock: 3
