Super SMT 1206 0805 0603 0402 Capacitor kits

The World's Only & Most Convenient SMT Capacitor Kits

Documentation

Datasheet for Super SMT Capacitor kits      MS Word Template for Printing Kit Coverlet Lable

We also offer Super SMT Resistor Kits and Super SMT Inductor Kits.
Datasheet for Super SMT Resistor kits
Datasheet for Super SMT Inductor kits


See how it works














We have designed and have been making for 14 years the world’s only Super SMT Capacitor Kits™ which offer the most convenience for obtaining any value of SMT capacitors in the shortest time with the highest accuracy.

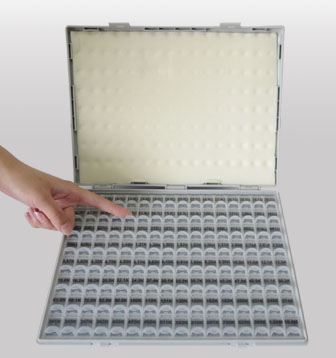

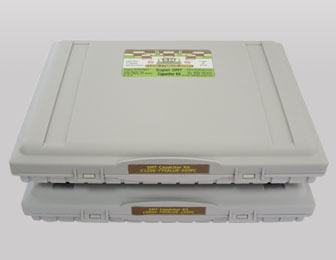

Our Super SMT Capacitor Kits™ are made based on the world’s only special container, Super SMT Component Enclosure™, which has 128 individually lidded coverlets and one final top cover. The foam pad inside the top cover keeps all the coverlets closed when the top cover is closed and locked. Each cover-let measures: 0.87" (L) x 0.59" (W) x 0.63"(D) or 22mm (L) x 15mm (W) x 16mm (D). The Super SMT Component Enclosure™ measures: 11" (L) x 8.5" (W) x 1.75"(H) or 280mm (L) x 216mm (W) x 45mm (H).

All the surface mount capacitors are pre-sorted and stored in Super SMT Component Enclosure™ with surface mount capacitor values printed clearly on each lid.

These Super SMT Capacitor Kits™ contain

1206 capacitors
0805 capacitors
0603 capacitors
0402 capacitors

These Super SMT Capacitor Kits™ contain 1206/0805/0603/0402 COG, NPO, X7R, X5R,Y5V materials, values from 0.5pF to 22uF surface mount capacitor. Totally around 100 values in one Super SMT Component Enclosure . For each value, you have the choice of 20pcs/value, 50pcs/value, 100pcs/value or 200pcs/value capacitor kits.

Selection Guide For Online Purchase
1206 Size 77 values 0805 Size 83 values 0603 Size 79 values 0402 Size 70 values
50pcs/value capacitor kit
In Stock: 6
50pcs/value capacitor kit
In Stock: 9
50pcs/value capacitor kit
In Stock: 11
50pcs/value capacitor kit
In Stock: 10
100pcs/value capacitor kit
In Stock: 22
100pcs/value capacitor kit
In Stock: 11
100pcs/value capacitor kit
In Stock: 20
100pcs/value capacitor kit
In Stock: 20
200pcs/value capacitor kit
In Stock: 14
200pcs/value capacitor kit
In Stock: 15
200pcs/value capacitor kit
In Stock: 10
200pcs/value capacitor kit
In Stock: 28
500pcs/value capacitor kit
In Stock: 6
500pcs/value capacitor kit
In Stock: 8
500pcs/value capacitor kit
In Stock: 28
500pcs/value capacitor kit
In Stock: 14

Buy online from our official online store www.smtzone.com or www.analogti.com

• More than 50K SMT enclosure/kits sold and received zero return.
• Super SMT Component Enclosure has 128 compartments.
• Each component value is printed on each lid.
• Easy to locate and access any value components.
• Easy to transport the enclosure to other places.
• Put it on a shelf to keep the bench top clean.



Selection Guide for Capacitor Kits

Super Surface Mount Capatiror Kits

part# Deseription

C12-50 Capacitor kit

1206 size, 77 Values, 50pc/Value Capacitor kit

C12-100 Capacitor kit

1206 size, 77 Values, 100pc/Value Capacitor kit

C12-200 Capacitor kit

1206 size, 77 Values, 200pc/Value Capacitor kit

C12-500 Capacitor kit

1206 size, 77 Values, 500pc/Value Capacitor kit

C08-50 Capacitor kit

0805 size, 83 Values, 50PC/Value Capacitor Kit

C08-100 Capacitor kit

0805 size, 83 Values, 100PC/Value Capacitor Kit

C08-200 Capacitor kit

0805 size, 83 Values, 200PC/Value Capacitor Kit

C08-500 Capacitor kit

0805 size, 83 Values, 500PC/Value Capacitor Kit

C06-50 Capacitor kit

0603 size, 79 Values, 50PC/Value Capacitor Kit

C06-100 Capacitor kit

0603 size, 79 Values, 100PC/Value Capacitor Kit

C06-200 Capacitor kit

0603 size, 79 Values, 200PC/Value Capacitor Kit

C06-500 Capacitor kit

0603 size, 79 Values, 500PC/Value Capacitor Kit

C04-50 Capacitor kit

0402 size, 70 Values, 50pc/Value Capacitor kit

C04-100 Capacitor kit

0402 size, 70 Values, 100pc/Value Capacitor kit

C04-200 Capacitor kit

0402 size, 70 Values, 200pc/Value Capacitor kit

C04-500 Capacitor kit

0402 size, 70 Values, 500pc/Value Capacitor kit

T-C-25 Capacitor kit

Tantalum capacitor Kits 45Values, 0.1uF-100uF, 25pc/Value
