Temperature Plate Assembly

Part Number 1-4 PCs 5-24 PCs ≥25 PCs stock Buy Now Datasheet
ATTP1A $220 $200 $180 28 Buy Now Datasheet
LED Controller LED Strip LED T8 Tube

MAIN FEATURES

Provide a platform with wide temperature regulation range: -20°C to 110°C

Accurate temperature stability: 1.8mV

Large signal response: 20s from 10 °C to 20°C

Small signal response: 6s from 20°C to 23°C

High thermal load capability: 15.75W

Large platform: 66mm × 44mm



APPLICATIONS

It provides a platform of which the temperature is regulated to a pre-set value between -20°C to 110°C. It can also be used for evaluating TEC controllers, TECs and heat sink, etc. Also it can stabilize objects temperature for scientific experiments.

DESCRIPTION:

ATTP1A is designed for evaluating TEC controllers, which can be easily evaluated by using this temperature plate. ATTP1A aims to automatically adjust the temperature parameters based on the requested temperature range so that the TEC controller can detect the pre-set temperature range.

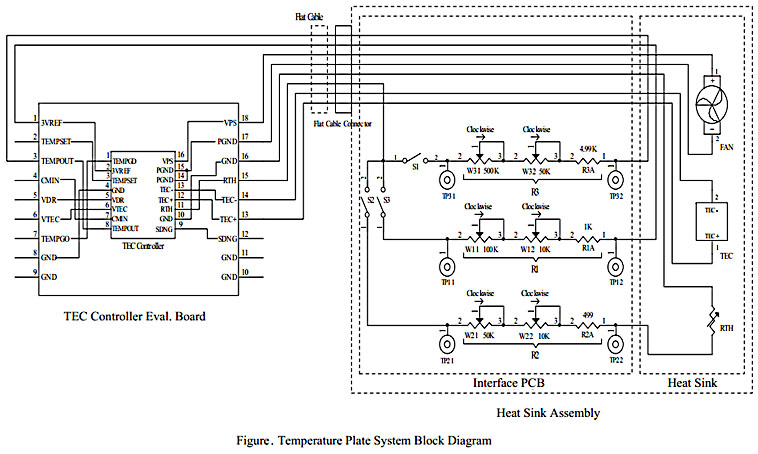

This is the Temperature Plate System Block Diagram for ATTP1A.

ATTP1A
