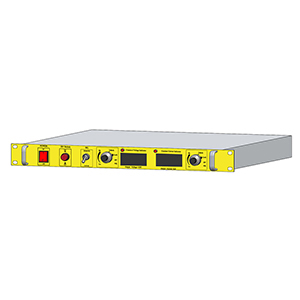

A1U Series Rack-Mount AC-DC High Voltage Power Supply

Q: What input voltage do A1U supplies require?

110 VAC or 220 VAC, selected with the rear-panel switch, at 50/60 Hz.

Q: Can the output be adjusted or programmed remotely?

Yes. Set the output locally with the 10-turn front-panel potentiometer, or remotely with a 0-5 V signal (0-5 V = 0-100% of rated output) through the 8-pin connector. Voltage and current monitor outputs (0-5 V) report the actual output.

Q: Is there a shutdown input?

Yes. A logic low (below 0.8 V or 0 V) on the SDN pin turns the high voltage off; a logic high (above 1.2 V) or an open pin allows normal operation.

Q: What output polarities are available?

Positive output is standard. A negative model is stocked, A1UHVACN5KV5MARM (-5 kV). Other voltages, currents, and polarities are available as OEM options.

Click to View

FEATURES
Rack mountable
High precision
High efficiency
Local and remote operation
High output voltage stability
Linear modulation of output voltage
Overcurrent protection
Arc and short circuit protection
Digital display for output voltage and current
OEM customization available

DESCRIPTIONS

A1U series AC-DC high voltage power supplies are rack-mountable and convert an AC input voltage into a stable, adjustable high-voltage DC output. This series features a compact 1U enclosure, light weight, moisture-proof and shockproof construction, a metal chassis, low EMI, output short-circuit protection, and a wide output-voltage adjustment range.

We can design and manufacture customized products based on customers' requirements.

Selection Guide for A1U Series AC-DC High Voltage Power Supply.

Note – Reference Voltage

The reference voltage is for powering a potentiometer (≥10KΩ) to adjust the high-voltage output. Do NOT use it to power other devices.

Part Number	Output Voltage	Max. Output Current	Output Power	Ripple (Vp-p)	Unit Price
A1UHVACP1KV50MARM	1kV	50mA	50W	<0.1%	$2099
A1UHVACP5KV4MARM	5kV	4mA	20W	<0.01%	$1639
A1UHVACP5KV5MARM	5kV	5mA	25W	<0.01%	$1699
A1UHVACP5KV10MARM	5kV	10mA	50W	<0.1%	$2199
A1UHVACP10KV5MARM	10kV	5mA	50W	<0.1%	$2299

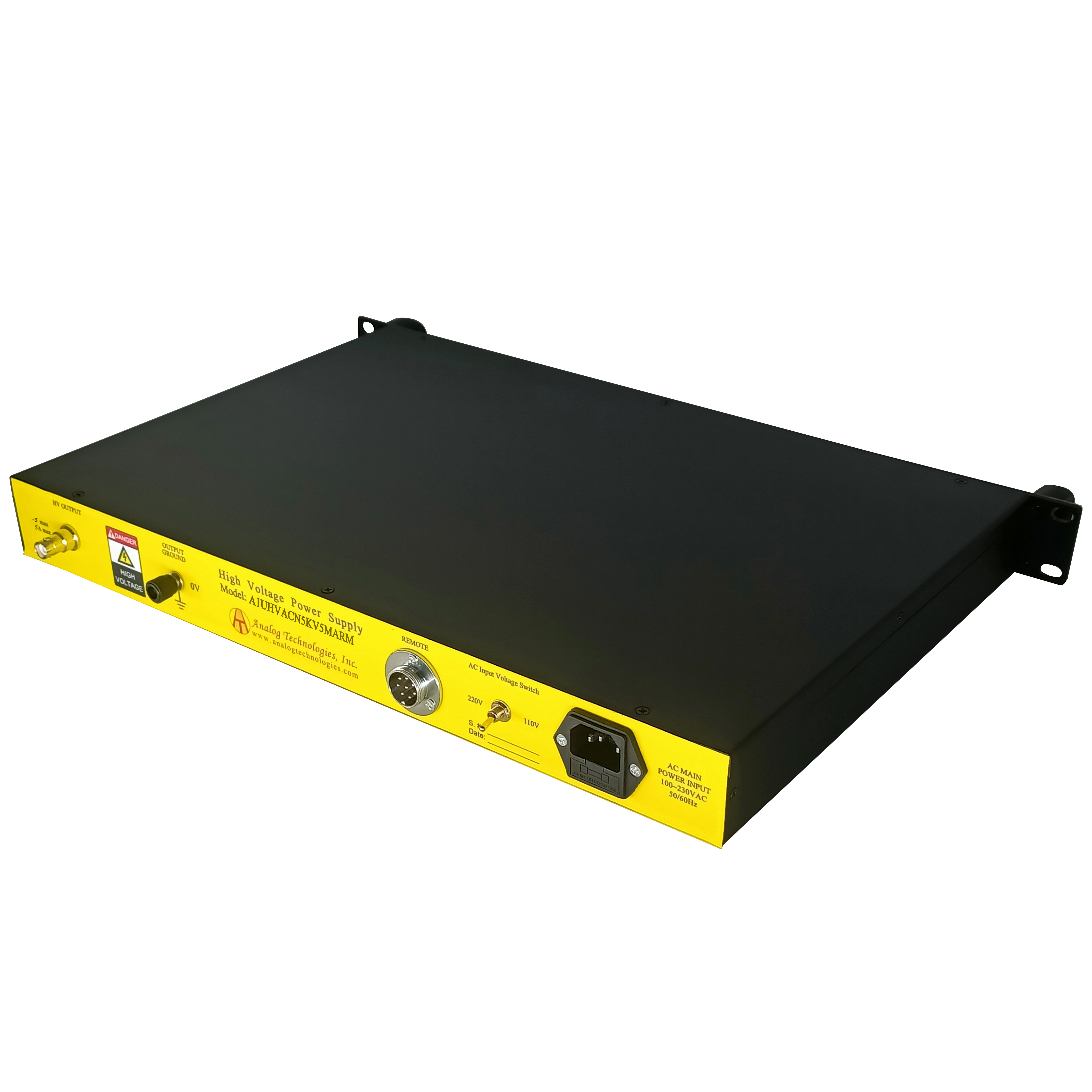

A1UHVACN5KV5MARM	-5kV	5mA	25W	<0.01%	$1699

Common Specifications

The values below apply to every A1U model. Ripple, full-load efficiency, line/load regulation, temperature coefficient, and storage-temperature range vary by model — see the datasheet linked for each part number above.

Parameter	Specification
AC Input Voltage	100–230 VAC, 110 V / 220 V selectable via rear switch, 50/60 Hz
Output Voltage Adjustment	Continuous 0–100%, linear; 10-turn front-panel potentiometer (local) or 0–5 V remote programming
Operating Temperature	0 to +50 °C
Humidity	20–85% RH, non-condensing
Protection	Overcurrent, arc, and short-circuit protection
Control Interface	8-pin remote connector — 0–5 V voltage & current program-in, 0–5 V voltage & current monitor, shutdown input, +5 V reference, signal ground; plus a front-panel local/remote (R/L) switch

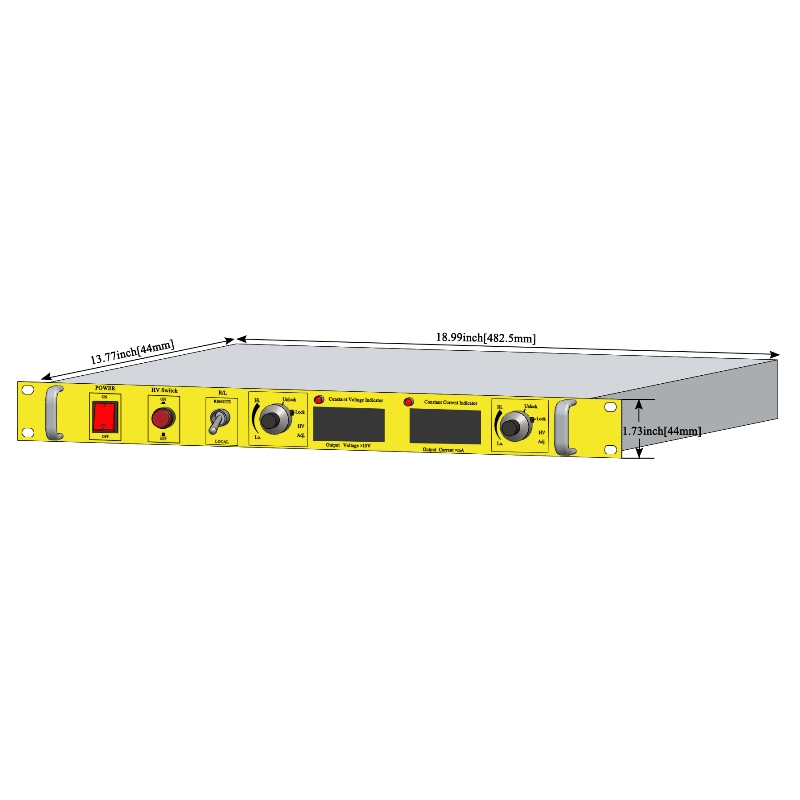

Enclosure	1U 19-inch rack, metal chassis — 482.5 × 350 × 44 mm (19 × 13.78 × 1.73 in)
Weight	3.6 kg (7.93 lb)
HV Output Lead	1.5 m removable high-voltage cable
Warranty	1 year; OEM customization of voltage, current, and polarity available

Applications

A1U series rack-mount high voltage power supplies serve a broad range of scientific and industrial systems:

Ion beam injection Semiconductor technology Electron beam welding Capacitor charging High power radio frequency transmitter Accelerator CW laser High voltage insulation test Lithography technology X-ray system Electrostatic applications Scientific experiments Industrial applications

Frequently Asked Questions

What input voltage do A1U supplies require?

110 VAC or 220 VAC, selected with the rear-panel switch, at 50/60 Hz.

Can the output be adjusted or programmed remotely?

Yes. Set the output locally with the 10-turn front-panel potentiometer, or remotely with a 0–5 V signal (0–5 V = 0–100% of rated output) through the 8-pin connector. Voltage and current monitor outputs (0–5 V) report the actual output.

Is there a shutdown input?

Yes. A logic low (<0.8 V or 0 V) on the SDN pin turns the high voltage off; a logic high (>1.2 V) or an open pin allows normal operation.

What output polarities are available?

Positive output is standard (part numbers containing “P”). A negative model is stocked — A1UHVACN5KV5MARM (−5 kV). Other voltages, currents, and polarities are available as OEM options.

What protection features are built in?

Overcurrent, arc, and short-circuit protection. On the precision low-current models the instantaneous short-circuit current is limited to under 20 mA.

What is the output ripple?

It depends on the model: below 0.01% Vp-p on the low-current precision units (5 kV/4 mA, 5 kV/5 mA, −5 kV/5 mA) and below 0.1% Vp-p on the higher-current units (1 kV/50 mA, 5 kV/10 mA, 10 kV/5 mA).

Is the unit rack-mountable, and how much does it weigh?

Yes. Every A1U model is a 1U 19-inch rack unit measuring 482.5 × 350 × 44 mm and weighing 3.6 kg (7.93 lb).

Can ATI customize an A1U supply?

Yes. Output voltage, output current, and polarity can be customized for OEM orders.
