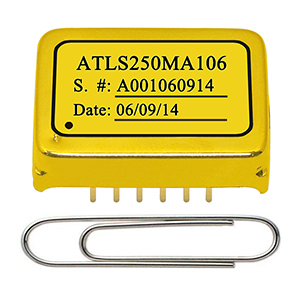

Low Noise Constant Current Laser Driver ATLS250MA106

Part Number Price Buy Now Datasheet
ATLS250MA106 $75 buy now Buy Now Datasheet

Click to View

MAIN FEATURES

Ultra Low Noise: 4.5μAp-p @ 0.1Hz to 10Hz

High IOUT without Heat Sink: 250mA

High IOUT Absolute Accuracy: <0.1%

High IOUT Stability: <100ppm/°C

Separate IOUT and IOUT Limit Setting

Complete Shielding

Compact Size

100 % Lead (Pb)-free and RoHS Compliant

DIP and SMT Packages Available

*Total RMS between 0.1 Hz to 100kHz

APPLICATIONS

Driving laser diodes with ultra low noise, including DPSSL, EDFA, SOA, fiber laser, DSB diode lasers, etc

DESCRIPTION:

The ATLS250MA106 is an electronic module designed for driving diode lasers with up to 250mA extra low noise current. The output voltage is 1.5V to 4V when powered by a 5V power supply. The controller has temperature compensation network so that the output current maintains the same even as the controller temperature rises.
