FEATURES
Digital Display for Parameter Setting and Monitoring
High Output Power for TEC: 12V20A
High Efficiency: >98%
No Heat Sink Required
Penal Mounting Design
Output Short and over Current Protection
Communication with PC through USB port
Compact Size

APPLICATIONS

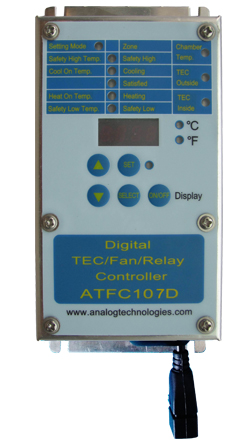

This controller, ATFC107D, is designed to drive and monitor the operation status of a TEC/Fan assembly. It shows the working parameters in real time. These parameters can also be sent to a personal computer though the USB port. The output stage will have a soft-start and soft-cut function for driving the TECs so that the TEC's life time will be longer.

DESCRIPTION

ATFC107D is designed for regulating an enclosed chamber temperature by driving a TEC array and a fan array. In addition, upon detecting the chamber temperature goes beyond the safety windows, see the table below, it cuts off an AC power switch by sending the relay control signal. The ATFC107D is a digitally controlled TEC/fan assembly controller for driving TEC assemblies with fans and monitoring the working status at the same time. It allows setting the parameters of the set-point temperature window, the safety temperature window, monitoring the heat sink hot side temperature, heat sink cold side temperature, and the chamber temperature.
