TEC/Peltier Controller Selection Guide

Home > Products > TEC/Peltier Controllers > TEC/Peltier Controllers Selection Guide
Image Part Number Data-
sheet

Unit
Price

Qty.
Avail.

 Buy
Now

Input
Voltage

Max.
Output
Voltage

Dimension
(mm)

Temp Pin @ Shut Down

4V/3V/2.5V Voltage Reference @Shut Down

Package
Type

 Eval. Board
Avail.

Note
Click to View TEC14M5V3R5AS   0   4.75 ~ 5.25V VPS − 0.2V 14×14×2.2 Disabled Working SMT   Micro TEC Controller
Click to View TEC28V15A
 $272 0

6 ~ 28V 22V 35.78×35.78×7.2 Disabled Disabled DIP/SMT TEC28V15AEV1




Click to View TEC18V15A $239.9 0

6 ~ 18V ±15V 35.78×35.78×7.2 Disabled Disabled DIP/SMT TEC28V15AEV1
Click to View TEC12V15A $219.9 0
6 ~ 12V ±10V 35.78×35.78×7.2 Disabled Disabled DIP/SMT TEC28V15AEV1
Click to View TEC9V15A $199.9 0
6 ~ 9V ±7.5V 35.78×35.78×7.2 Disabled Disabled DIP/SMT TEC28V15AEV1
Click to View TEC50V20ACH Datasheet $885 0 12V ~ 50V 40V 61×63×16.7 Disabled Disabled Chassis - -
Click to View TEC5V4A-D $78 18 4.75 ~ 5.25V VPS − 0.2V 25.4×19.9×8.8 Working Working DIP TECEV104
Click to View TEC5V4A-NT $78 0 4.75 ~ 5.25V VPS − 0.2V 25.4×19.9×8.8 Working Working DIP TECEV104 No Default Temp. Setting Network
Click to View TEC5V4A-DB $78 0 4.75 ~ 5.25V VPS − 0.2V 25.4×19.9×8.8 Disabled Working DIP TECEV104
Click to View TEC5V6A-D
 $86 4 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.8 Working Working DIP TECEV104
Click to View TEC5V6A-NT
 $86 0 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.8 Working Working DIP TECEV104 No Default Temp. Setting Network
Click to View TECA2-xV-xV-DAH
 $54 0 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.0 Disabled Working DIP TECEV104
Click to View TECA1-5V-6A-NT
 $86 0 * 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.8 Working Working DIP TECEV104 No Default Temp. Setting Network
Click to View TECA1-5V5V-NT
 $73 5 * 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.8 Working Working DIP TECEV104 No Default Temp. Setting Network
Click to View TECA1-5V-6A-D
 $86 0 * 4.75 ~ 5.25V VPS − 0.3V 25.4×19.9×8.8 Working Working DIP TECEV104 With Default Temp. Setting Network
Click to View

TECA1-3V-1.3V-D
TEC controller

 $73 5 3.3V 1.3V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-3V-1.3V-DB
TEC controller		 $73 0 3.3V 1.3V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-3V-1.3V-S
TEC controller		 $73 1 3.3V 1.3V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-3V-1.3V-SB
TEC controller		 $73 0 3.3V 1.3V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-3V-2V-D
TEC controller		 $73 7 3.3V 2V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-3V-2V-DB
TEC controller		 $73 0 3.3V 2V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-3V-2V-S
TEC controller 		$73 5 3.3V 2V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-3V-2V-SB
TEC controller 		$73 0 3.3V 2V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-3V-2.5V-D
TEC controller 		$73 16 3.3V 2.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-3V-2.5V-DB
TEC controller 		$73 0 3.3V 2.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-3V-2.5V-S
TEC controller 		$73 0 3.3V 2.5V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-3V-2.5V-SB
TEC controller		 $73 5 3.3V 2.5V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-3V-3V-D
TEC controller		 $73 30 3.3V 3V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-3V-3V-DB
TEC controller		 $73 0 3.3V 3V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-3V-3V-S
TEC controller		 $73 2 3.3V 3V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-3V-3V-SB
TEC controller		 $73 0 3.3V 3V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-2V-D
TEC controller		 $73 0 5V 2V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-2V-DB
TEC controller		 $73 0 5V 2V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-2V-S
TEC controller		 $73 1 5V 2V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-2V-SB
TEC controller		 $73 0 5V 2V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TEC-5V-2.5V-D
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TEC-5V-2.5V-DB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-2.5V-D
TEC controller		 $73 70 5V 2.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-2.5V-DB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-2.5V-S
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-2.5V-SB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-2.5V-D-OP
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-2.5V-D-OPB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-2.5V-DU
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-2.5V-DUB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-2.5V-S-OP
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-2.5V-S-OPB
TEC controller		 $73 0 5V 2.5V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-3V-D
TEC controller 		 $73 9 5V 3V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-3V-DB
TEC controller 		 $73 0 5V 3V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-3V-S
TEC controller		 $73 0 5V 3V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-3V-SB
TEC controller		 $73 0 5V 3V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-3.5V-D
TEC controller		 $73 10 5V 3.5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-3.5V-DB
TEC controller		 $73 0 5V 3.5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-3.5V-S
TEC controller		 $73 0 5V 3.5V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-3.5V-SB
TEC controller		 $73 0 5V 3.5V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-4V-D
TEC controller		 $73 0 5V 4V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-4V-DB
TEC controller		 $73 0 5V 4V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-4V-S
TEC controller		 $73 1 5V 4V 25.4×17.78×4.5 Working Working SMT TECEV104

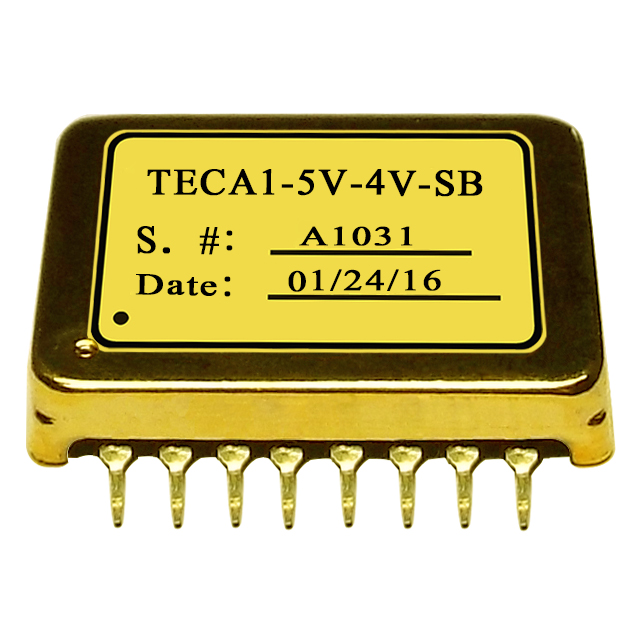

Click to View TECA1-5V-4V-SB
TEC controller		 $73 1 5V 4V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-5V-5V-D
TEC controller		 $73 50 5V 5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-5V-DB
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-5V-DS
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-5V-DSB
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-5V-DU
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Working Working DIP TECEV104
Click to View TECA1-5V-5V-DUB
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Disabled Working DIP TECEV104
Click to View TECA1-5V-5V-S
TEC controller		 $73 20 5V 5V 25.4×17.78×4.5 Working Working SMT TECEV104
Click to View TECA1-5V-5V-SB
TEC controller		 $73 0 5V 5V 25.4×17.78×4.5 Disabled Working SMT TECEV104
Click to View TECA1-xV-xV-DAH $78 50 6V VPS − 5V 25.4×19.9×4.5 Working Working DIP TECEV104 Maximum
|V TEMP − V TEMPSP |
≤ 0.5mV
Click to View ATW3A314 $92.4 0 3.1 ~ 5.5V 0 − VPS 25.4×19.9×6.8     DIP   Under
Development
Click to View ATEC24V10A-D $320 0 5 ~ 25V 24V 38.8 × 34.5 × 7.5     DIP   Under
Development
