NTC Thermistors Selection Guide

Home > Products > Thermistors > Thermistors Selection Guide
Image Part Number Data-
sheet

5-9 PCs

10-49 PCs

50-199 PCs-

50-199 PCs

≥500 PCs

Qty.
Avail.
Buy
Now

Resistance Accuracy

Nominal Resistance @ 25°C

B Value @ 25°C /85°C

B Value @ 0°C /100°C

B Value @ 25°C /100°C

Thermistor Diameter
(mm)

Ring Hole Diameter
(mm)

Lead Length
(mm)

Note
-

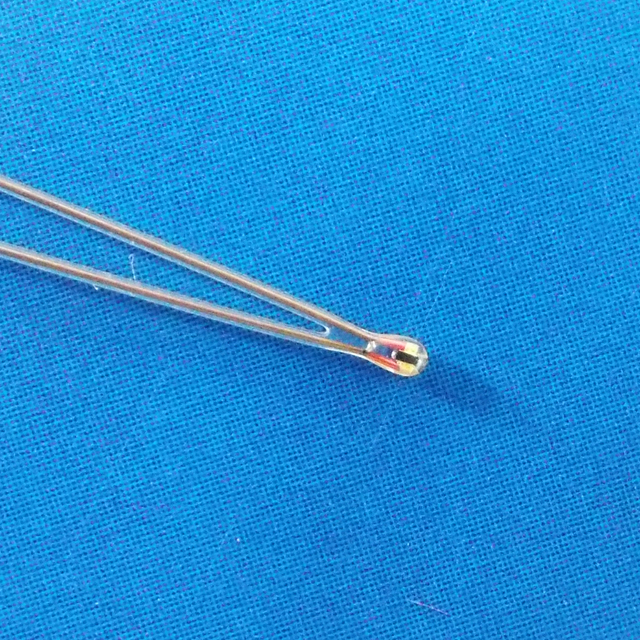

Click to View ATH10KR8B $3.50 $3.30 $3.10 $2.90 $2.70 500 buy now 1% 10K ± 1% 3478K± 1% 3450K± 1% 3492K± 1% 0.8 ± 0.1 - 65± 3 Sealed

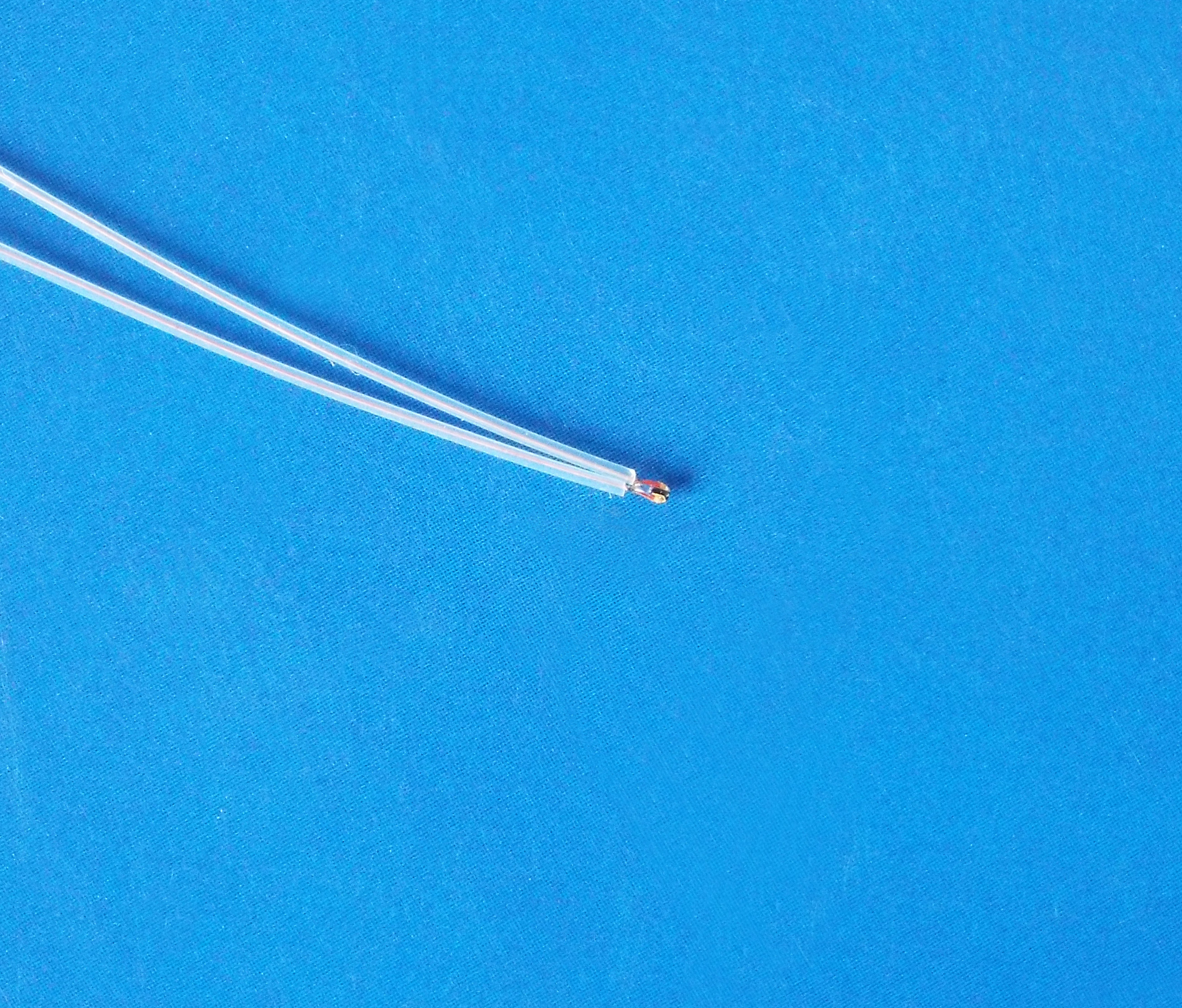

Click to View ATH10KR8BT65
$3.70 $3.50 $3.30 $3.10 $2.90 500 buy now 1% 10K ± 1% 3478K± 1% 3450K± 1% 3492K± 1% 0.8 ± 0.1 - 65± 3 Leads wtih plastic tubing

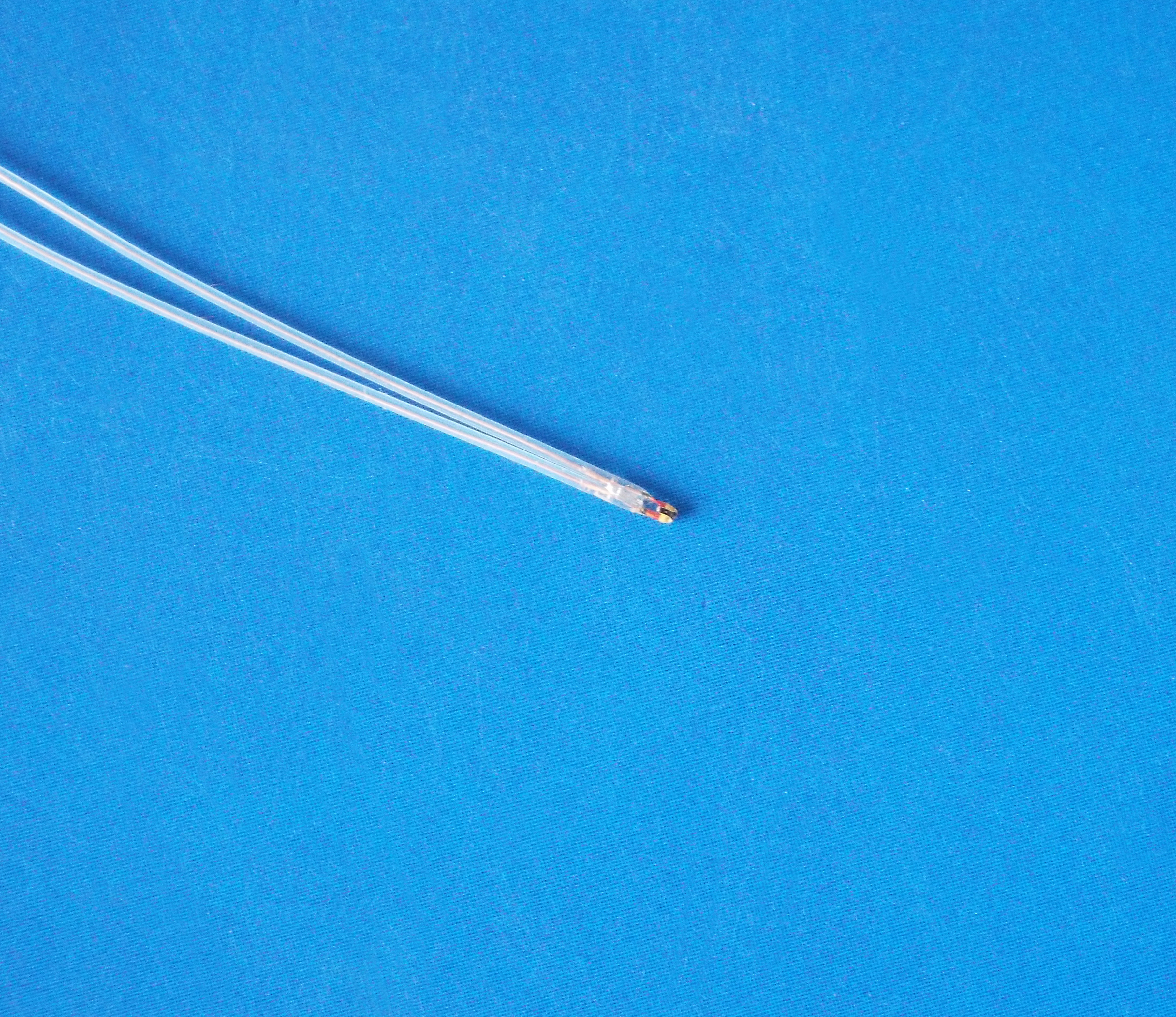

Click to View ATH10KR8BT65S
$3.90 $3.70 $3.50 $3.30 $3.10 500 buy now 1% 10K ± 1% 3478K± 1% 3450K± 1% 3492K± 1% 0.8 ± 0.1 - 65± 3 Sealed

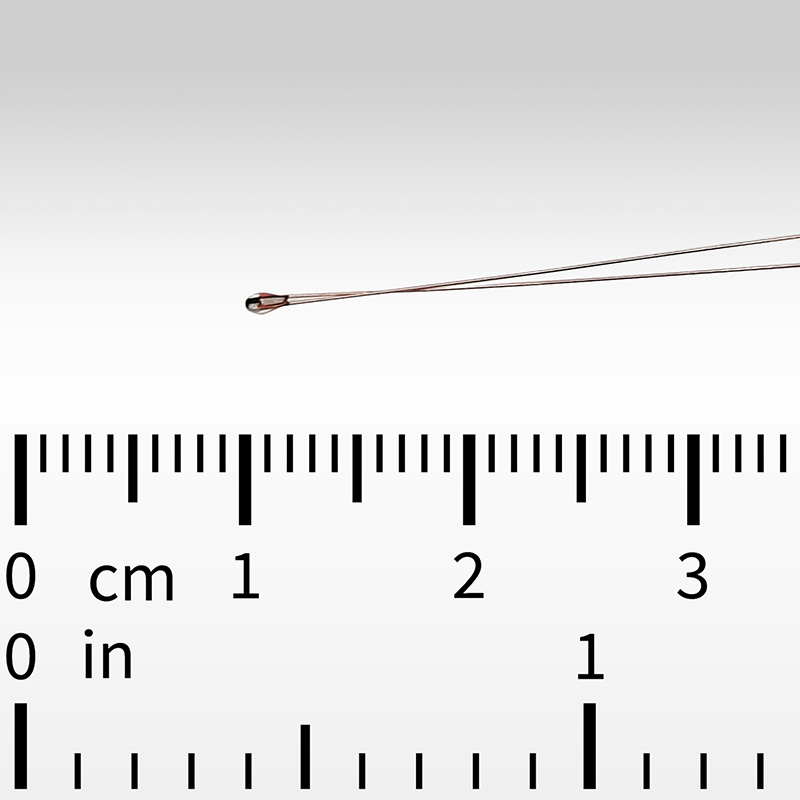

Click to View ATH10KR8B3404K $2.00 $1.80 $1.60 $1.40 $1.20 500 buy now 1% 10K ± 1% - - 3450K± 1% 0.8 ± 0.15 - 60±5 -

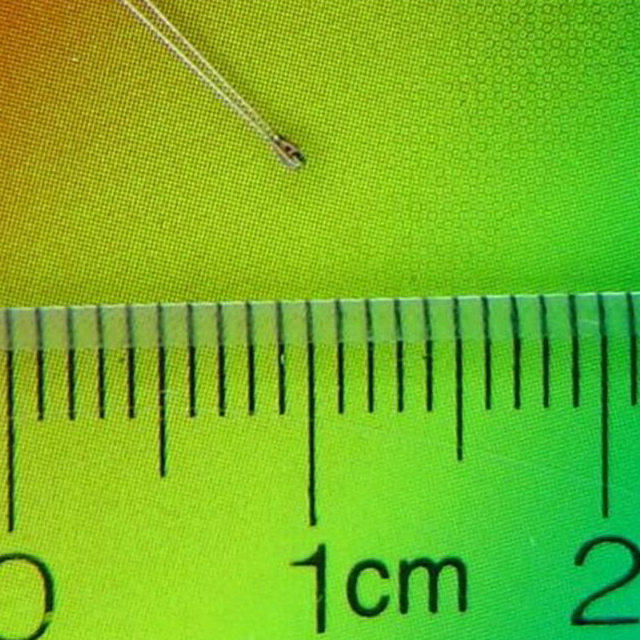

Click to View ATH100KR8 $3.50 $3.30 $3.10 $2.90 $2.70 132 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% 0.8 ± 0.1mm - 63 ± 3 -

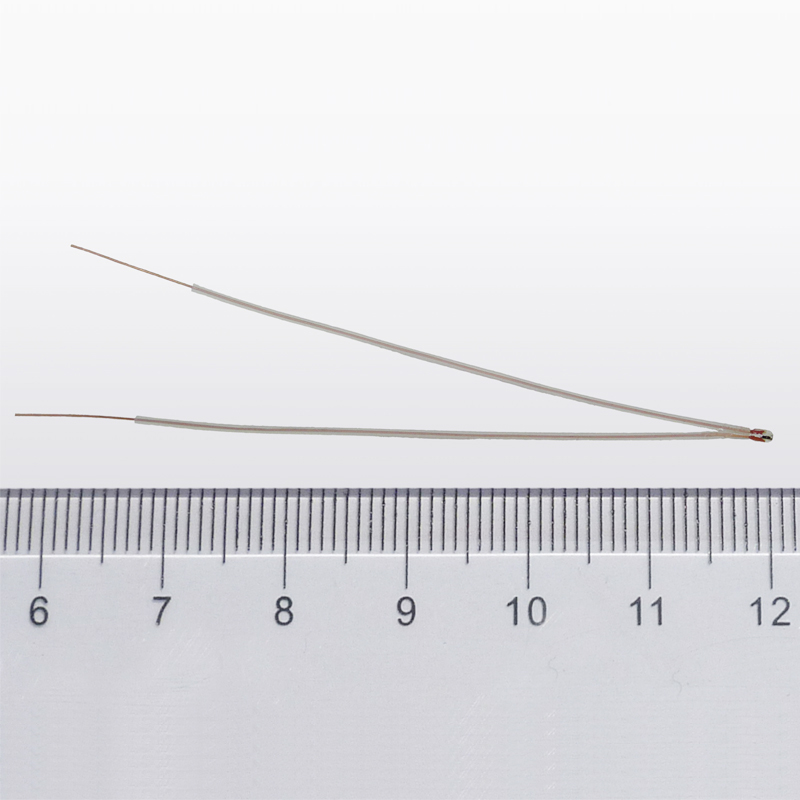

Click to View ATH100KR8T63 $3.70 $3.50 $3.30 $3.10 $2.90 14 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% 0.8 ± 0.1mm - 63 ± 3 Leads wtih plastic tubing
Click to View ATH100KR8T63S $3.90 $3.70 $3.50 $3.30 $3.10 45 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% 0.8 ± 0.1mm - 63 ± 3 Sealed

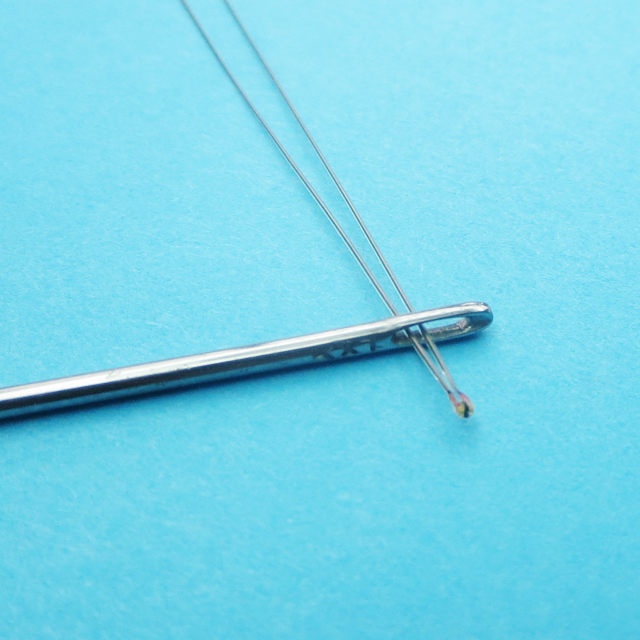

Click to View ATH10K1R0 $5.90 $5.70 $5.50 $5.30

$5.10

1870 buy now 1% 10K ± 1% 3478K ± 1% 3450K ± 1%
3492K ± 1%
0.95 ± 0.15 - 66.5 ± 3 Sealed
Click to View ATH10K1R25 $1.80 $1.60 $1.40 $1.20 $1.00 100 buy now 1% 10K ± 1% 3990K ± 1% - - 1.25 ± 0.03 - 70 ± 1 -
Click to View ATH10K1R25T70 $2.00 $1.80 $1.60 $1.40 $1.20 100 buy now 1% 10K ± 1% 3990K ± 1% - - 1.25 ± 0.03 - 70 ± 1 -
Click to View ATH10K1R25T70S $2.20 $2.00 $1.80 $1.60 $1.40 170 buy now 1% 10K ± 1% 3990K ± 1% - - 1.25 ± 0.03 - 70 ± 1 -

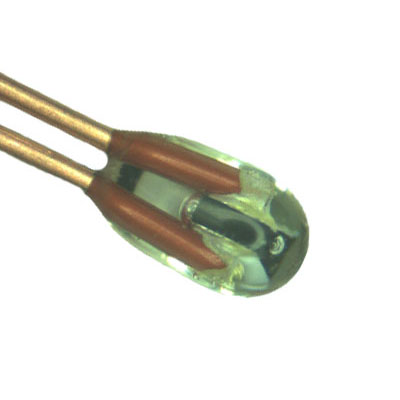

Click to View ATH100K1R25 $1.80 $1.60 $1.40 $1.20 $1.00 945 buy now 1% 100K ± 1% 3990K ± 1% - - 1.25 ± 0.2 - 70 ± 1 -

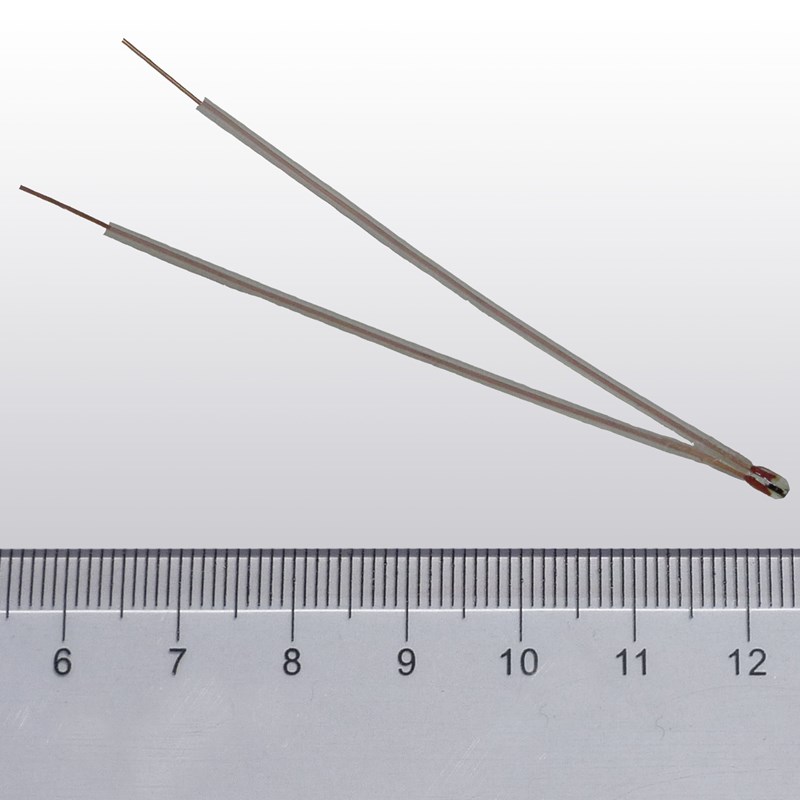

Click to View ATH100K1R25T70 $2.00 $1.80 $1.60 $1.40 $1.20 0 buy now 1% 100K ± 1% 3990K ± 1% - - 1.25 ± 0.2 - 70 ± 1 Leads wtih plastic tubing
Click to View ATH100K1R25T70S $2.20 $2.00 $1.80 $1.60 $1.40 10 buy now 1% 100K ± 1% 3990K ± 1% -

*

1.25 ± 0.2 - 70 ± 1 Sealed

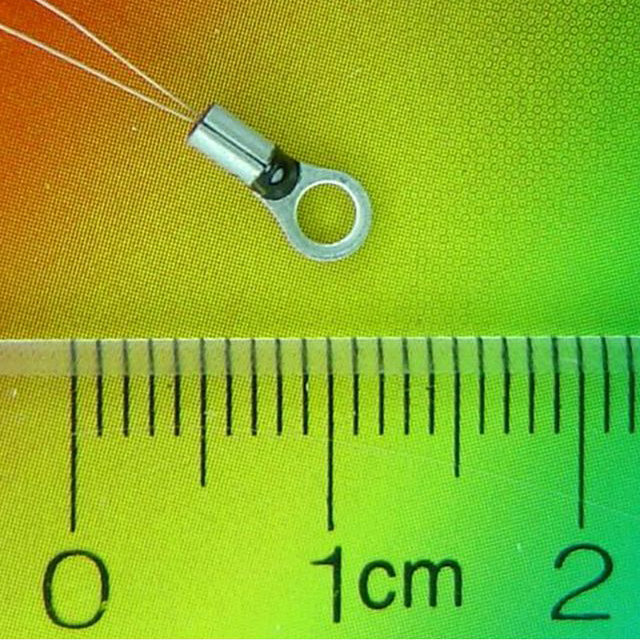

Click to View ATH10KBL2A
$3.50 $3.30 $3.10 $2.90 $2.70 22 buy now 1% 10K ± 1% 3478K ± 1% 3450K ± 1% 3492K ± 1% - - 65 ± 3 -

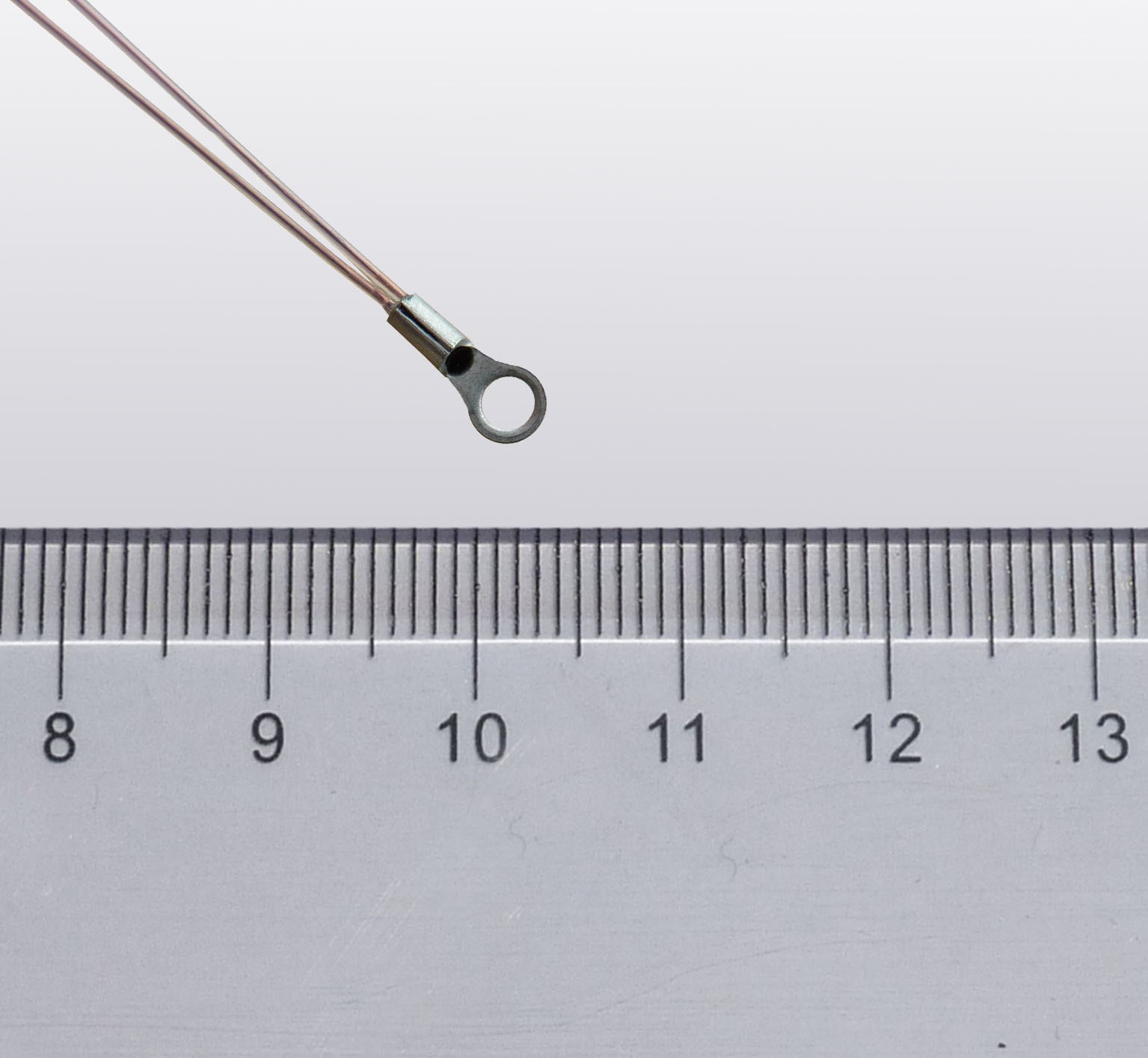

Click to View ATH10KBL2AT65 $3.70 $3.50 $3.30 $3.10 $2.90 52 buy now 1% 10K ± 1% 3478K ± 1% 3450K ± 1% 3492K ± 1% - - 65± 3 Leads wtih plastic tubing
Click to View ATH10KBL2AT65S $3.90 $3.70 $3.50 $3.30 $3.10 70 buy now 1% 10K ± 1% 3478K ± 1% 3450K ± 1% 3492K ± 1% - - 65 ± 3 Sealed

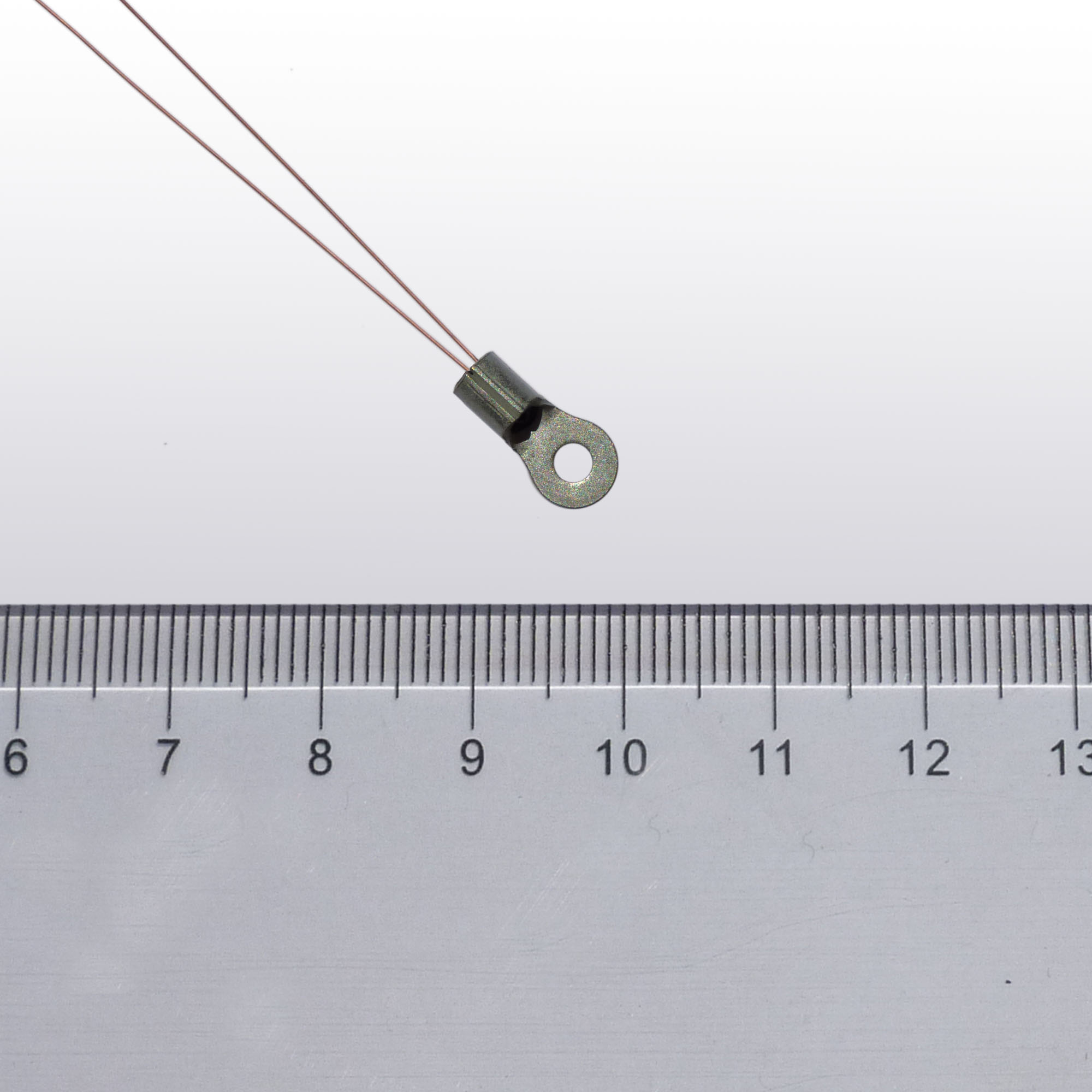

Click to View ATH10KL2B $1.80 $1.60 $1.40 $1.20 $1.00 27 buy now 1% 10K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 -
Click to View ATH10KL2BT70 $2.00 $1.80 $1.60 $1.40 $1.20 17 buy now 1% 10K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 Leads wtih plastic tubing
Click to View ATH10KL2BT70S $2.20 $2.00 $1.80 $160 $1.40 3 buy now 1% 10K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 Sealed

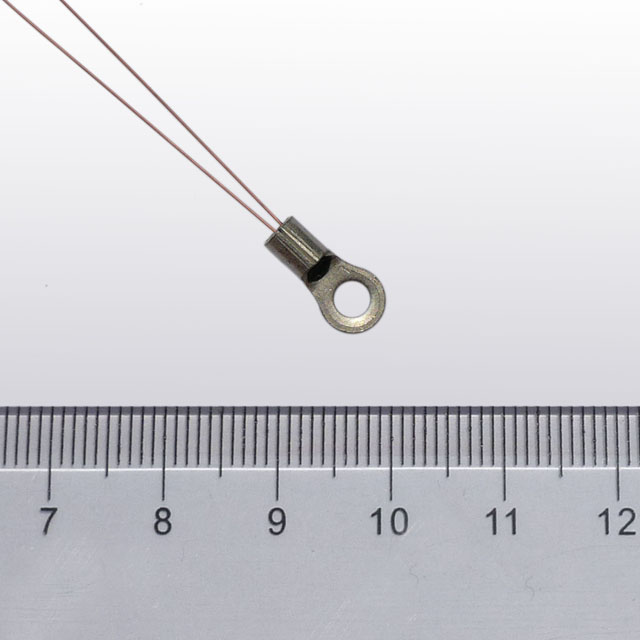

Click to View ATH10KL2C $1.80 $1.60 $1.40 $1.20 $1.00 1 buy now 1% 10K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 -

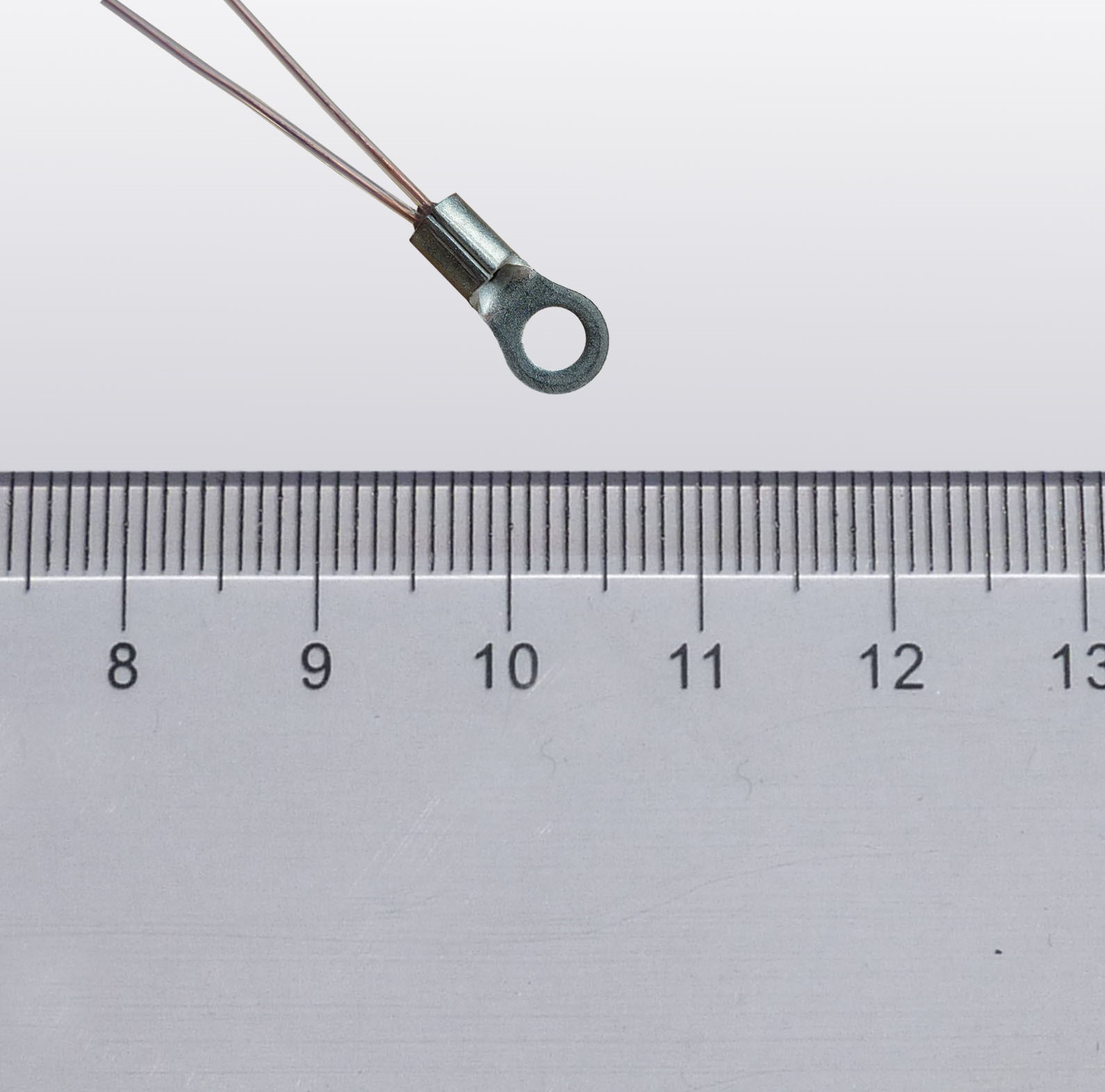

Click to View ATH10KL2CT70 $2.00 $1.80 $1.60 $1.40 $1.20 44 buy now 1% 10K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 Leads wtih plastic tubing
Click to View ATH10KL2CT70S $2.20 $2.00 $1.80 $1.60 $1.40 0 buy now 1% 10K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 Sealed

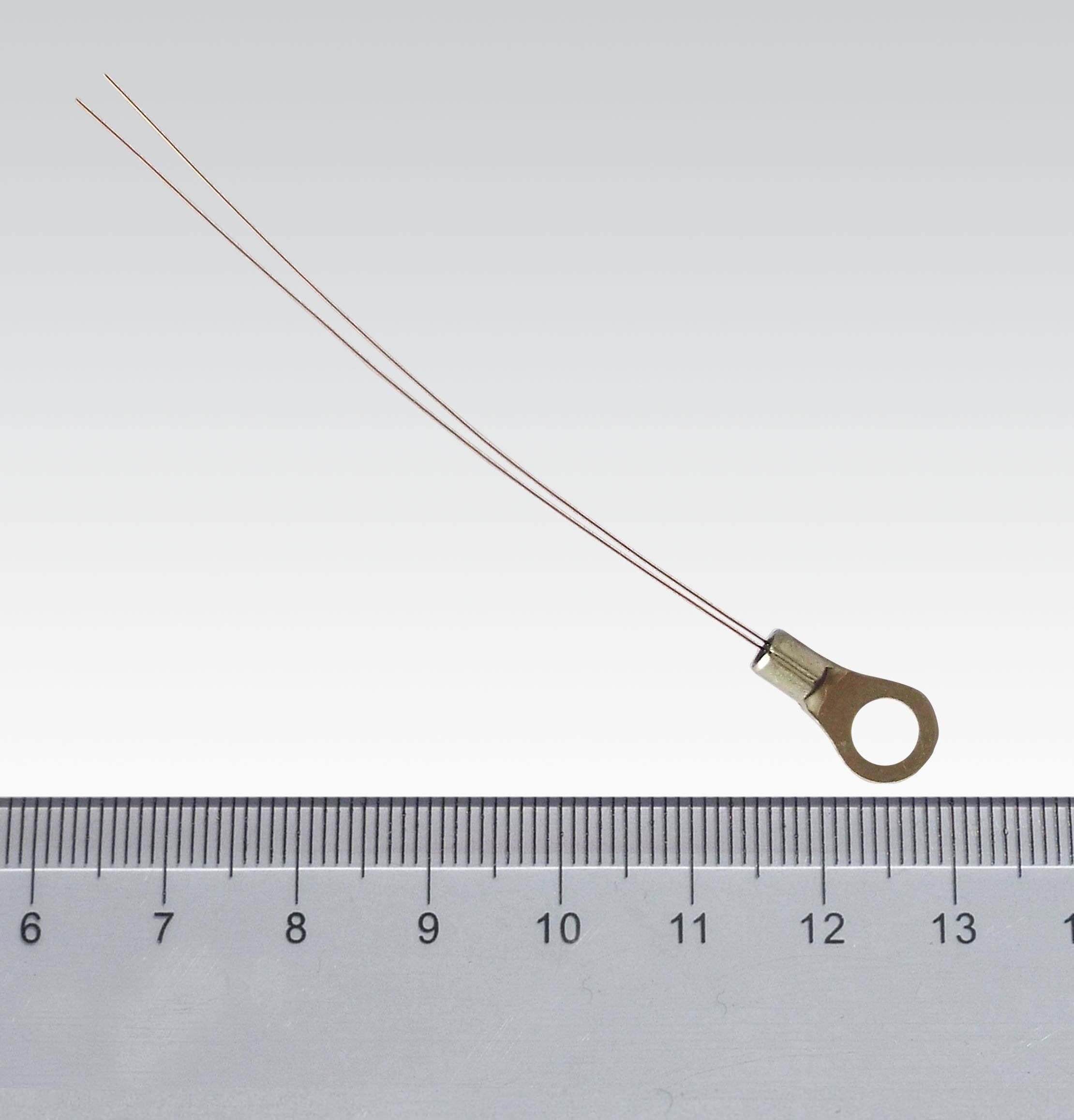

Click to View ATH10KL2D $1.80 $1.60 $1.40 $1.20 $1.00 0 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 -

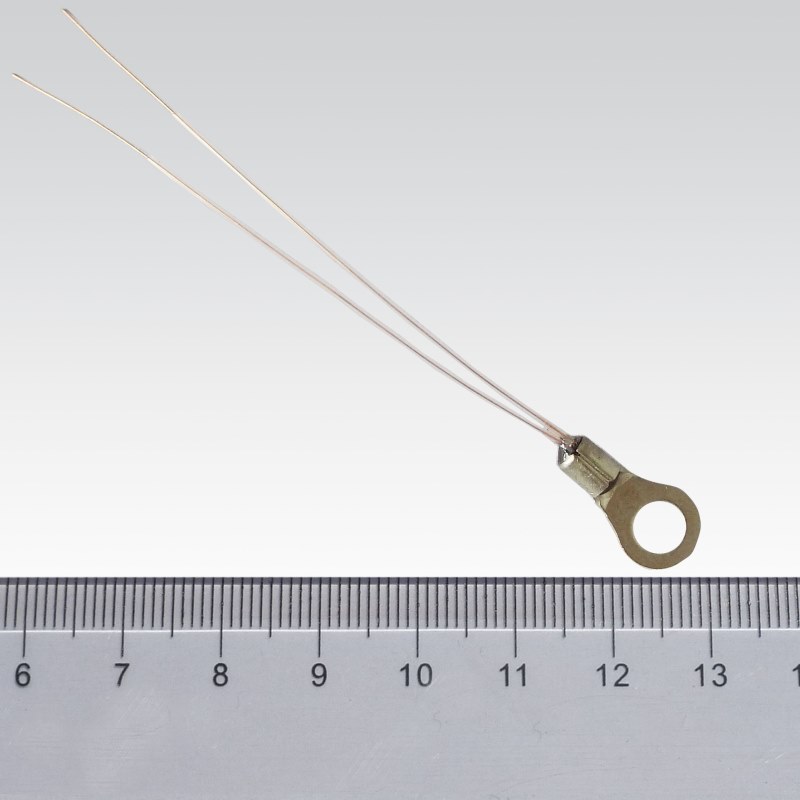

Click to View ATH10KL2DT70 $2.00 $1.80 $1.60 $1.40 $1.20 0 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 Leads wtih plastic tubing
Click to View ATH10KL2DT70S $2.20 $2.00 $1.80 $1.60 $1.40 0 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 Sealed

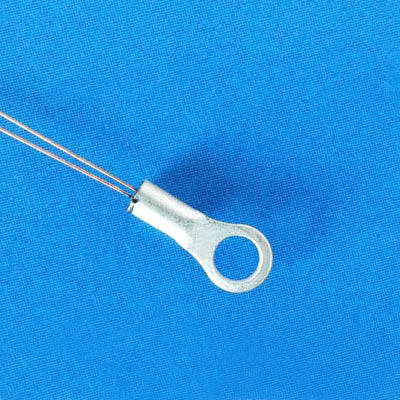

Click to View ATH100KL2A $3.50 $3.30 $3.10 $2.90 $2.70 21 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% - 2.4 ± 0.1 60 ± 3 -

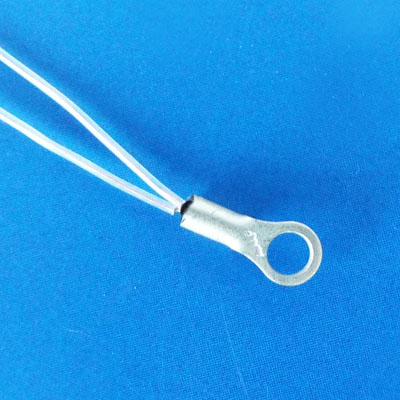

Click to View ATH100KL2AT63 $3.70 $3.50 $3.30 $3.10 $2.90 21 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% - 2.4 ± 0.1 60 ± 3 Leads wtih plastic tubing
Click to View ATH100KL2AT63S $3.90 $3.70 $3.50 $3.30 $3.10 9 buy now 1% 100K ± 1% 4066K ± 1% 4036K ± 1% 4085K ± 1% - 2.4 ± 0.1 60 ± 3 Sealed

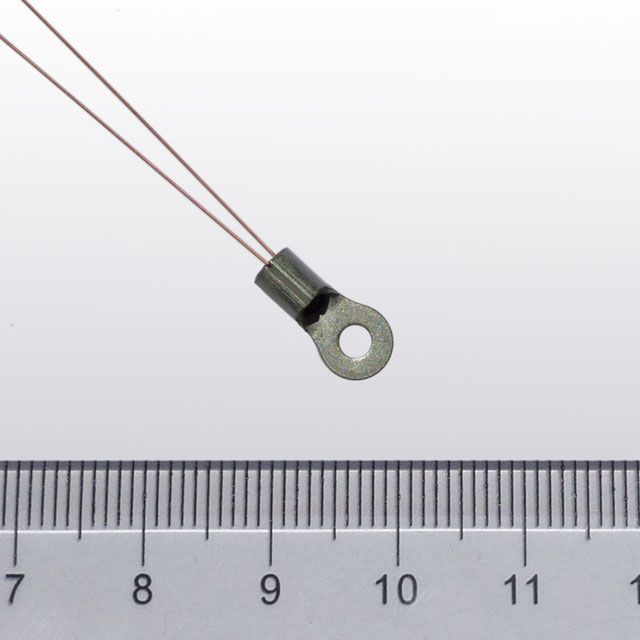

Click to View ATH100KL2B $1.80 $1.60 $1.40 $1.20 $1.00 23 buy now 1% 100K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 -

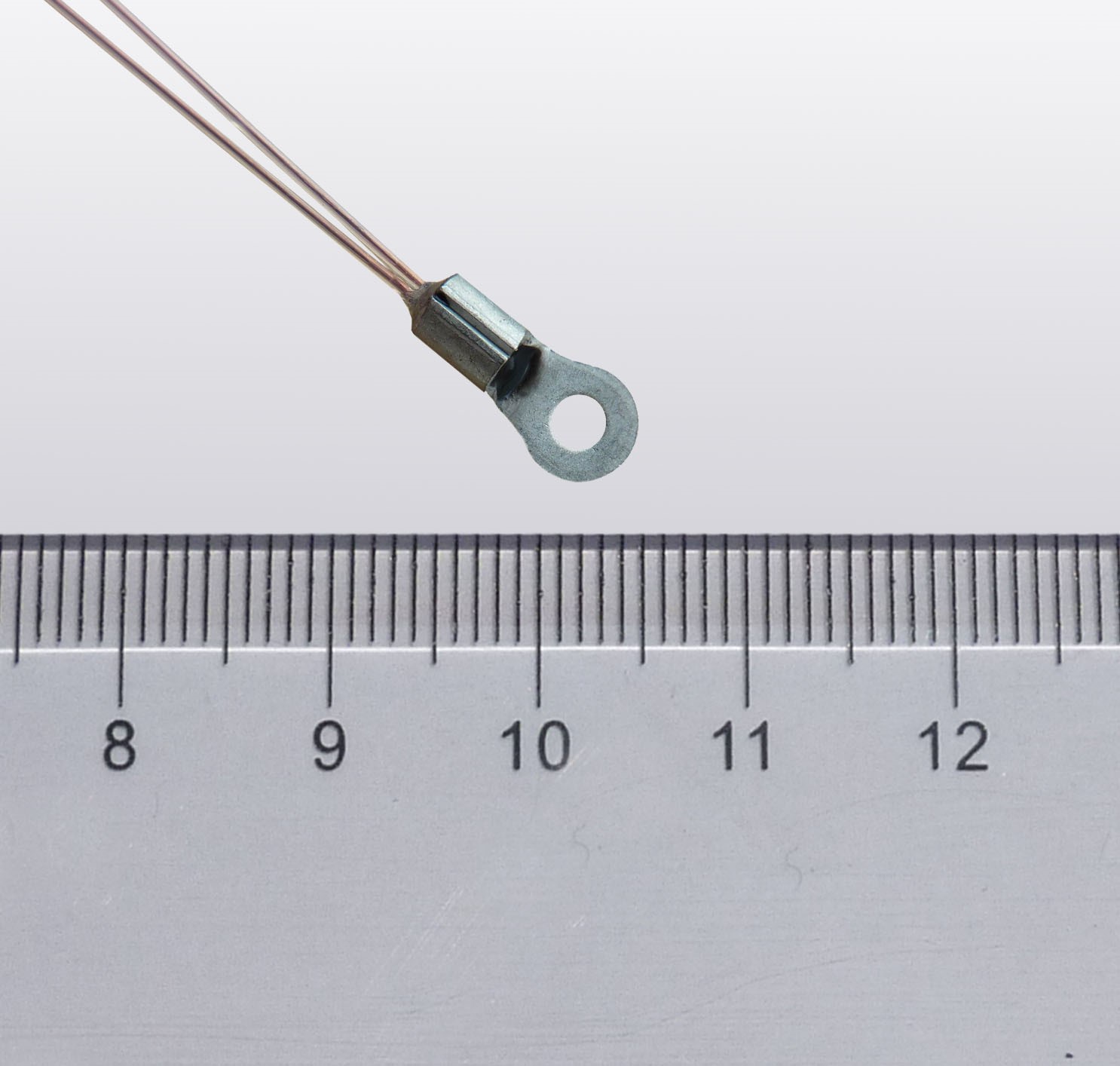

Click to View ATH100KL2BT70 $2.00 $1.80 $1.60 $1.40 $1.20 0 buy now 1% 100K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 Leads wtih plastic tubing
Click to View ATH100KL2BT70S $2.20 $2.00 $1.80 $1.60 $1.40 0 buy now 1% 100K ± 1% 3990K ± 1% - - - 2.18 ± 0.1 70 ± 1 Sealed

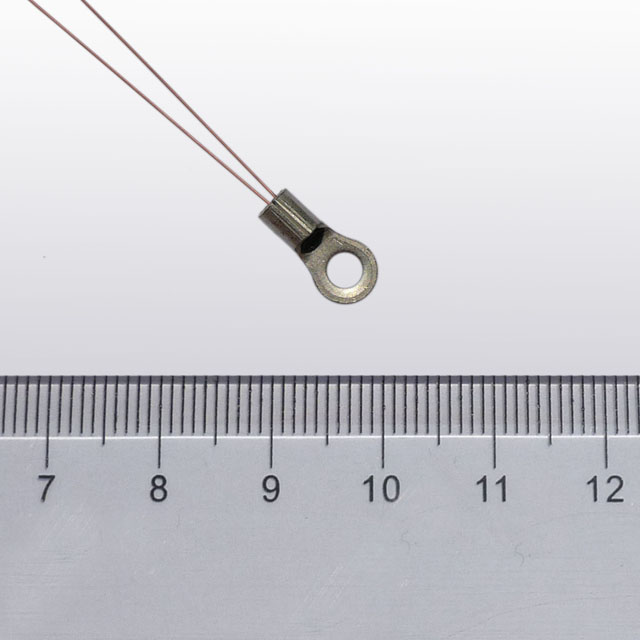

Click to View ATH100KL2C $1.80 $1.60 $1.40 $1.20 $1.00 110 buy now 1% 100K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 -
Click to View ATH100KL2CT70 $2.00 $1.80 $1.60 $1.40 $1.20 0 buy now 1% 100K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 Leads wtih plastic tubing
Click to View ATH100KL2CT70S $2.20 $2.00 $1.80 $1.60 $1.40 0 buy now 1% 100K ± 1% 3990K ± 1% - - - 3.02 ± 0.1 70 ± 1 Sealed

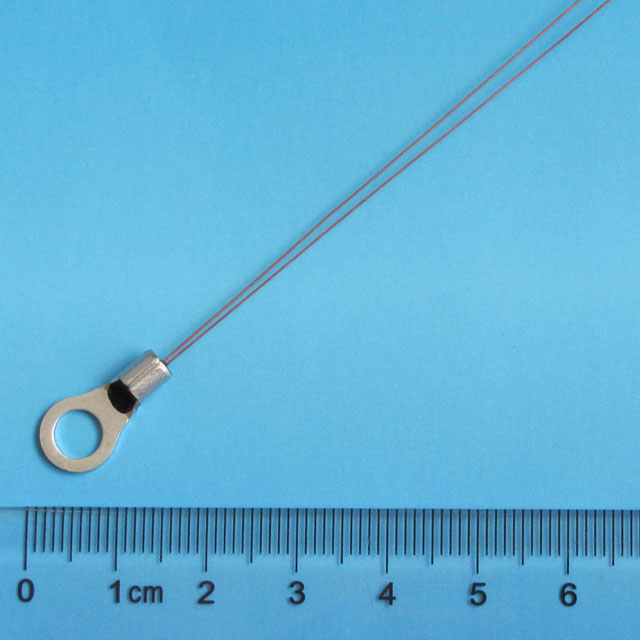

Click to View ATH1R38M0.1%
200CL5R3
$3.50 $3.30 $3.10 $2.90 $2.70 2 buy now 0.1% 1388.1K ± 0.1% 107.66K - - - 5.3 ± 0.1 70 ± 1 -

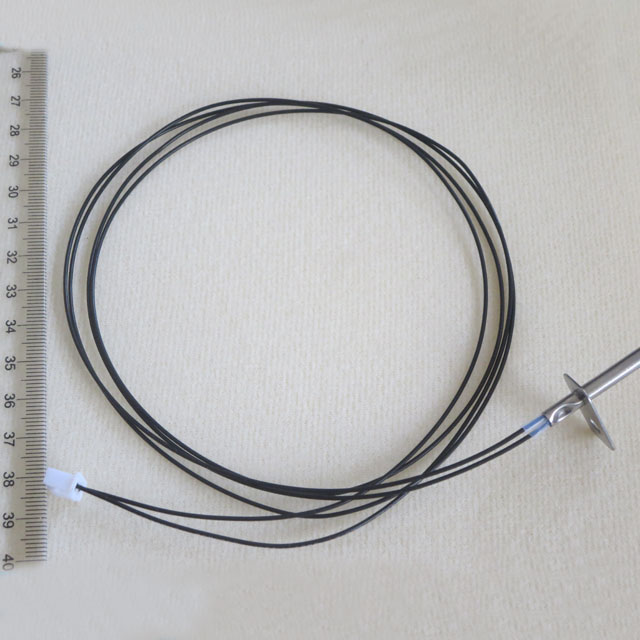

Click to View ATSC230K-100 $3.00 $2.80 $2.60 $2.40 $2.20 50 buy now 1% 231.5 ± 16.9K - - - - - - -
Click to View ATH10KHN4 $3.50 $3.30 $3.10 $2.90 $2.70 27 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 -
Click to View ATH10KHN6 $3.50 $3.30 $3.10 $2.90 $2.70 5 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 -
Click to View ATH10KHN10 $3.50 $3.30 $3.10 $2.90 $2.70 10 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 -
Click to View ATH10KHN12 $3.50 $3.30 $3.10 $2.90 $2.70 10 buy now 1% 10k ± 1% 3990k ± 1% - - - - 70 ± 1 -
