High Voltage Amplifier/ Piezo Driver AHVA1KV7A

Part Number 1-5 6-10 11-19 ≥21 stock Buy Now Datasheet
AHVA1KV7A $9600 $9500 $9400 $9300 0 buy now Buy Now Datasheet

High Voltage Amplifier


High Efficiency
High Output Current: 7A
High Output Voltage Stability
Linear Modulation of Output Voltage
Wide Range of Capacitance Load: 2µF to 20µF
Over-current and Short Circuit Protections
Displays for Output Voltage and Current
Low Cost

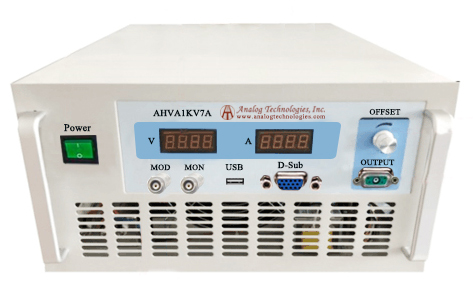

This high voltage amplifier, AHVA1KV7A, can be used for driving Piezo and other high voltage loads.


The piezo driver, AHVA1KV7A is a bench-top high voltage amplifier/piezo driver for amplifying an analog input voltage into a high voltage high current output. AHVA1KV7A has a built-in high voltage high current ACDC converter which converts the 240VAC input voltage into an output voltage adjustable from 0 to 1kVDC. There is an LED light to indicate if the amplifier is working properly. We also have one piezo driver module, which can drive the large Piezo at a high speed rate and it is widely popular among our customers.
