ATMC102U is a kind of
mini USB color camera, which has been widely used for medical care, microscope, video conference, video phone, multimedia computer toys, industrial pipe and bottom inspection, CCTV safety supervision and other applications.

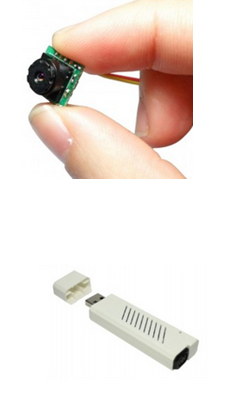

There are two parts in this camera: a camera head and an USB video converter.The former has analog video / audio output signal and it is easy for the latter to connect to the computer, which can convert analog signals into digital signals.Between the two parts, there are 4 metal wires.The camera head has all of circuits, which can generate standard NTSC or PAL video / audio signals.The image sensor has a built-in color filter array, used to generate color signals.
Features
Small installation hole: 2.2mm
Compact size: 11×11×7 (mm)
Plug and play: no need to drive
High sensitivity: 0.6 lux/F1.2
Progressive scanning
High signal to noise ratio: > 50dB
Weak current: < 100mA@5V camera head 2
High resolution: 640 * 480
Analog video / audio output
Through the USB port output
If you want to know more, please feel free to contact us.
