24V Input High Voltage Power Supply

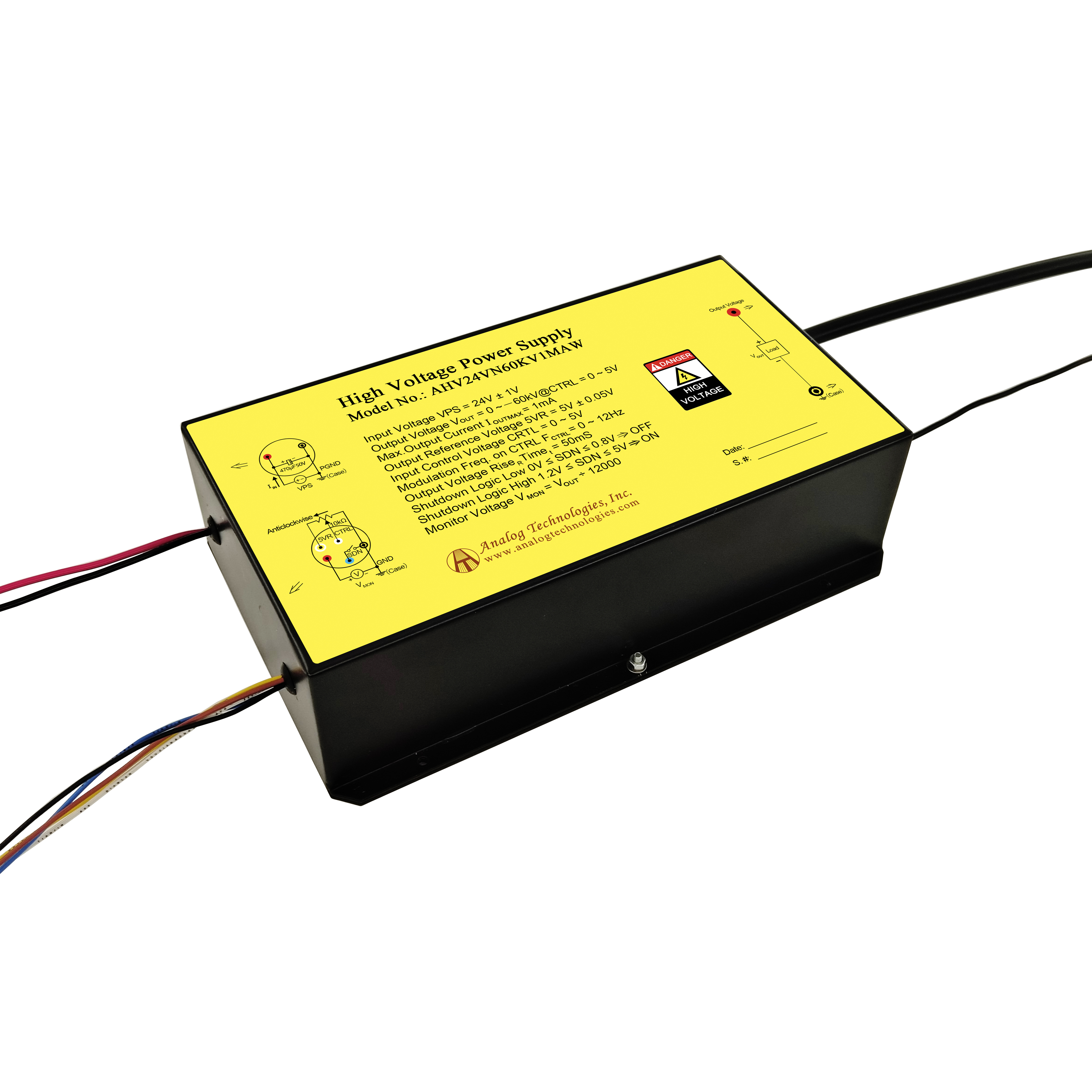

Click to View

High Voltage Power Supply Video Presentation

FEATURES

High precision
Full modulation range on output voltage
Linear regulation
Shutdown
Input control voltage: 0~5V

High voltage power supply is widely used in industry, agriculture, national defense, scientific research and other fields including: X-ray machine high voltage power supply, laser high voltage power supply, spectral analysis high voltage power supply, nondestructive inspection high voltage power supply, semiconductor manufacturing equipment high voltage power supply, capillary electrophoresis high voltage power supply, nondestructive detection high voltage power supply, particles injection high voltage power supply in semiconductor technology, physical vapor phase deposition high voltage power supply, nanolithography high voltage power supply.

We can design and manufacture customized products based on customers' requirements.

Selection Guide for DC-DC High Voltage Power Supply.

Part Number	Output Voltage	Max. Output Current	Input Voltage	Unit Price	Stock Info	Dimension (mm)
AHV24V500V1MAW	500V	1mA	23V ~ 25V	$105	0	82×55×28
AHV24V500V2MAW	500V	2mA	23V ~ 25V	$115	0	82×55×28
AHV24V500V5MAW	500V	5mA	23V ~ 25V	$123	0	82×55×28
AHV24V500V10MAW	500V	10mA	23V ~ 25V	$135	0	82×55×28
AHV24V500V20MAW	500V	20mA	23V ~ 25V	$169	0	82×55×28
AHV24V500V50MAW	500V	50mA	23V ~ 25V	$189	0	82×55×28
AHV24V600V30MAW	600V	30mA	23V ~ 25V	$149	2	82×55×28
AHV24V1KV1MAW	1kV	1mA	23V ~ 25V	$115	5	82×55×28
AHV24V1KV2MAW	1kV	2mA	23V ~ 25V	$121	0	82×55×28
AHV24V1KV3MAW	1kV	3mA	23V ~ 25V	$126	0	82×55×28
AHV24V1KV5MAW	1kV	5mA	23V ~ 25V	$135	0	82×55×28
AHV24V1KV10MAW	1kV	10mA	23V ~ 25V	$159	1	82×55×28

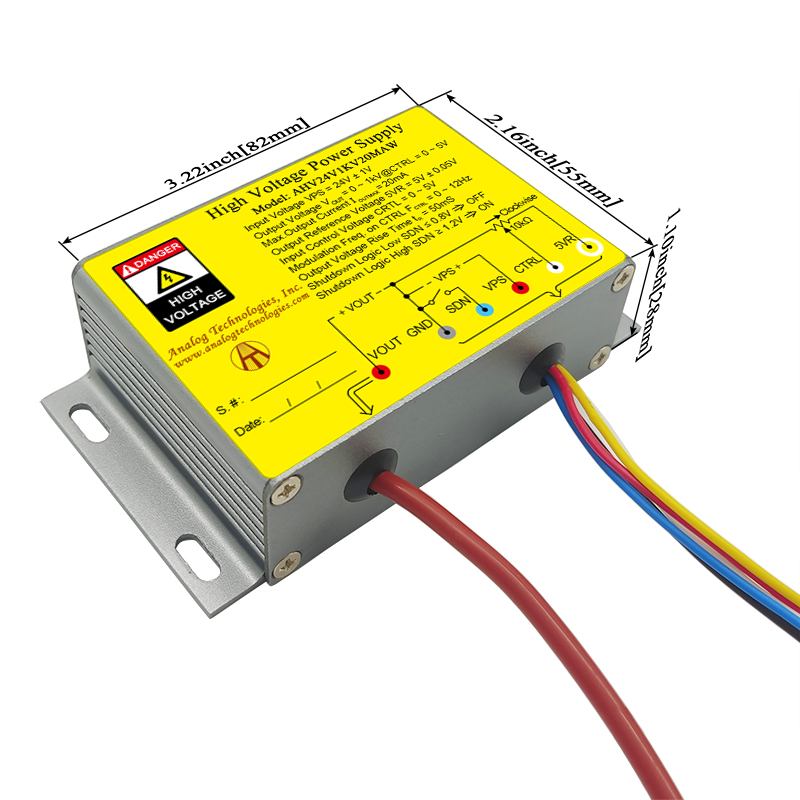

AHV24V1KV20MAW	1kV	20mA	23V ~ 25V	$199	3	82×55×28
AHV24V1500V1MAW	1500V	1mA	23V ~ 25V	$117	0	82×55×28
AHV24V1500V2MAW	1500V	2mA	23V ~ 25V	$126	0	82×55×28
AHV24V1500V3MAW	1500V	3mA	23V ~ 25V	$130	0	82×55×28
AHV24V1500V5MAW	1500V	5mA	23V ~ 25V	$143	0	82×55×28
AHV24V1500V10MAW	1500V	10mA	23V ~ 25V	$179	0	82×55×28
AHV24V2KV1MAW	2kV	1mA	23V ~ 25V	$119	2	82×55×28
AHV24V2KV2MAW	2kV	2mA	23V ~ 25V	$135	1	82×55×28
AHV24V2KV3MAW	2kV	3mA	23V ~ 25V	$149	0	82×55×28
AHV24V2KV5MAW	2kV	5mA	23V ~ 25V	$159	0	82×55×28
AHV24V2KV10MAW	2kV	10mA	23V ~ 25V	$199	2	82×55×28
AHV24V2500V1MAW	2500V	1mA	23V ~ 25V	$133	0	82×55×28
AHV24V2500V3MAW	2500V	3mA	23V ~ 25V	$153	0	82×55×28
AHV24V2500V5MAW	2500V	5mA	23V ~ 25V	$161	0	82×55×28
AHV24V3KV1MAW	3kV	1mA	23V ~ 25V	$126	2	82×55×28
AHV24V3KV3MAW	3kV	3mA	23V ~ 25V	$149	0	82×55×28
AHV24V3KV5MAW	3kV	5mA	23V ~ 25V	$169	0	82×55×28
AHV24V4KV1MAW	4kV	1mA	23V ~ 25V	$130	6	82×55×28
AHV24V4KV5MAW	4kV	5mA	23V ~ 25V	$179	2	82×55×28
AHV24V5KV1MAW	5kV	1mA	23V ~ 25V	$135	1	82×55×28
AHV24V5KV2MAW	5kV	2mA	23V ~ 25V	$155	3	82×55×28
AHV24V5KV10MAW	5kV	10mA	23V ~ 25V	$279	1	140×100×55

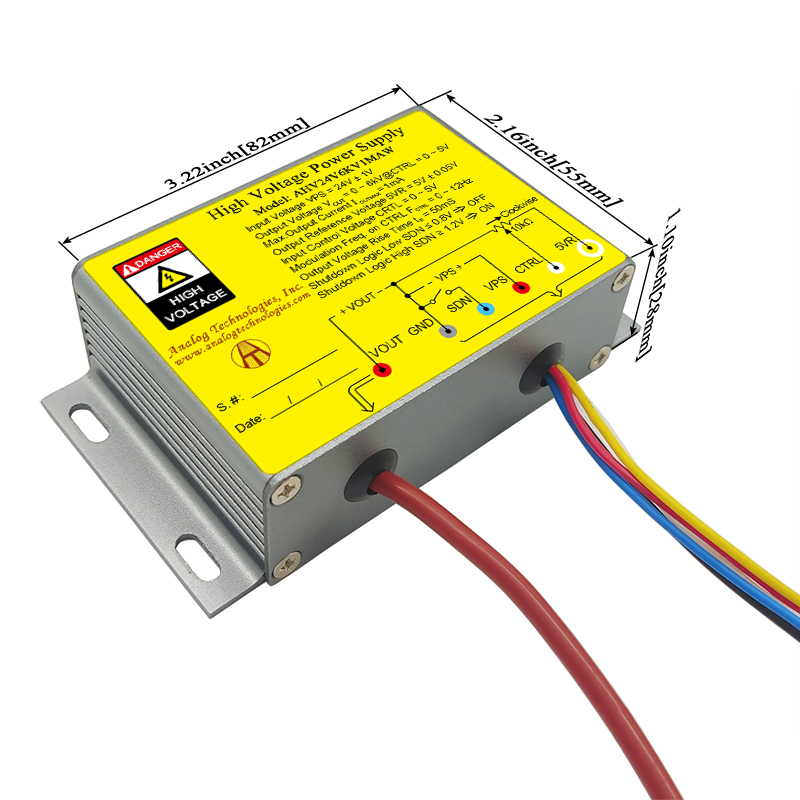

AHV24V6KV1MAW	6kV	1mA	23V ~ 25V	$150	6	82×55×28
ALSHV24V6600V10MAW	6600V	10mA	23V ~ 25V	$569	0	140×100×55
AHV24V7KV1MAW	7kV	1mA	23V ~ 25V	$159	3	82×55×28
AHV24V8KV1MAW	8kV	1mA	23V ~ 25V	$169	3	82×55×28
AHV24V9KV1MAW	9kV	1mA	23V ~ 25V	$179	4	82×55×28
AHV24V10KVR6MAW	10kV	0.6mA	23V ~ 25V	$179	0	82×55×28
AHV24V10KV1MAW	10kV	1mA	23V ~ 25V	$189	2	82×55×28
AHV24V10KV2MAW	10kV	2mA	23V ~ 25V	$359	0	100×70×30
AHV24V10KV5MAW	10kV	5mA	23V ~ 25V	$599	1	140×100×55
AHV24V15KVR5MAW	15kV	0.5mA	23V ~ 25V	$219	0	100×70×30
AHV24V15KV1MAW	15kV	1mA	23V ~ 25V	$259	2	140×100×55
AHV24V20KV1MAW	20kV	1mA	23V ~ 25V	$339	1	140×100×55
AHV24V25KV1MAW	25kV	1mA	23V ~ 25V	$419	2	140×100×55
AHV24V30KVR5MAW	30kV	0.5mA	23V ~ 25V	$419	2	140×100×55
AHV24V30KV1MAW	30kV	1mA	23V ~ 25V	$489	4	140×100×55
AHV24V30KV2R5MAW	30kV	2.5mA	23V ~ 25V	$799	0	140×100×55
AHV24V40KV1MAW	40kV	1mA	23V ~ 25V	$509	2	170×90×55
AHV24V60KV1MAW	60kV	1mA	23V ~ 25V	$799	0	220×120×62
AHV24VN500V1MAW	−500V	1mA	23V ~ 25V	$105	0	82×55×28
AHV24VN500V2MAW	−500V	2mA	23V ~ 25V	$115	0	82×55×28
AHV24VN500V5MAW	−500V	5mA	23V ~ 25V	$123	0	82×55×28
AHV24VN500V10MAW	−500V	10mA	23V ~ 25V	$135	0	82×55×28
AHV24VN500V20MAW	−500V	20mA	23V ~ 25V	$169	0	82×55×28
AHV24VN500V50MAW	−500V	50mA	23V ~ 25V	$189	0	82×55×28
AHV24VN1KV1MAW	−1kV	1mA	23V ~ 25V	$115	3	82×55×28
AHV24VN1KV2MAW	−1kV	2mA	23V ~ 25V	$121	0	82×55×28
AHV24VN1KV3MAW	−1kV	3mA	23V ~ 25V	$126	0	82×55×28
AHV24VN1KV5MAW	−1kV	5mA	23V ~ 25V	$135	0	82×55×28
AHV24VN1KV10MAW	−1kV	10mA	23V ~ 25V	$159	0	82×55×28
AHV24VN1KV20MAW	−1kV	20mA	23V ~ 25V	$199	0	82×55×28
AHV24VN1500V1MAW	−1500V	1mA	23V ~ 25V	$117	0	82×55×28
AHV24VN1500V2MAW	−1500V	2mA	23V ~ 25V	$126	0	82×55×28
AHV24VN1500V3MAW	−1500V	3mA	23V ~ 25V	$130	0	82×55×28
AHV24VN1500V5MAW	−1500V	5mA	23V ~ 25V	$143	0	82×55×28
AHV24VN1500V10MAW	−1500V	10mA	23V ~ 25V	$179	0	82×55×28
AHV24VN2KV1MAW	−2kV	1mA	23V ~ 25V	$119	3	82×55×28
AHV24VN2KV2MAW	−2kV	2mA	23V ~ 25V	$135	0	82×55×28
AHV24VN2KV3MAW	−2kV	3mA	23V ~ 25V	$149	0	82×55×28
AHV24VN2KV5MAW	−2kV	5mA	23V ~ 25V	$159	0	82×55×28
AHV24VN2KV10MAW	−2kV	10mA	23V ~ 25V	$199	0	82×55×28
AHV24VN2500V1MAW	−2500V	1mA	23V ~ 25V	$133	0	82×55×28
AHV24VN2500V3MAW	−2500V	3mA	23V ~ 25V	$153	0	82×55×28
AHV24VN2500V5MAW	−2500V	5mA	23V ~ 25V	$161	0	82×55×28
AHV24VN3KV1MAW	−3kV	1mA	23V ~ 25V	$126	4	82×55×28
AHV24VN4KV1MAW	−4kV	1mA	23V ~ 25V	$130	2	82×55×28
AHV24VN4KV5MAW	−4kV	5mA	23V ~ 25V	$179	2	82×55×28
AHV24VN5KV1MAW	−5kV	1mA	23V ~ 25V	$135	2	82×55×28
AHV24VN6KV1MAW	−6kV	1mA	23V ~ 25V	$140	2	82×55×28
AHV24VN7KV1MAW	−7kV	1mA	23V ~ 25V	$159	3	82×55×28
AHV24VN8KV1MAW	−8kV	1mA	23V ~ 25V	$169	3	82×55×28
AHV24VN9KV1MAW	−9kV	1mA	23V ~ 25V	$179	3	82×55×28
AHV24VN10KV1MAW	−10kV	1mA	23V ~ 25V	$189	12	82×55×28
AHV24VN10KV2MAW	−10kV	2mA	23V ~ 25V	$359	1	100×70×30
AHV24VN10KV5MAW	−10kV	5mA	23V ~ 25V	$599	1	140×100×55
AHV24VN15KV1MAW	−15kV	1mA	23V ~ 25V	$259	2	140×100×55
AHV24VN20KV1MAW	−20kV	1mA	23V ~ 25V	$339	3	140×100×55
AHV24VN25KV1MAW	−25kV	1mA	23V ~ 25V	$419	1	140×100×55
AHV24VN30KVR5MAW	−30kV	0.5mA	23V ~ 25V	$419	3	140×100×55
AHV24VN30KV1MAW	−30kV	1mA	23V ~ 25V	$489	2	140×100×55
AHV24VN40KV1MAW	−40kV	1mA	23V ~ 25V	$509	0	170×100×55
AHV24VN30KV2R5MAW	−30kV	2.5mA	23V ~ 25V	$799	0	140×100×55
AECHV24VP2KV1MAW	0~2kV	1mA	23 ~ 25V	$109	0	82×55×28
AGLHV24VP30KVR5MAW	0~30kV	0.5mA	23 ~ 25V	$419	0	82×55×28
