Digital High Voltage Constant Current Laser Driver

This series of digital laser drivres have all the valuable and important features, but are often difficult to achieve simultaneously such as: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 6mVp-p ripple voltage at 500kHz), wide modulation bandwidth, and small size. The wide output voltage range, 0.1VVPS ~ 0.8VVPS, allows driving one or multiple serial laser diodes at the same time, for up to 5A and 15A of well controlled current at high efficiency. The extremely low noise between DC ~ 10kHz and low DC current drift make it ideal for driving diode pumped single mode laser diodes to achieve mode-hop-free and narrow optical wavelength drift, thus, long coherent length.

Click to View

Digital display for parameter setting and monitoring
Wide input voltage range: 10V ~27V
Wide output voltage range: 0.1VVPS to 0.8VVPS (input voltage)
High current capability: 5A
High efficiency: ≥90% (IOUT=5A @ VLDA=20V&VVPS=27V)
Wide modulation bandwidth: DC ~10kHz
Compact size: 68.5×61×16.6 (mm)
Dual independent current set ports: LISH and LISL
Direct digital modulation control: PCN

Part Number Datasheet With
Pricelist
Buy Now
ALDD28V5A401 Laser

Drivers ALDD28V5A401 buy now buy now

Click to View

Digital display for parameter setting and monitoring
Wide input voltage range: 10V ~27V
Wide output voltage range: 0.1VVPS to 0.8VVPS (input voltage)
High current capability: 15A
High efficiency: ≥90%
Wide modulation bandwidth: DC ~10kHz
Compact size: 68.5×61×16.6 (mm)
Dual independent current set ports: LISH and LISL
Direct digital modulation control: PCN

Part Number Datasheet With
Pricelist
Buy Now

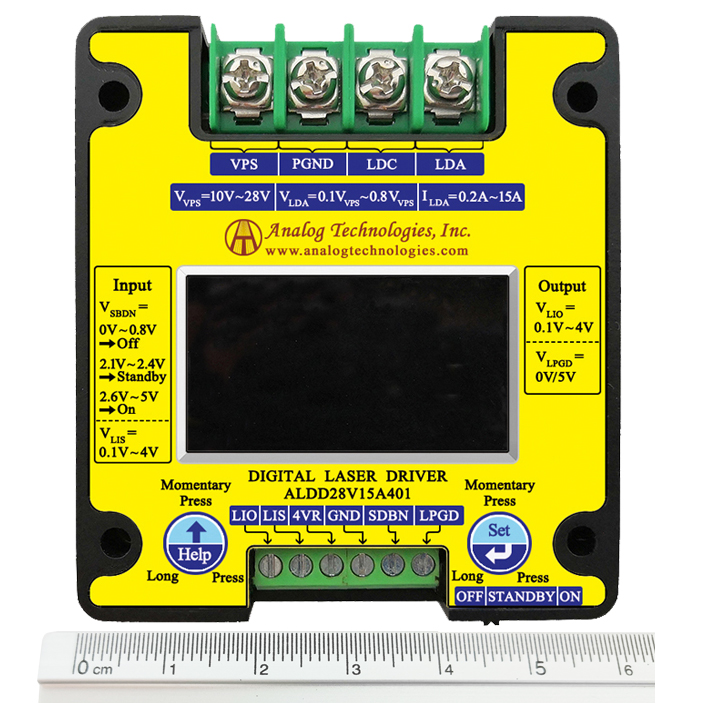

ALDD28V15A401 Laser

Drivers ALDD28V5A401 buy now buy now
