Home > Products > Thermistors > High Stability Minature Thermistor

ATH10KHN12

Part Number	1-9 PCs	10-49 PCs	50-199 PCs	200-499 PCs	≥500 PCs		Buy Now	Datasheet
ATH10KHN12	$2.5	$2.2	$1.9	$1.6	$1.3	10

Part Number	Price	Buy Now	Datasheet
ATH10KHN12	$2.5

ATH10KL2B

FEATURES

Glass Encapsulated for Long Term Stability & Reliability

High Resistance Accuracy: 1%

Wide Temp. Range: -40°C to 270°C

Packaged in Extra Small Ring Lug

100 % Lead (Pb)-free and RoHS Compliant

APPLICATIONS:

Temperature Sensing

Temperature Detection

Transformers

Electric Motors

Air Sensors

DESCRIPTION:

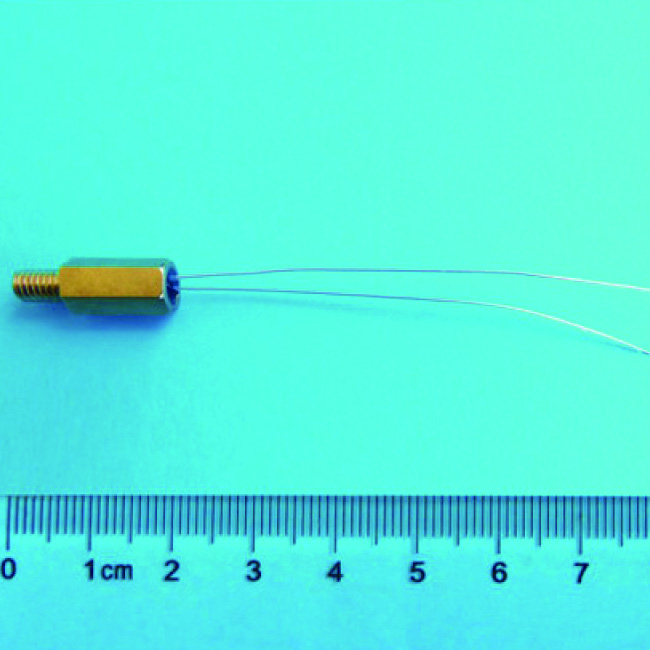

The ATH10KHN12 is a thermistor assembly with threaded hex nut. The ATH10KHN12 has bear leads coated with copper. ATH10KHN12 thermistor assembly presents long term stability, high reliability and wide temperature range, compact size and short response time. Handle the thermistor with care, do not use metal tools to hold the thermistor body with excessive force, otherwise, the glass body may crack, affecting its accuracy and stability.

Note: Free samples of thermistors at most 3 can be given after application and its approval.
Free sample application will need the follow information: contact name, company name, company website, company email, work phone number, and potential usuage volume.
