Home > Products > Thermistors > High Stability Minature Thermistor

ATH10KL2D Series Thermistors

Part Number	1-9 PCs	10-49 PCs	50-199 PCs	200-499 PCs	≥500 PCs
ATH10KL2D	$1.80	$1.60	$1.40	$1.20	$1.00
ATH10KL2DT70	$2.00	$1.80	$1.60	$1.40	$1.20
ATH10KL2DT70S	$2.20	$2.00	$1.80	$1.60	$1.40

Part Number	Price	Buy Now	Datasheet
ATH10KL2D	$1.80
ATH10KL2DT70	$2.00
ATH10KL2DT70S	$2.20

FEATURES

Glass Encapsulated for Long Term Stability & Reliability

High Resistance Accuracy: 1%

Wide Temp. Range: -40°C to 270°C

Packaged in Extra Small Ring Lug

100 % Lead (Pb)-free and RoHS Compliant

APPLICATIONS:

Temperature Sensing

Temperature Detection

Transformers

Electric Motors

Air Sensors

DESCRIPTION:

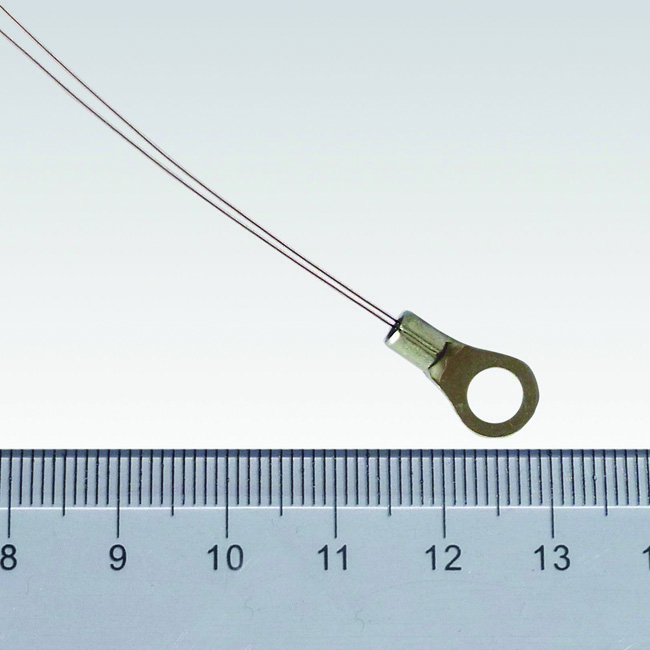

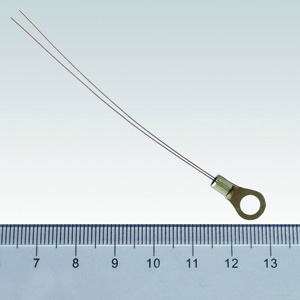

The ATH10KL2D is a thermistor assembly with a glass encapsulated thermistor packaged in an extra compact ring lug. The ATH10KL2D series thermistor consists of three versions, ATH10KL2D, ATH10KL2DT70 and ATH10KL2DT70S. The ATH10KL2D has bare leads coated with copper, the ATH10KL2DT70S has the leads covered by high temperature plastic tubing and sealed by epoxy, while the ATH10KL2DT70 is the non-sealed version. Comparing with conventional assemblies containing epoxy encapsulated thermistors, ATH10KL2D series thermistor presents higher long term stability, higher reliability and wider temperature range. In addition, it has a small size and short response time. The ATH10KL2D series thermistor can be used to measure the temperatures of laser diodes, optical components, etc., with high accuracy and long term stability.
